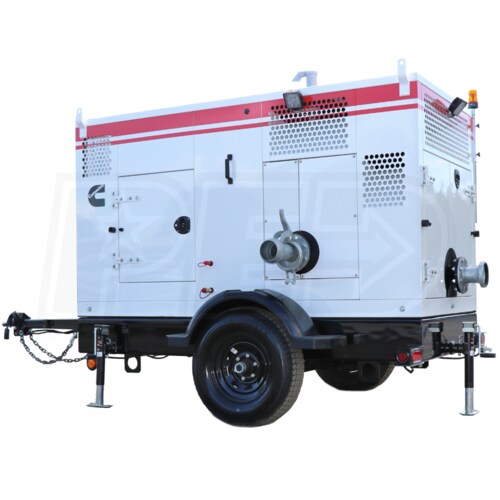

Cummins CP2600D4E - 2600 GPM (6") Trailer Mounted Electric Start Diesel Trash Pump w/ Sound Attenuated Enclosure

Model:

CP2600D4E

Write A Review
$69,899.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order

Cummins CP2600D4E - 2600 GPM (6
Cummins CP2600D4E - 2600 GPM (6") Trailer Mounted Electric Start Diesel Trash Pump w/ Sound Attenuated Enclosure
Model: CP2600D4E
$69,899.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

6 Inch

Style

Trash

GPM

2600 Gallons

Engine

Cummins

  • Cummins 6" Enclosed Trailer Mounted Diesel Water Pump
  • EPA-certified, fully-integrated powerful pump system
  • For water and waste water applications
  • Ideal for rental, construction, oil and gas, mining, and agricultural markets
  • Sound-Attenuated Enclosure
  • Decrease noise levels to 67 dBa @ 30'
  • Cummins QSF 2.8 Diesel Engine (Tier 4 Final)
  • High Pressure Common Rail (HPCR) fuel injection
  • Provides excellent torque and fuel efficiency
  • Enviroprime System®
  • Fully-automatic, dry priming design; No Product Blow-By
  • Automatic priming and re-priming up to 28 feet of vertical lift
  • 2-Vane, Non-Clogging, Enclosed, Class 65-45-12 Ductile Iron Impeller
  • Passes up to 3" diameter spherical solids
  • Tungsten Carbide / Silicon Carbide Mechanical Seal
  • Dry-running, grease lubricated design for increased wear life
  • Ductile Iron, Class 30 Pump Housing
  • Gear driven design helps to reduce wear of parts
  • Provides greater resistance to shock loading to extend pump life
  • Digital Control Panel
  • Auto start capability; 65' Floats (Included), Pressure or Level Transducer
  • Audible Alarm & Beacon Light
  • Pump Monitoring - Ability To Integrate w/ SCADA & Telemetry Compatible
  • Pre-programmed with Cummins fault codes
  • 100-Gallon Diesel Fuel Tank w/ Electronic Fuel Gauge
  • Provides a minimum operating time of 26 Hours @ 2200 RPM
  • 3" Clean out ports and auxiliary fuel tank compatible
  • Heavy-Duty Steel Trailer w/ Flip-Up Tow Bar
  • Electric brakes (7-Pin Plug) w/ breakaway switch; Pintle Hitch & Safety Chains
  • (3) Flip-Up Stabilizing Jacks; Side Step Fenders; LED Tail Lights & Marker Lights
  • Lockable fuel cap, float box and battery box; Document Box & Tie Downs
  • Two-Year, 2000-Hour Base Warranty
  • Supported by Cummins 24/7 distributor network
  • *Requires Loading Dock or Forklift For Delivery*
California residents see
Warning: This product can expose you to chemicals including Diesel engine exhaust which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

CP2600D4E
specs product image PID-143139
General Information
Product Category
Water Pump
Pump
Gallons Per Minute
2600 Gallons
Inlet Diameter
6 Inch
Outlet Diameter
6 Inch
Self Priming
Yes
Pump Head Material
Cast Iron
Quick Clean Out
Yes
Mechanical Seal Material
Tungsten Carbide
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
3 inch
Handles Solids
Yes
Suction Head
28 Feet
Total Head Lift
150 Feet
Submersible
No
Engine
Engine Brand
Cummins
Starting System
12-Volt Key Start
Low Oil Shutdown
Yes
Continuous Operation
Yes
Horsepower
74 hp
Fuel Tank Size
100 Gallons
Run Time
28-45 Hours
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Overview
Product Category
Water Pump
Weight
4800 Pounds
Certification
Final Tier 4
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
151 Inches
Product Width
75 Inches
Product Height
89 Inches
Accessories
Float Switch
Yes
Lifting Hook
Yes
Wheel Kit
Yes
