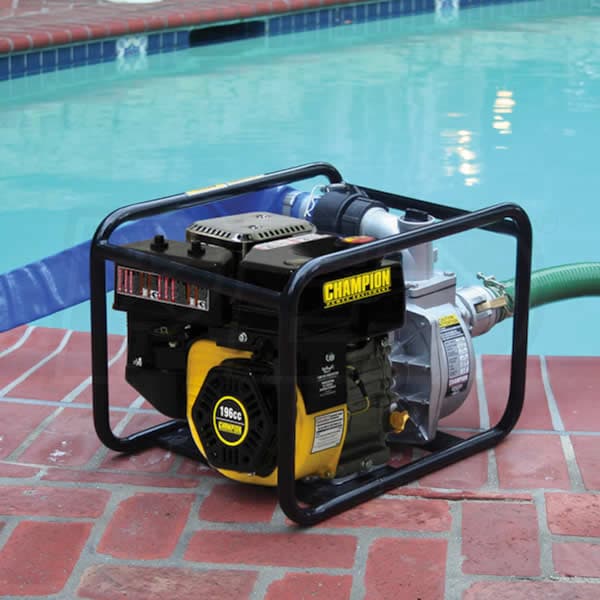

Champion 66520 - 158 GPM (2") Semi-Trash Water Pump Package

Champion 66520 - 158 GPM (2") Semi-Trash Water Pump Package
Model: 66520
$279.99
In-Stock
Ships Thursday, Jul 19th
Free Shipping &
Tax-Free (Except IL)
In-Stock Free ShippingNo Sales Tax* (Except IL)$279.99Buy Now
No Sales Tax* (Except IL)$279.99Visit Site
Sales Tax Extra $299.99Visit Site
In-Stock
Ships Thursday, Jul 19th
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 85
    Reviews
  • 4
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
2"
Style
Semi-Trash Pumps
GPM
158
Gallons
Engine
Inlet Size
2"
Style
Semi-Trash
GPM
158 Gallons
Engine
Champion
Features
Features
  • Complete Pump Package In A Box
  • Everything you need to get the water moving
  • 2" Semi-Trash Pump
  • Able to pass solids up to 9/16" diameter
  • 196cc OHV Champion Engine
  • Provides plenty of power to get the water moving
  • Low-Oil Shutdown
  • Provides added protection to extend the life of the pump
  • Aluminum Pump Housing w/ Cast Iron Volute & Impeller
  • Extends the life of the pump
  • Requires initial priming to operate
  • Full Tubular Wrap-Around Frame
  • Heavy-duty steel frame protects the pump and motor on all sides

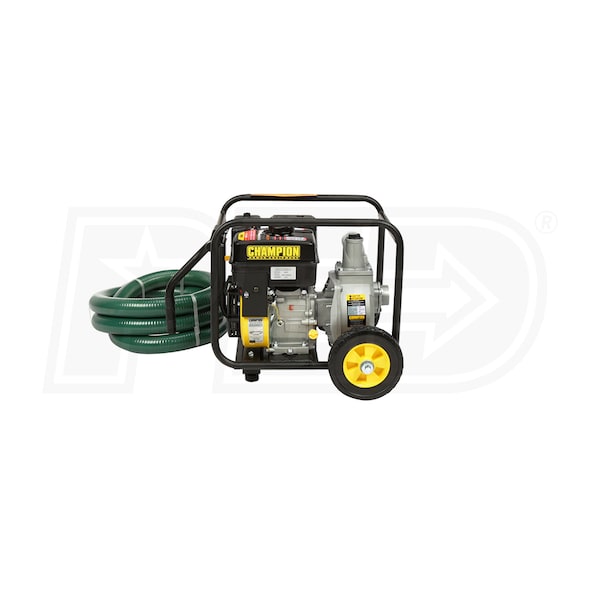

  • 6" Wheel Kit & Fold-Down Handle
  • Makes transporting and positioning as simple as possible

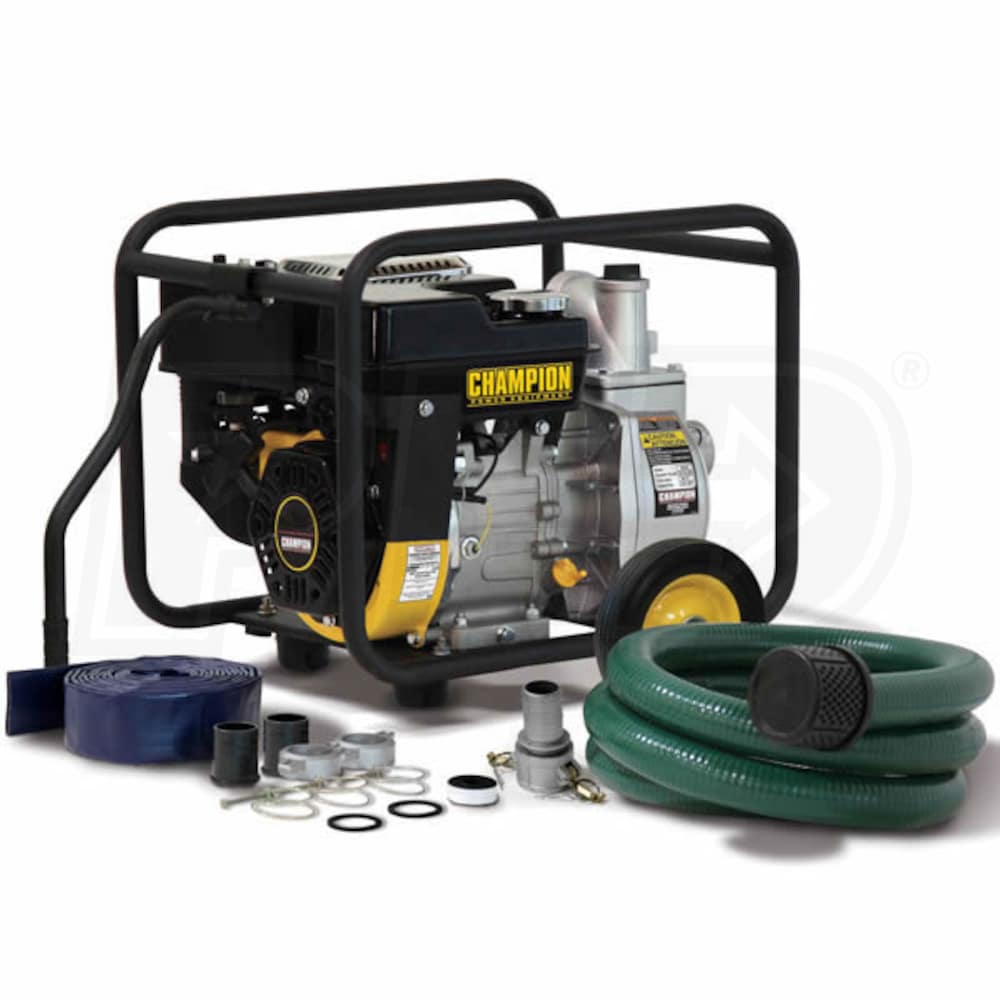

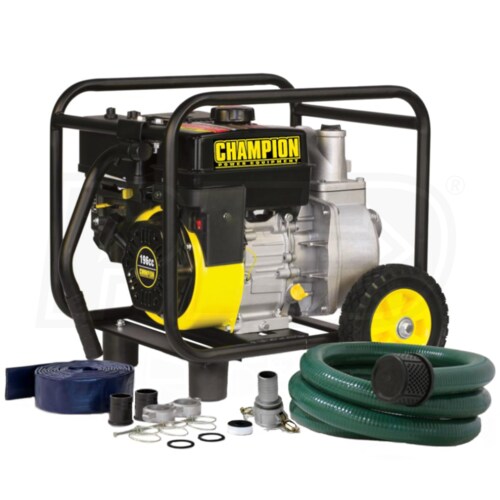

  • Includes:
  • (1) 12' Suction Hose w/ Strainer
  • (1) 20' Discharge Hose
  • Clamps, Adapters & Fittings
  • 2-Year Limited Warranty
Specifications
Engine
Engine Brand
Champion
Starting System
Recoil Start
Low Oil Shutdown
Yes
Horsepower
6.5 hp
CC
196 cc
Fuel Tank Size
1.06 Gallons
Consumer Engine Warranty
2 Years
Pump
Gallons Per Minute
158 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.55 inch
Suction Head
26 Feet
Total Head Lift
98 Feet
Submersible
No
Accessories
Tool Kit
No
Strainer
Yes
Hose Couplings
Yes
Hose Bands
Yes
Wheel Kit
Yes
Overview
Made in USA
No
Weight
82 Pounds
Product Length
20.2 Inches
Product Width
18.7 Inches
Product Height
18.2 Inches
Consumer Warranty
2 Years
UPC
896682665206

Inlet Size
2"
Style
Semi-Trash Pumps
GPM
158
Gallons
Engine
Inlet Size
2"
Style
Semi-Trash
GPM
158 Gallons
Engine
Champion
Features
Features
  • Complete Pump Package In A Box
  • Everything you need to get the water moving
  • 2" Semi-Trash Pump
  • Able to pass solids up to 9/16" diameter
  • 196cc OHV Champion Engine
  • Provides plenty of power to get the water moving
  • Low-Oil Shutdown
  • Provides added protection to extend the life of the pump
  • Aluminum Pump Housing w/ Cast Iron Volute & Impeller
  • Extends the life of the pump
  • Requires initial priming to operate
  • Full Tubular Wrap-Around Frame
  • Heavy-duty steel frame protects the pump and motor on all sides
  • 6" Wheel Kit & Fold-Down Handle
  • Makes transporting and positioning as simple as possible
  • Includes:
  • (1) 12' Suction Hose w/ Strainer
  • (1) 20' Discharge Hose
  • Clamps, Adapters & Fittings
  • 2-Year Limited Warranty
Specifications
Engine
Engine Brand
Champion
Starting System
Recoil Start
Low Oil Shutdown
Yes
Horsepower
6.5 hp
CC
196 cc
Fuel Tank Size
1.06 Gallons
Consumer Engine Warranty
2 Years
Pump
Gallons Per Minute
158 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.55 inch
Suction Head
26 Feet
Total Head Lift
98 Feet
Submersible
No
Accessories
Tool Kit
No
Strainer
Yes
Hose Couplings
Yes
Hose Bands
Yes
Wheel Kit
Yes
Overview
Made in USA
No
Weight
82 Pounds
Product Length
20.2 Inches
Product Width
18.7 Inches
Product Height
18.2 Inches
Consumer Warranty
2 Years
UPC
896682665206
Product Specs
+
Specifications
Engine
Engine Brand
Champion
Starting System
Recoil Start
Low Oil Shutdown
Yes
Horsepower
6.5 hp
CC
196 cc
Fuel Tank Size
1.06 Gallons
Consumer Engine Warranty
2 Years
Pump
Gallons Per Minute
158 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.55 inch
Suction Head
26 Feet
Total Head Lift
98 Feet
Submersible
No
Accessories
Tool Kit
No
Strainer
Yes
Hose Couplings
Yes
Hose Bands
Yes
Wheel Kit
Yes
Overview
Made in USA
No
Weight
82 Pounds
Product Length
20.2 Inches
Product Width
18.7 Inches
Product Height
18.2 Inches
Consumer Warranty
2 Years
UPC
896682665206
Reviews
(85)
+
Champion 66520 Reviews & Ratings
89% of Reviewers Recommend This Product
Product Q&A
(4)
+
Search Product Q&A's Answered by Jim, the Water Pump Expert
icon-social-fb1
+
How long will it run on a tank of gas?
Brent
from Alabama
November 08, 2016
Answer
That's a hard question to answer Brent and there really isn't a way to gauge it. Run times are based on how easy or how hard the engine is running. If you're pumping a short distance with minimal head lift, you may see about 2 to 3 hours of run time, but if you're pumping very long distances and requiring a lot of lift, that may dwindle to 60 - 90 minutes of run time. You might equate it to how you drive your car? If you accelerate fast and brake the same and often, your gas mileage suffers. It's the same with any gas powered piece of equipment. The harder you work it, the less run time you will realize.
If you have any other questions, please let me know.
+
Will this pump work to remove pond muck from a lake bottom? .
Mike B
from Michigan
July 13, 2016
Answer
No.
Your only option for pumping out pond muck or sludge, would be a DIAPHRAGM PUMP. These pumps can handle a thicker consistency but are limited as to how high and how far they can pump. due to the added weight of the pumping material.
If you have any other questions, please let me know.
+
Is this pump suitable for irrigation?
Tim Lakey
from Oregon
July 02, 2016
Answer
Tim,

Thank you for your interest in Water Pumps Direct. Before I can really make an educated suggestion on what pump you would need for your application, I would need to know the following specifications and requirements:

Depth of your well-

Standing Water Level-

Well Recovery Rate or Pumping Water Level-

GPM & PSI Requirements-

Total pumping distance including any elevation variance-

Number of Sprinkler Heads (if zoned, per zone) And Their Individual GPM & PSI Requirements (if applicable)-

Total Distance from The Pump to The Furthest Sprinkler and Any Elevation Variance (if applicable)-

If you can supply this information, I'll be happy to assist you further.
+
Hi Jim Is it okay to have the input 2 inch in and reduce the output to a 1 1/2? that would probably increase the PSI a little bit more too, right? or do I have to match both input and output with the same size hose? Thank you.
Marc D
from Minnesota
January 22, 2014
Answer
It is always recommended that you use the same diameter hose/piping as the suction and discharge ports on the pump. While it is sometimes necessary to reduce that diameter, it is NOT recommended that you do so by more than one size. In this case, 1-1/2" hose or piping would be the maximum reduction, While you may see an increased pressure due to the reduced piping, the pump will also see an increased backpressure on the pump. The more you reduce the hose/piping diameter, the more you increase this backpressure AND increase premature pump failure that would NOT be covered under warranty.
Recommended Accessories
+
Expert Recommended Accessories Hand Picked By Our Expert Jim
icon-social-fb1
Required Accessories Add All Required
Optional Accessories
How-To Articles
+
Manuals
+


×

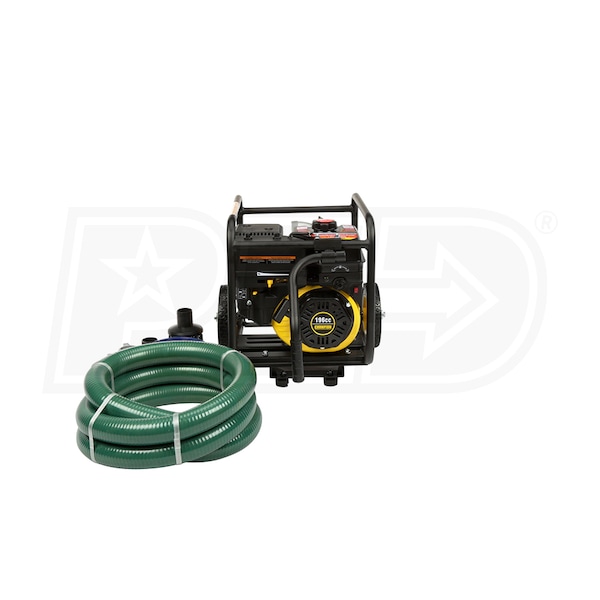

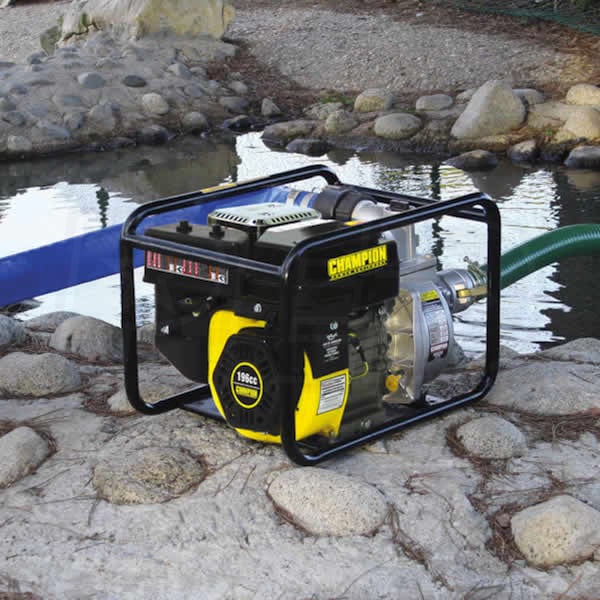

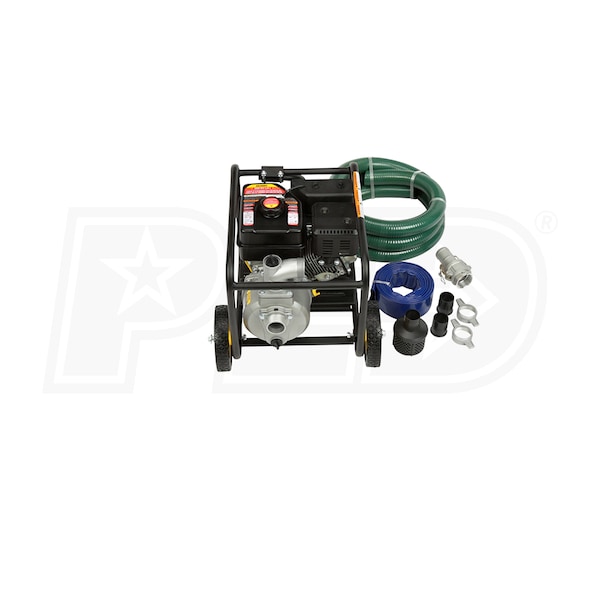

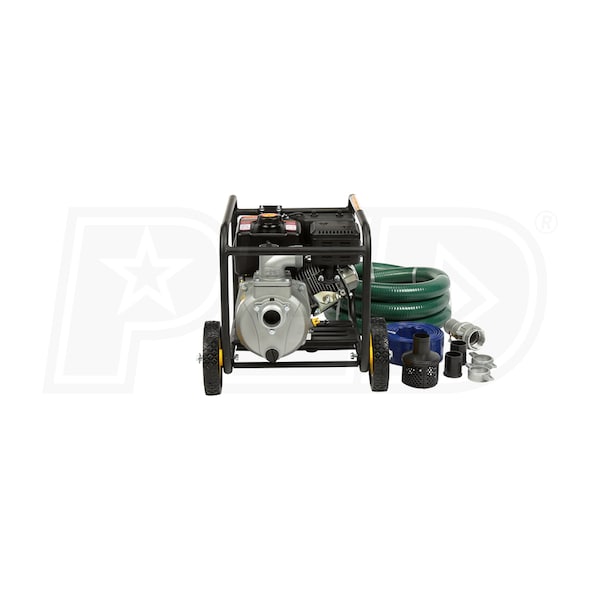

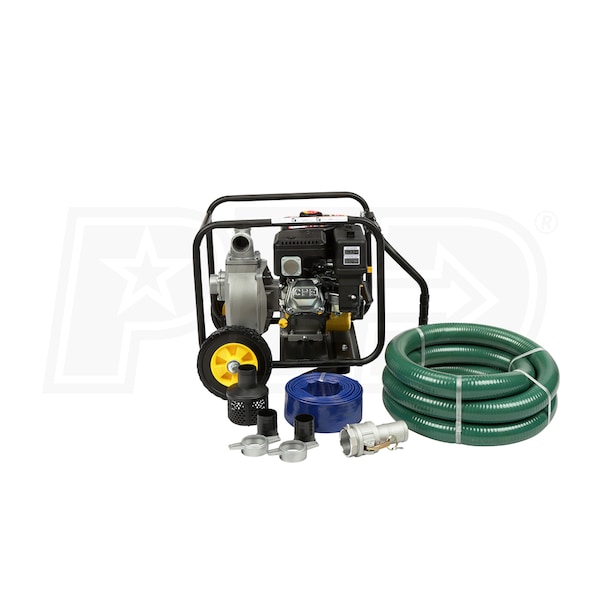

Champion 66520 - 158 GPM (2") Semi-Trash Water Pump Package
Champion 66520
+
Reset View
Champion 66520
Champion 66520
Champion 66520
Champion 66520
Champion 66520
Champion 66520
Champion 66520
×

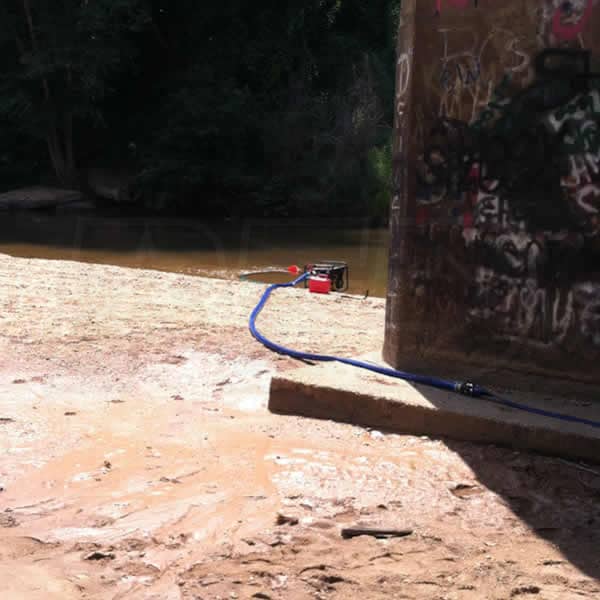

Customer Review Images
