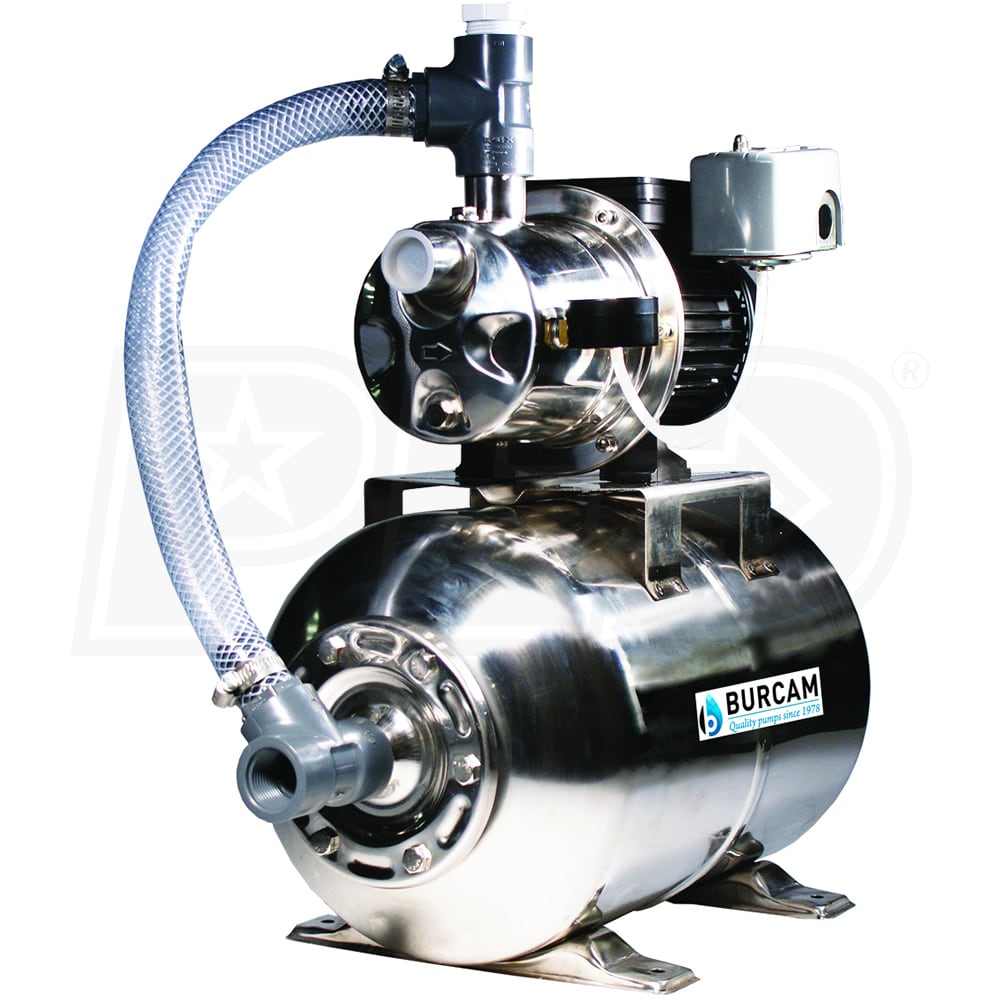

Burcam Pumps 16 GPM 3/4 HP Stainless Steel Shallow Well Jet Pump w/ 6.6 Gal. Stainless Steel Tank
Model:
506547SS
+
Share This Product
Features
Inlet Size
1"
Style
Shallow Well
GPM
16.4 Gallons
- 3/4 HP Shallow Well Jet Pump System
- Ideal for use in pumping depths of 25' or less
- 115/230V TEFC Motor
- Totally enclosed, bearing to bearing
- Thermal & Overload Protection
- Provides added safety to protect your investment
- Stainless Steel Pump Body, Shaft & Rotary Mechanical Seal
- High quality components for years of reliable operation
- Continuous Duty Capacitor
- Eliminates starting wear
- 6.6 Gallon Stainless Steel Air Pressure Tank
- No water-air contact, provides rust-free operation
- No water-tank contact, eliminates seeping
- No water-logging, eliminates the need for air volume controls
- Noryl Impeller & Injector
- Provides high performance & long life
- 2-Year Warranty
California residents see
Warning: This product can expose you to chemicals including Isoprene which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
506547SS
Motor
Voltage
120/240 Volt
Running Amps
4.5
Pump
Gallons Per Minute
16.4 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Housing Material
Stainless Steel
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
70
Submersible
No
Engine
Continuous Operation
Yes
Oil-Cooled
No
Shaft Seal
Stainless Steel
Horsepower
0.75 hp
Overview
Weight
24 Pounds
Consumer Warranty
2 Years
Product Length
18 Inches
Product Width
11 Inches
Product Height
21.5 Inches
UPC
772910065478
Reviews
(9)
Burcam 506547SS Reviews & Ratings
Product Q&A
(2)
Product Questions
Answered by Jim, the Water Pump Expert
Question
+−
Does this pump come wired, ready to plug in, and have a pressure regulator switch?
Herb
from Maine
March 08, 2017
Answer
This pump system does need to be hard-wired. The wiring directions are listed on page 6 of the PUMP MANUAL. It does include a 30/50 pressure switch which is wired into the pump and tank.
Was this answer helpful?
Yes
1
No
0
Question
+−
Are the tanks that come with the pump, pre-charged type or just a tank?
Chris B
from New York
April 06, 2014
Answer
Thank you for your interest in Water Pumps Direct. The tanks that are included with the shallow well pumps are all pressurized holding ranks.
Was this answer helpful?
Yes
1
No
0
