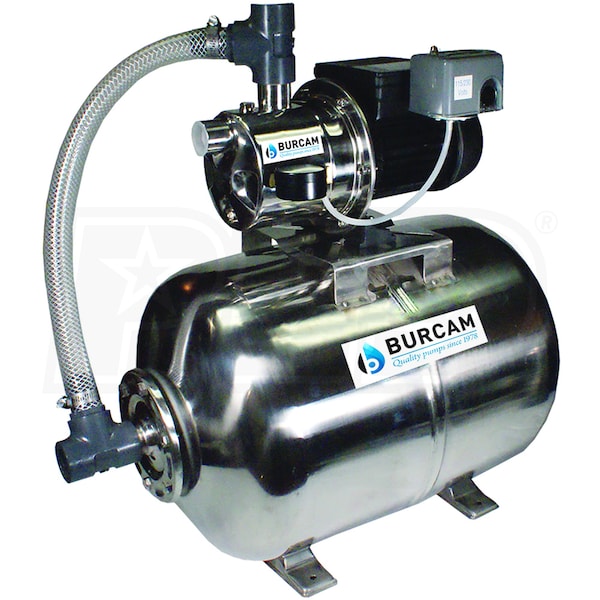

Burcam Pumps 16 GPM 3/4 HP Stainless Steel Shallow Well Jet Pump w/ 16 Gal. Stainless Steel Tank

Model:

506538SS

Write a Review
$421.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 2 In-Stock
Ships Wednesday, Apr 21st
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States

Burcam Pumps 16 GPM 3/4 HP Stainless Steel Shallow Well Jet Pump w/ 16 Gal. Stainless Steel Tank
Burcam Pumps 16 GPM 3/4 HP Stainless Steel Shallow Well Jet Pump w/ 16 Gal. Stainless Steel Tank
Model: 506538SS
$421.99
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Inlet Size

1"

Style

Shallow Well

GPM

16.4 Gallons

  • 3/4 HP Shallow Well Jet Pump System
  • Ideal for use in pumping depths of 25' or less
  • 115/230V TEFC Motor
  • Totally enclosed, bearing to bearing
  • Thermal & Overload Protection
  • Provides added safety to protect your investment
  • Stainless Steel Pump Body, Shaft & Rotary Mechanical Seal
  • High quality components for years of reliable operation
  • Continuous Duty Capacitor
  • Eliminates starting wear
  • 16 Gallon Stainless Steel Air Pressure Tank
  • No water-air contact, provides rust-free operation
  • No water-tank contact, eliminates seeping
  • No water-logging, eliminates the need for air volume controls
  • Noryl Impeller & Injector
  • Provides high performance & long life
  • Includes 30/50 Pressure Switch
  • 2-Year Warranty
California residents see
Warning: This product can expose you to chemicals including Isoprene which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

506538SS
Motor
Voltage
120/240 Volt
Running Amps
4.5
Pump
Gallons Per Minute
16.4 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Housing Material
Stainless Steel
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
70
Submersible
No
Engine
Continuous Operation
Yes
Oil-Cooled
No
Shaft Seal
Stainless Steel
Horsepower
0.75 hp
Overview
Weight
44 Pounds
Consumer Warranty
2 Years
Product Length
18 Inches
Product Width
18 Inches
Product Height
28 Inches
UPC
772910065386

Reviews

(57)
Burcam 506538SS Reviews & Ratings

Product Q&A

(1)
Product Questions Answered by Jim, the Water Pump Expert
Question
+
i have a shallow well with a pump and bladder tank. the motor on the pump is almost shot and I wanted to know if it is just as simple to switch to a tankless system with its features or should I move up to a 3/4 hp pump tank stainless steel system for my home and sprinkler system. I plan to just tie into my exiting 1 1/4 inch plastic well.
Dave
from Indiana
June 12, 2016
Answer
Unfortunately, it's not that easy. While one 1/2HP or 3/4HP pump may provide "X" GPM & PSI and a certain total head lift, another 1/2HP or 3/4HP pump may provide a higher or lower GPM & PSI at the same head lift. In other words, all pumps are not created equal. The only way to be sure that you are matching your current pump specs is to look up the pump model# to see what that pump can do. Once you have that information, you can start searching other pump specifications and pump curves to fine the right pump, whether it's a match or one that will provide you with a bit higher flow & pressure.

That said, you can either do this research yourself, or you can provide me with the pump model# and I'll be happy to see what I can find out for you.

Now, if you do not have any of this information, I will need the following in order to assist you further.

Depth of your well

Standing Water Level

Well Recovery Rate or Pumping Water Level

GPM & PSI Requirements

Well Casing Diameter

Total pumping distance including any elevation variance

Number of Sprinkler Heads (if zoned, per zone) And Their Individual GPM &
PSI Requirements

Total Distance from The Pump to The Furthest Sprinkler and Any Elevation Variance
Was this answer helpful?
Yes
1
No
0
