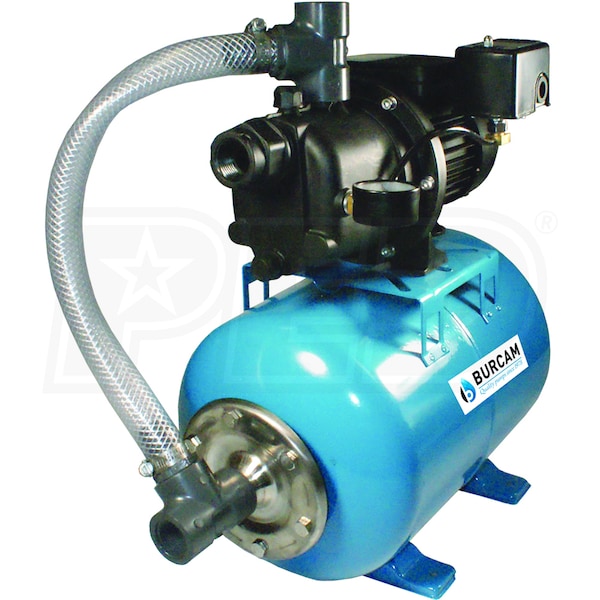

Burcam Pumps 506227P - 18 GPM 3/4 HP Thermoplastic Shallow Well Jet Pump w/ 7 Gallon Tank (115/230V)
Model: 506227P
+
Share This Product
-
Product Description
-
14Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
1-1/4"
Style

GPM
18
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
18 Gallons
Features
Features
- 3/4 HP Shallow Well Jet Pump System
- Ideal for use in pumping depths of 25' or less
- 115/230V TEFC Motor
- Totally enclosed, bearing to bearing
- Preset at the factory to 115V
- Thermal & Overload Protection
- Provides added safety to protect your investment
- Noryl (Thermoplastic) Housing
- Eliminates rust contamination for better water quality
- Best life expectancy
- 7 Gallon Epoxy-Coated Steel Pressure Tank
- Butyl (rubber) technology to reduce bladder wear
- 30/50 Preset Pressure Switch
- Assembled and installed at the factory
- Provides ease in operation
- 1-1/4" Suction, 1" Discharge
- 2 Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
4.2
Thermal Protection
Yes
Starting Amps
8.4
Pump
Gallons Per Minute
18 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Thermoplastic
Suction Head
25 Feet
Maximum PSI
65
GPH @ 0 feet
1080
GPH @ 5 feet
780
GPH @ 10 feet
720
GPH @ 15 feet
600
GPH @ 20 feet
420
Built-in check Valve
No
Submersible
No
Engine
Continuous Operation
Yes
Oil-Cooled
No
Horsepower
0.75 hp
Accessories
Pressure Switch
Yes
Overview
Weight
41 Pounds
Consumer Warranty
2 Years
Product Length
12 Inches
Product Width
21.75 Inches
Product Height
24 Inches
UPC
772910552275
Inlet Size
1-1/4"
Style

GPM
18
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
18 Gallons
Features
Features
- 3/4 HP Shallow Well Jet Pump System
- Ideal for use in pumping depths of 25' or less
- 115/230V TEFC Motor
- Totally enclosed, bearing to bearing
- Preset at the factory to 115V
- Thermal & Overload Protection
- Provides added safety to protect your investment
- Noryl (Thermoplastic) Housing
- Eliminates rust contamination for better water quality
- Best life expectancy
- 7 Gallon Epoxy-Coated Steel Pressure Tank
- Butyl (rubber) technology to reduce bladder wear
- 30/50 Preset Pressure Switch
- Assembled and installed at the factory
- Provides ease in operation
- 1-1/4" Suction, 1" Discharge
- 2 Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
4.2
Thermal Protection
Yes
Starting Amps
8.4
Pump
Gallons Per Minute
18 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Thermoplastic
Suction Head
25 Feet
Maximum PSI
65
GPH @ 0 feet
1080
GPH @ 5 feet
780
GPH @ 10 feet
720
GPH @ 15 feet
600
GPH @ 20 feet
420
Built-in check Valve
No
Submersible
No
Engine
Continuous Operation
Yes
Oil-Cooled
No
Horsepower
0.75 hp
Accessories
Pressure Switch
Yes
Overview
Weight
41 Pounds
Consumer Warranty
2 Years
Product Length
12 Inches
Product Width
21.75 Inches
Product Height
24 Inches
UPC
772910552275
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Running Amps
4.2
Thermal Protection
Yes
Starting Amps
8.4
Pump
Gallons Per Minute
18 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Thermoplastic
Suction Head
25 Feet
Maximum PSI
65
GPH @ 0 feet
1080
GPH @ 5 feet
780
GPH @ 10 feet
720
GPH @ 15 feet
600
GPH @ 20 feet
420
Built-in check Valve
No
Submersible
No
Engine
Continuous Operation
Yes
Oil-Cooled
No
Horsepower
0.75 hp
Accessories
Pressure Switch
Yes
Overview
Weight
41 Pounds
Consumer Warranty
2 Years
Product Length
12 Inches
Product Width
21.75 Inches
Product Height
24 Inches
UPC
772910552275
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
Could you give me priming instructions?
Henry
from Texas
April 11, 2020
Answer
Please read our guide on how to prime a well pump: https://www.waterpumpsdirect.com/stories/1705-How-to-Prime-a-Well-Pump.html.
Was this answer helpful?
Yes

0
No

0
