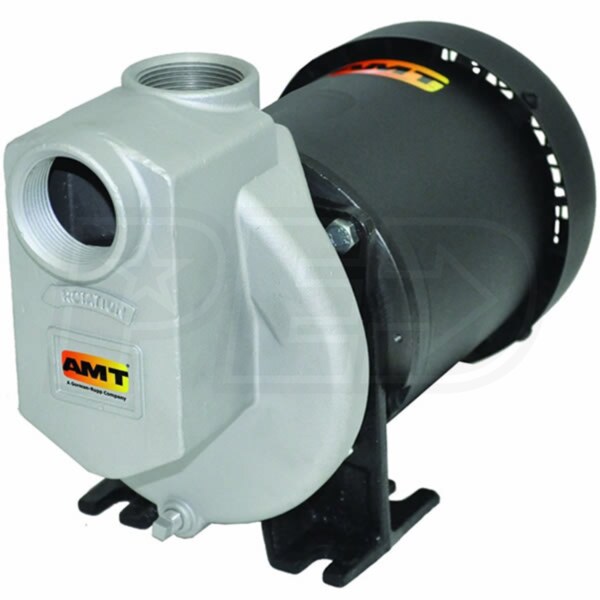

AMT 3899-98 - 132 GPM (1.5") Stainless Steel Pedestal Mounted Pump w/ Teflon® Seal

AMT 3899-98 - 132 GPM (1.5") Stainless Steel Pedestal Mounted Pump w/ Teflon® Seal



Product Discontinued Product Discontinued
Share
  • Product Description
  • Reviews
  • How-To Articles
Product Description
+

Features
Features
  • AMT Self-Priming 300 Series Stainless Steel Centrifugal Pump
  • For chemical processes, waste water treatment & Ag. fertilizers
  • Pedestal Mounted w/ Teflon« Mechanical Seal & SS Shaft Seal
  • Designed to extend the life of the pump
  • Self-Cleaning, Semi-Open Impeller, Stainless Steel Impeller
  • Provides self-priming up to 6'
  • Allows for a max pumping temperature of 250F
  • Versatile Design
  • Can handle liquids with specific gravities up to 1.3
  • Can handle liquids with viscosity to 100 SSU
  • Epoxy Coated Bearing Housing
  • 3/4" dim. SS Shaft w/ 3/16" Keyway & Sealed Ball Bearings
  • Requires Minimum 2 HP Motor (Not Included)
  • Maximum Working Pressure 75 PSI
Specifications
Pump
Gallons Per Minute
132 Gallons
Inlet Diameter
1-1/2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Steel
Impeller Material
Stainless Steel
Handles Solids
No
Suction Head
6 Feet
Total Head Lift
63 Feet
Maximum PSI
75
Engine
Continuous Operation
Yes
Shaft Seal
Stainless Steel
Overview
Weight
30 Pounds
Product Length
13.4 Inches
Product Width
6.5 Inches
Product Height
9.5 Inches

Features
Features
  • AMT Self-Priming 300 Series Stainless Steel Centrifugal Pump
  • For chemical processes, waste water treatment & Ag. fertilizers
  • Pedestal Mounted w/ Teflon« Mechanical Seal & SS Shaft Seal
  • Designed to extend the life of the pump
  • Self-Cleaning, Semi-Open Impeller, Stainless Steel Impeller
  • Provides self-priming up to 6'
  • Allows for a max pumping temperature of 250F
  • Versatile Design
  • Can handle liquids with specific gravities up to 1.3
  • Can handle liquids with viscosity to 100 SSU
  • Epoxy Coated Bearing Housing
  • 3/4" dim. SS Shaft w/ 3/16" Keyway & Sealed Ball Bearings
  • Requires Minimum 2 HP Motor (Not Included)
  • Maximum Working Pressure 75 PSI
Specifications
Pump
Gallons Per Minute
132 Gallons
Inlet Diameter
1-1/2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Steel
Impeller Material
Stainless Steel
Handles Solids
No
Suction Head
6 Feet
Total Head Lift
63 Feet
Maximum PSI
75
Engine
Continuous Operation
Yes
Shaft Seal
Stainless Steel
Overview
Weight
30 Pounds
Product Length
13.4 Inches
Product Width
6.5 Inches
Product Height
9.5 Inches
Product Specs
+
Specifications
Pump
Gallons Per Minute
132 Gallons
Inlet Diameter
1-1/2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Steel
Impeller Material
Stainless Steel
Handles Solids
No
Suction Head
6 Feet
Total Head Lift
63 Feet
Maximum PSI
75
Engine
Continuous Operation
Yes
Shaft Seal
Stainless Steel
Overview
Weight
30 Pounds
Product Length
13.4 Inches
Product Width
6.5 Inches
Product Height
9.5 Inches
