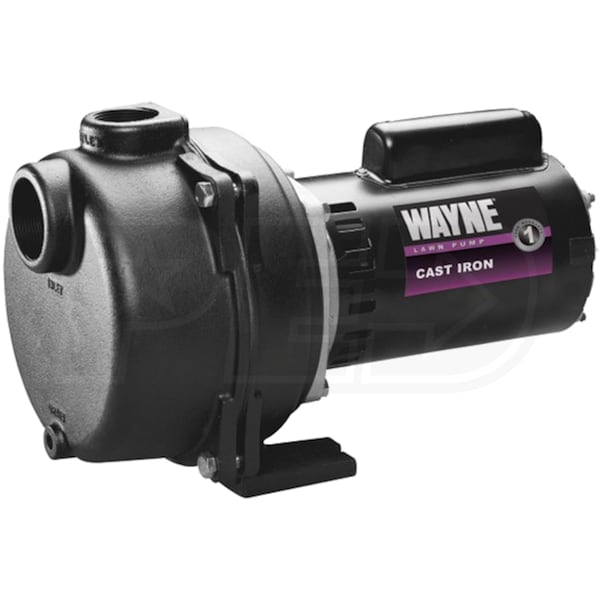

Wayne WLS75 - 38 GPM 3/4 HP Cast Iron Lawn Sprinkler Pump

Model:

WLS75

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Wayne WLS75 - 38 GPM 3/4 HP Cast Iron Lawn Sprinkler Pump
Wayne WLS75 - 38 GPM 3/4 HP Cast Iron Lawn Sprinkler Pump
Model: WLS75
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

2 Inch

Style

Sprinkler

GPM

38 Gallons

  • 3/4 HP Lawn Sprinkling Pump
  • Pumps up to 2320 GPH @ 5' (30 PSI)
  • Durable Cast Iron Volute
  • Built for years of reliable service
  • High Efficiency Dual Voltage Motor (120/240V)
  • Factory wired for 240V installation
  • Easily change to 120V to suit your application
  • Operates An Underground Sprinkling System
  • Uses a high volume of water at low pressure
  • 2" NPT Suction with 1-1/2" NPT Discharge
  • 1-Year Warranty
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

WLS75
specs product image PID-4376
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
38 Gallons
Inlet Diameter
2 Inch
Outlet Diameter
1-1/2 Inch
Self Priming
Yes
Pump Housing Drain
Yes
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
30
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
0.75 hp
Overview
Weight
60 Pounds
Consumer Warranty
1 Year
Product Length
20.00 Inches
Product Width
10.00 Inches
Product Height
10.00 Inches
UPC
040066204820
