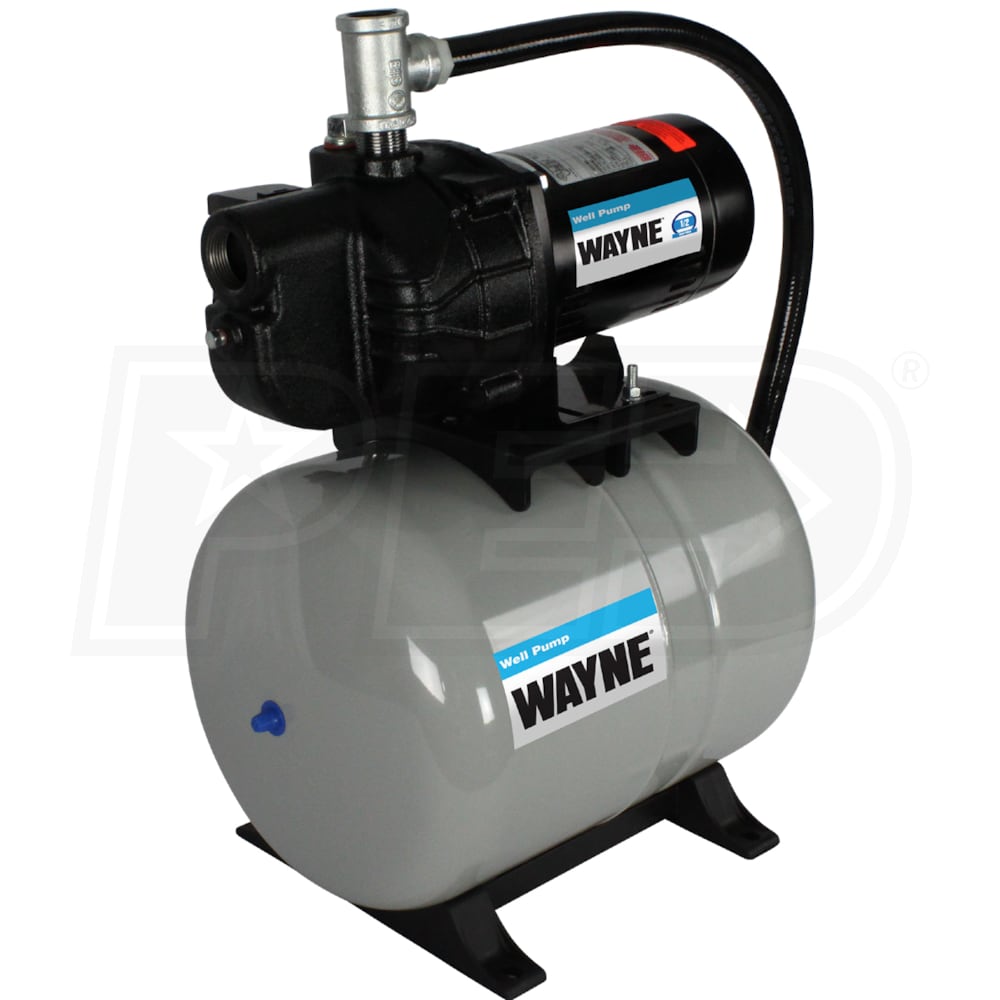

Wayne 1/2 HP Cast Iron Shallow Well Jet Pump w/ 8.5 Gallon Precharged Tank
Model: SWS50-8.5FX
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$465.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States

Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
1-1/4"
Style
Shallow Well Pumps
GPM
5.6
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
5.6 Gallons
Features
Features
  • Wayne 1/2 HP Shallow Well Jet Pump System
  • For shallow well applications up to 25' depth
  • 8.5-Gallon Precharged Tank
  • Provides more usable water compared to conventional tanks
  • All Cast Iron Motor Housing
  • Rugged, corrosion-resistant design provides longer pump life
  • 1/2 HP Dual Voltage Motor (120/240V)*
  • Energy efficient, thermally protected design
  • Thermoplastic Impeller
  • For maximum water flow and reliable operation
  • Includes Pre-Set Pressure Switch
  • Set at 30-50 PSI for automatic operation
  • 1-1/4" NPT Intake & 1" NPT Discharge
  • Easily connect to existing system
  • Dedicated Priming Port
  • Makes this pump very easy to use
  • 3-Year Limited Warranty
  • *No Power Cord Included
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
5.6 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
50
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
0.5 hp
Overview
Weight
43.6 Pounds
Consumer Warranty
3 Years
Product Length
24 Inches
Product Width
12.5 Inches
Product Height
8 Inches
UPC
040066218889
