Simer 7.4 GPM 1/2 HP Thermoplastic Shallow Well Jet Pump (115V)

Model:

3105P

Write a Review
$221.00
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Simer 7.4 GPM 1/2 HP Thermoplastic Shallow Well Jet Pump (115V)
Simer 7.4 GPM 1/2 HP Thermoplastic Shallow Well Jet Pump (115V)
Model: 3105P
$221.00
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Inlet Size

1-1/4"

Style

Shallow Well

GPM

7.4 Gallons

  • 1/2 HP Shallow Well Jet Pump
  • Ideal for use in pumping at depths of 25' or less
  • 115V Heavy-Duty Motor
  • Easily connects to existing power source
  • Fiberglass-Reinforced Thermoplastic Pump Housing
  • Provides total corrosion resistance
  • Self-Priming Design
  • Requires initial priming to operate
  • Dust-Proof Cover
  • Protect all electrical components from debris and insects
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

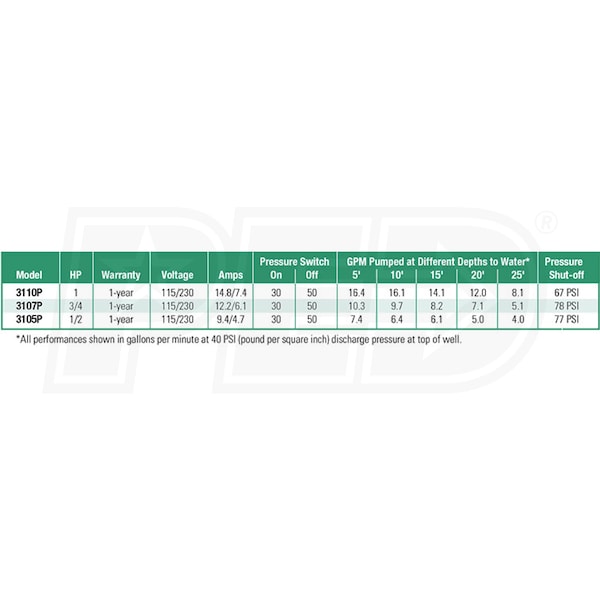

Specifications

3105P
specs product image PID-6758
Motor
Voltage
120/240 Volt
Running Amps
4.95
Pump
Gallons Per Minute
7.4 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Thermoplastic
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
77
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
21 Pounds
Consumer Warranty
1 Year
Product Length
20 Inches
Product Width
11 Inches
Product Height
10 Inches
UPC
022315315105

Reviews

(2)
Simer 3105P Reviews & Ratings

Product Q&A

(2)
Product Questions Answered by Jim, the Water Pump Expert
Question
+
Can you reduce the suction line down from 1 1/4" to 3/4", as my suction line in the cistern is 3/4" copper?
Jerry
from Ohio
July 17, 2019
Answer
It is never recommended that you reduce your suction piping from that of the port diameter. Doing so will starve the pump and cause cavitation to the impeller and pump failure, which would NOT be a warrantied failure.
Was this answer helpful?
Yes
0
No
0
Question
+
What is the maximum depth of a "shallow" well pump? I want to use an on top pump if possible and my well is 150 ft. deep
Alfred H
from Arkansas
April 03, 2013
Answer
Thank you for visiting Water Pumps Direct. In answer to your question, the maximum suction or depth that a shallow well pump can handle is 25 feet. A CONVERTIBLE JET PUMP can handle depths of up to 90 feet, max. In your case, the only option would be a DEEP WELL submersible pump, providing that you can get a 4" diameter pump into your well.
Was this answer helpful?
Yes
0
No
0
