Red Lion 22 GPM 1 HP Deep Well Submersible Pump (3-Wire 230V) w/ Control Box

Red Lion 22 GPM 1 HP Deep Well Submersible Pump (3-Wire 230V) w/ Control Box
Model: RL22G10-3W2V
(Based on expert analysis, manufacturer ratings and customer reviews)
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
Number of Reviews (73)
Write A Review
$424.00
Ships in 2-5 Business Days
Free Shipping
Free Shipping$424.00Buy Now
$424.00Visit Site

(as of 06:37 CST - Details)Sales Tax Extra $552.03Visit Site
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • 73
    Reviews
  • 9
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
N/A
Style
Deep Well
GPM
22
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
22 Gallons
Features
Features
  • 4" Submersible Deep Well Pump
  • Ideal for use with 4" I.D. or larger wells
  • Powered By Industry Standard 3-Wire 230V Motor
  • Proven superior quality & performance ensuring quiet operation
  • Hex Rubber Bearing w/ Extra-Large Surface
  • Provides shaft stability and multiple flow channels
  • Keeps small particles such as sand away from bearing surfaces
  • Built-In Check Valve
  • Prevents back-flow and ensures system pressure
  • Built-In Suction Screen
  • Helps to prevent debris from clogging impellers
  • 1-1/4" NPT Thermoplastic Discharge Head
  • Provides full-flow performance without the risk of corrosion
  • Includes Red Lion Control Box
  • Eliminates confusion for control box selection
Specifications
Motor
Voltage
240 Volt
Wire
3-Wire
Pump
Gallons Per Minute
22 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic

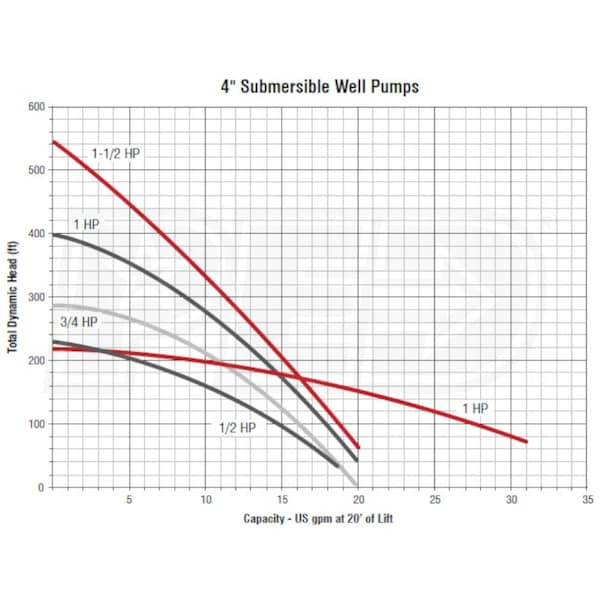

Total Head Lift
200 Feet
Maximum PSI
80
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
1 hp
Accessories
Control Box
Yes
Overview
Made in USA
No
Weight
31 Pounds
Consumer Warranty
3 Years
UPC
010121141858

Inlet Size
N/A
Style
Deep Well
GPM
22
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
22 Gallons
Features
Features
  • 4" Submersible Deep Well Pump
  • Ideal for use with 4" I.D. or larger wells
  • Powered By Industry Standard 3-Wire 230V Motor
  • Proven superior quality & performance ensuring quiet operation
  • Hex Rubber Bearing w/ Extra-Large Surface
  • Provides shaft stability and multiple flow channels
  • Keeps small particles such as sand away from bearing surfaces
  • Built-In Check Valve
  • Prevents back-flow and ensures system pressure
  • Built-In Suction Screen
  • Helps to prevent debris from clogging impellers
  • 1-1/4" NPT Thermoplastic Discharge Head
  • Provides full-flow performance without the risk of corrosion
  • Includes Red Lion Control Box
  • Eliminates confusion for control box selection
Specifications
Motor
Voltage
240 Volt
Wire
3-Wire
Pump
Gallons Per Minute
22 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
200 Feet
Maximum PSI
80
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
1 hp
Accessories
Control Box
Yes
Overview
Made in USA
No
Weight
31 Pounds
Consumer Warranty
3 Years
UPC
010121141858
Product Specs
+
Specifications
Motor
Voltage
240 Volt
Wire
3-Wire
Pump
Gallons Per Minute
22 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
200 Feet
Maximum PSI
80
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
1 hp
Accessories
Control Box
Yes
Overview
Made in USA
No
Weight
31 Pounds
Consumer Warranty
3 Years
UPC
010121141858
Reviews
(73)
+
Red Lion RL22G10-3W2V Reviews & Ratings
97% of Reviewers Recommend This Product
Product Q&A
(9)
+
Search Product Q&A's Answered by Jim, the Water Pump Expert
icon-social-fb1
+
Does this pump have a rope tie-off to prevent losing it in the well?
David M.
from Arkansas
March 14, 2018
Answer
Yes, it does. This should actually be a pretty standard feature that should come with any submersible deep well pump.
+
I have read that this pump utilizes a Franklin motor, is this true?
Ken K.
from Texas
May 10, 2017
Answer
Red Lion, while a division of Franklin Electric, does NOT use a Franklin motor on their deep well pumps. The Red Lion Deep Well Pumps include a VHC motor which is also a division of Franklin Electric. Little Giant Deep Well Pumps, on the other hand, are also a division of Franklin Electric and DO include the Franklin motor.
+
What brand submersible pump would you recommend for well less than 40 ft and what size and type pipe would you use?
Dennis
from Arkansas
July 01, 2016
Answer
In all honesty, all deep well pumps that we offer, Red Lion, Little Giant, Wayne, Lancaster and Franklin Electric, are all very good quality pumps. They all require a 1-1/4" discharge and a minimum 4" diameter well casing for installation. If you can provide the following information, I'll be happy to assist you further.

Depth of your well

Standing Water Level

Well Recovery Rate or Pumping Water Level

GPM & PSI Requirements

Total pumping distance including any elevation variance

Number of Sprinkler Heads (if zoned, per zone) And Their Individual GPM & PSI Requirements (if applicable)

Total Distance from The Pump to The Furthest Sprinkler and Any Elevation Variance (if applicable)
+
In have 4 inch ID pvc well casing ..your product description says it will fit. What is the width of the pump?
Vince
from Indiana
June 16, 2016
Answer
The width of these pumps average 3.90" and WILL fit inside a 4" well casing.
If you have any other questions, please let me know.
+
I plan to replace a 30 yer old pump that is at 200 ft. and lower the new pump to 250 ft in a 400 ft deep well. Will I need to a check valve mid way up as well as at the well head?
Ken G
from California
July 27, 2015
Answer
Most submersible deep well pumps include a built-in check valve at the discharge port of the pump and It is recommended that additional spring loaded in-line check valves be installed in the drop pipe @ 200ft intervals only.
+
what guage wire should be run to this pump if set at two hundred feet
Billy
from West Virginia
June 22, 2014
Answer
Thank you for your interest in Water Pumps Direct. Information on the wiring gauge based on the distance for all Red Lion pumps can be found on page 3 of the OWNER'S MANUAL.
+
how many stage pump is this
Steve V
from New York
January 11, 2014
Answer
Thank you for your interest in Water Pumps Direct. The Red Lion model RL22G10-3W2V is a 7-stage pump.
+
I have a 138' deep well with a 6" casing and a static water level of 40' below top of well. Produces 60 gpm with a drawdown of 40' in 4 hours at 60gpm. I am building a 4 bedroom house. Can you recommend a pump for me? I was considering the Red Lion 22gpm 1Hp, three wire 230v unit Thanks for your help!
Bobby Ball
from Washington
January 11, 2014
Answer
Thank you for your interest in Water Pumps Direct. I would need to know your GPM & PSI requirements before I could make any recommendations.
+
what is the purpose of the control box and can it be eliminated?
Armand
from Ohio
July 09, 2012
Answer
Three wire submersible motors require a control box. Control boxes contain a starting relay, starting capacitors and in some cases overload protectors. Two wire submersible motors have these components built into them and do not require a control box.

One benefit of using a three wire motor with a control box is that some of the components that are subject to failure are located above ground where you can get to them without pulling the pump.

Control boxes should never be mounted in direct sunlight or in locations that are extremely hot, this causes the capacitor life to be shortened and can cause nuisance overload trips. Do not mount the control box in a humid location such as a damp well pit since voltage breakdown and corrosion will accelerate component failure in this condition.

Control boxes are designed for vertical, upright mounting only. Any other position will affect the operation of voltage sensing relays in larger sizes and may result in water leakage.
