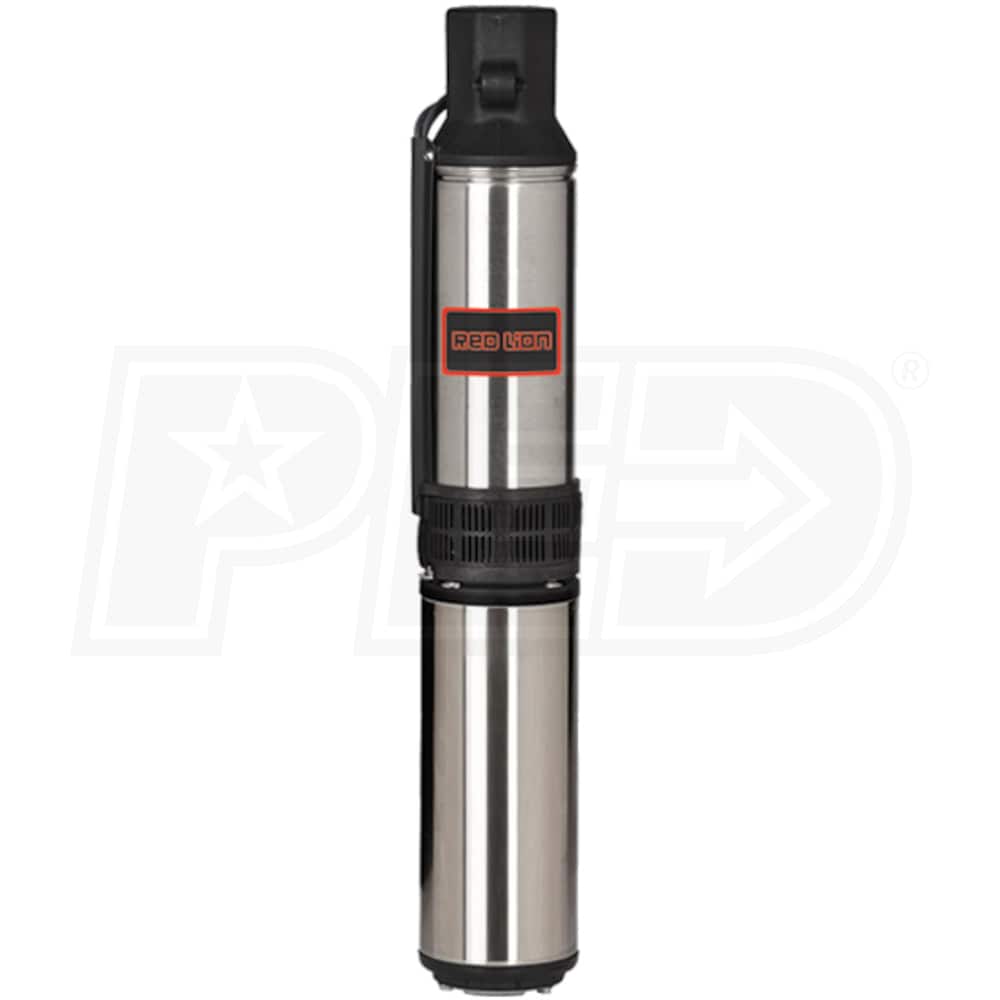

Red Lion 1-1/2 HP Deep Well Submersible Pump (3-Wire 230V)

Red Lion 1-1/2 HP Deep Well Submersible Pump (3-Wire 230V)
Model: RL12G15-3W2V
$579.99
Only 4 In-Stock
Ships Monday, Jan 22nd
Free Shipping &
Tax-Free (Except IL)
In-Stock Free ShippingNo Sales Tax* (Except IL)$579.99Buy Now
No Sales Tax* (Except IL)$579.99Visit Site

(as of 06:52 CST - Details) Sales Tax Extra $579.99Visit Site
Sales Tax Extra $750.69Visit Site
Only 4 In-Stock
Ships Monday, Jan 22nd
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
  • Product Description
  • 24
    Reviews
  • 8
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
N/A
Style
GPM
12
Gallons
Features
Features
  • 4" Submersible Deep Well Pump
  • Ideal for use with 4" I.D. or larger wells
  • Powered By Industry Standard 3-Wire 230V Motor
  • Proven superior quality & performance ensuring quiet operation
  • Hex Rubber Bearing w/ Extra-Large Surface
  • Provides shaft stability and multiple flow channels
  • Keeps small particles such as sand away from bearing surfaces
  • Built-In Check Valve
  • Prevents back-flow and ensures system pressure
  • Built-In Suction Screen
  • Helps to prevent debris from clogging impellers
  • 1-1/4" NPT Thermoplastic Discharge Head
  • Provides full-flow performance without the risk of corrosion
  • Requires 1-1/2 HP Red Lion Control Box "RLCB15-230"
  • CONTROL BOX SOLD SEPARATELY
Specifications
Motor
Voltage
240 Volt
Wire
3-Wire
Engine
Continuous Operation
Yes
Horsepower
1.5 hp
Pump
Gallons Per Minute
12 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
500 Feet
Maximum PSI
80
Submersible
Yes
Accessories
Control Box
Sold Separately
Overview
Made in USA
No
Weight
36 Pounds
Consumer Warranty
3 Years
UPC
010121141841

Inlet Size
N/A
Style
GPM
12
Gallons
Features
Features
  • 4" Submersible Deep Well Pump
  • Ideal for use with 4" I.D. or larger wells
  • Powered By Industry Standard 3-Wire 230V Motor
  • Proven superior quality & performance ensuring quiet operation
  • Hex Rubber Bearing w/ Extra-Large Surface
  • Provides shaft stability and multiple flow channels
  • Keeps small particles such as sand away from bearing surfaces
  • Built-In Check Valve
  • Prevents back-flow and ensures system pressure
  • Built-In Suction Screen
  • Helps to prevent debris from clogging impellers
  • 1-1/4" NPT Thermoplastic Discharge Head
  • Provides full-flow performance without the risk of corrosion
  • Requires 1-1/2 HP Red Lion Control Box "RLCB15-230"
  • CONTROL BOX SOLD SEPARATELY
Specifications
Motor
Voltage
240 Volt
Wire
3-Wire
Engine
Continuous Operation
Yes
Horsepower
1.5 hp
Pump
Gallons Per Minute
12 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
500 Feet
Maximum PSI
80
Submersible
Yes
Accessories
Control Box
Sold Separately
Overview
Made in USA
No
Weight
36 Pounds
Consumer Warranty
3 Years
UPC
010121141841
Product Specs
+
Specifications
Motor
Voltage
240 Volt
Wire
3-Wire
Engine
Continuous Operation
Yes
Horsepower
1.5 hp
Pump
Gallons Per Minute
12 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
500 Feet
Maximum PSI
80
Submersible
Yes
Accessories
Control Box
Sold Separately
Overview
Made in USA
No
Weight
36 Pounds
Consumer Warranty
3 Years
UPC
010121141841
Reviews
(24)
+
Red Lion RL12G15-3W2V Reviews & Ratings
96% of Reviewers Recommend This Product
Product Q&A
(8)
+
Hi Jim, We are having to replace our well pump with a new pump. I would like to find out if this is the correct pump for our well. The well is 505 feet deep with the pump i believe sitting at 500 ft. Our well is a low producing well at just 1.125 gpm. with a static level of 194 feet from the top of the well. Would this pump be the correct pump for us?
Heidi Ott
from Washington
July 05, 2016
Read Response +
Answer
Heidi,

Thank you for your interest in Water Pumps Direct. Before I can really make an educated suggestion on what pump you would need for your application, I would need to know the following specifications and requirements:

Depth of your well-505FT

Standing Water Level-194ft

Well Recovery Rate or Pumping Water Level-1.125

GPM & PSI Requirements-

Total pumping distance including any elevation variance-

Number of Sprinkler Heads (if zoned, per zone) And Their Individual GPM & PSI Requirements (if applicable)-

Total Distance from The Pump to The Furthest Sprinkler and Any Elevation Variance (if applicable)-

If you can supply this information, I'll be happy to assist you further.
Hide Response -
i wont to drop a pump 375 ft down in a 405 ft well what pump do i need for a 2 wire with ground
Wilburn
from Georgia
July 03, 2016
Read Response +
Answer
Thank you for your interest in Water Pumps Direct. Before I can really make an educated suggestion on what pump you would need for your application, I would need to know the following specifications and requirements:

Depth of your well - 405 feet

Standing Water Level

Well Recovery Rate or Pumping Water Level

GPM & PSI Requirements

Total pumping distance including any elevation variance

Number of Sprinkler Heads (if zoned, per zone) And Their Individual GPM & PSI Requirements (if applicable)

Total Distance from The Pump to The Furthest Sprinkler and Any Elevation Variance (if applicable)

If you can supply this information, I'll be happy to assist you further.
Hide Response -
In have 4 inch ID pvc well casing ..your product description says it will fit. What is the width of the pump?
Vince
from Indiana
June 16, 2016
Read Response +
Answer
The width of these pumps average 3.90" and WILL fit inside a 4" well casing.
If you have any other questions, please let me know.
Hide Response -
I plan to replace a 30 yer old pump that is at 200 ft. and lower the new pump to 250 ft in a 400 ft deep well. Will I need to a check valve mid way up as well as at the well head?
Ken G
from California
July 27, 2015
Read Response +
Answer
Most submersible deep well pumps include a built-in check valve at the discharge port of the pump and It is recommended that additional spring loaded in-line check valves be installed in the drop pipe @ 200ft intervals only.
Hide Response -
Does wiring come with the pump
Dwight B
from Louisiana
June 11, 2015
Read Response +
Answer
The Red Lion deep well pumps include 12" - 18" of wire and a waterproof splice kit and instructions. All other wiring does need to be supplied by you or your installer.
Hide Response -
what guage wire should be run to this pump if set at two hundred feet
Billy
from West Virginia
June 22, 2014
Read Response +
Answer
Thank you for your interest in Water Pumps Direct. Information on the wiring gauge based on the distance for all Red Lion pumps can be found on page 3 of the OWNER'S MANUAL.
Hide Response -
what parts are involved with submersible pumps that can fail and breakdown or if it doesn't work you just have to replace the entire pump?
Sal
from New York
January 22, 2014
Read Response +
Answer
When it comes to 2-wire deep well submersible pumps, the pump starting controls are located inside the pump. Any of these components can fail and cause the pump to become inoperable. By installing a 3-wire pump, those components would be located inside a CONTROL BOX, making repairs much easier when failure of these components are the cause of your pump not operating. Of course if the pump has failed due to burnt motor windings or some other cause, would would still need to pull and replace the pump, but you would have a better understanding of the pump status when the pump starting components are above ground as opposed to 50-500 feet or more, below ground.
Hide Response -
what is the purpose of the control box and can it be eliminated?
Armand
from Ohio
July 09, 2012
Read Response +
Answer
Three wire submersible motors require a control box. Control boxes contain a starting relay, starting capacitors and in some cases overload protectors. Two wire submersible motors have these components built into them and do not require a control box.

One benefit of using a three wire motor with a control box is that some of the components that are subject to failure are located above ground where you can get to them without pulling the pump.

Control boxes should never be mounted in direct sunlight or in locations that are extremely hot, this causes the capacitor life to be shortened and can cause nuisance overload trips. Do not mount the control box in a humid location such as a damp well pit since voltage breakdown and corrosion will accelerate component failure in this condition.

Control boxes are designed for vertical, upright mounting only. Any other position will affect the operation of voltage sensing relays in larger sizes and may result in water leakage.
Hide Response -
