Features
Inlet Size
2"
Style
Sprinkler
GPM
63 Gallons
- 1 HP Lawn Sprinkler Pump
- For use in underground or above ground lawn sprinkling systems
- Also for garden irrigation, boosting household water pressure
- Can be used for recirculation of large volumes of water
- Heavy-Duty Cast Iron Construction w/ Thermoplastic Impeller
- Designed for years of service and reliability
- 115/230 Volt Heavy-Duty Motor
- Voltage selector for simple connection to existing power source
- Self-Priming Design
- After initial fill, no additional priming required
- Engineered Pump Housing & Hydraulics
- For high performance, efficiency and quiet operation
- Additional Specs
- 2" NPT Intake
- 1-1/2" NPT Discharge
Specifications
97101001
Motor
Voltage
120/240 Volt
Running Amps
7
Pump
Gallons Per Minute
63 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
45
Submersible
No
Engine
Horsepower
1 hp
Overview
Weight
55 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Length
19.9 Inches
Product Width
9.26 Inches
Product Height
10.6 Inches
UPC
010121001398
Additional Model Numbers
RL-SPRK100, 97101001
Reviews
(13)
Red Lion 97101001 Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Jim, the Water Pump Expert
Question
+−
Will the pump come with all the electrical fixtures so I can plug it in and go? If not, what electrical will I need to buy? My generator has 120/240 outlets. I would like to use the 240 if possible.
Poly
from Texas
November 21, 2018
Answer
These pumps require you to either hard-wire or provide your own power cord with the appropriate plug. All wiring instructions are included in the PUMP MANUAL.
Was this answer helpful?
Yes
2
No
0
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
How-To Articles
How to Get Water Off Your Pool Cover
Every spring season, millions of Americans are faced with the dilemma of decidi...
How to Pick the Perfect Specialty Water Pump
All water pumps are built for the same purpose: moving water. But there are s...
Water Pumps How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

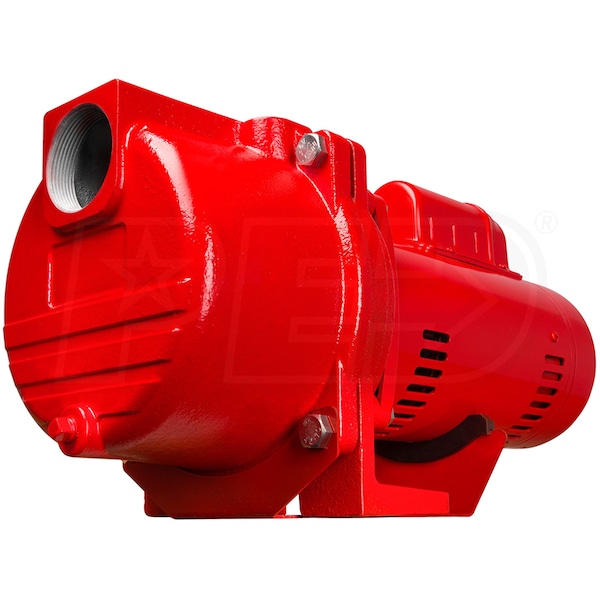

Red Lion 63 GPM 1 HP Self-Priming Cast Iron Sprinkler Pump
