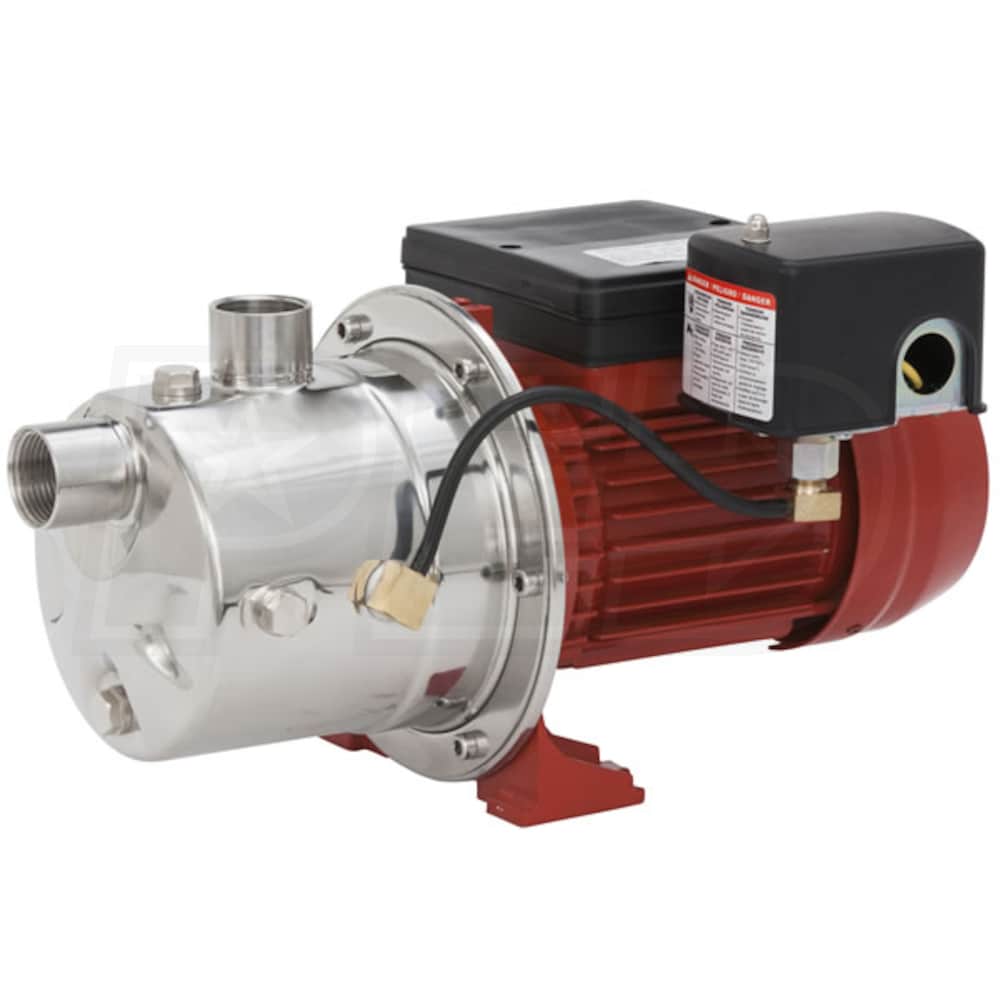

Red Lion 12.8 GPM 3/4 HP Stainless Steel Shallow Well Jet Pump
Model: 97080702
+
Share This Product
-
Product Description
-
17Reviews
-
3Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
1"
Style

GPM
12.8
Gallons
Inlet Size
1"
Style
Shallow Well
GPM
12.8 Gallons
Features
Features
- Stainless Steel Shallow Well Jet Pump
- For the supply of fresh water to rural homes, farms, and cabins
- Ideal for use in pumping at depths of 25' or less
- Stainless Steel Pump Housing
- Corrosion-resistant design to extend pump life
- 3/4 HP Dual-Voltage 115/230V TEFC Motor
- Voltage selector for simple connection to existing power source
- Includes Factory Pre-Wired 30/50 Pressure Switch
- Produces up to 50 psi with automatic shut-off
- Glass-Filled Thermoplastic Impeller and Diffuser
- For high performance and efficient water flow
- 1" FNPT Suction & Discharge
- Compatible with most residential plumbing applications
- Additional Specs: (Please See Spec Sheet For GPM/PSI Table)
- Max Pressure: 73 PSI @ 5' Suction Lift & 65 PSI @ 25' Suction Lift
- 2-Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
4.5
Pump
Gallons Per Minute
12.8 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Quick Clean Out
No
Impeller Material
Plastic
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
169 Feet
Submersible
No
Engine
Continuous Operation
No
Horsepower
0.75 hp
Accessories
Strainer
Sold Separately
Hose Couplings
No
Hose Bands
No
Overview
Weight
18.5 Pounds
Consumer Warranty
2 Years
Product Length
12.25 Inches
Product Width
17.8 Inches
Product Height
11.75 Inches
UPC
010121149397
Additional Model Numbers
RJS-75SS, 97080702
Inlet Size
1"
Style

GPM
12.8
Gallons
Inlet Size
1"
Style
Shallow Well
GPM
12.8 Gallons
Features
Features
- Stainless Steel Shallow Well Jet Pump
- For the supply of fresh water to rural homes, farms, and cabins
- Ideal for use in pumping at depths of 25' or less
- Stainless Steel Pump Housing
- Corrosion-resistant design to extend pump life
- 3/4 HP Dual-Voltage 115/230V TEFC Motor
- Voltage selector for simple connection to existing power source
- Includes Factory Pre-Wired 30/50 Pressure Switch
- Produces up to 50 psi with automatic shut-off
- Glass-Filled Thermoplastic Impeller and Diffuser
- For high performance and efficient water flow
- 1" FNPT Suction & Discharge
- Compatible with most residential plumbing applications
- Additional Specs: (Please See Spec Sheet For GPM/PSI Table)
- Max Pressure: 73 PSI @ 5' Suction Lift & 65 PSI @ 25' Suction Lift
- 2-Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
4.5
Pump
Gallons Per Minute
12.8 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Quick Clean Out
No
Impeller Material
Plastic
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
169 Feet
Submersible
No
Engine
Continuous Operation
No
Horsepower
0.75 hp
Accessories
Strainer
Sold Separately
Hose Couplings
No
Hose Bands
No
Overview
Weight
18.5 Pounds
Consumer Warranty
2 Years
Product Length
12.25 Inches
Product Width
17.8 Inches
Product Height
11.75 Inches
UPC
010121149397
Additional Model Numbers
RJS-75SS, 97080702
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Running Amps
4.5
Pump
Gallons Per Minute
12.8 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Quick Clean Out
No
Impeller Material
Plastic
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
169 Feet
Submersible
No
Engine
Continuous Operation
No
Horsepower
0.75 hp
Accessories
Strainer
Sold Separately
Hose Couplings
No
Hose Bands
No
Overview
Weight
18.5 Pounds
Consumer Warranty
2 Years
Product Length
12.25 Inches
Product Width
17.8 Inches
Product Height
11.75 Inches
UPC
010121149397
Additional Model Numbers
RJS-75SS, 97080702
Product Q&A
(3)
+−

Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
What is the best way to prime this pump before using? Is there a built in check valve on the inlet side?
Chris M.
from Michigan
June 08, 2017
Answer
Read our How-To guide on Priming a Well Pump. Otherwise, all installation instructions including priming are available in the Product Manual. You would need to install a foot or check valve on the suction side in order to keep the pump primed.
Was this answer helpful?
Yes

1
No

0
+−
What size tank do I need with this pump?
Byron T.
from Georgia
May 11, 2017
Answer
Tanks for shallow or deep well applications are typically sized based on a minimum 3 times your GPM requirements. So for example, if you NEED 12GPM, you should have a minimum 36 gallon pressure tank.
Was this answer helpful?
Yes

0
No

0
+−
Would this pump work for watering my garden using water from a stream located within fifty feet.
Bill Jent
from Pennsylvania
July 02, 2016
Answer
Thank you for your interest in Water Pumps Direct. Before I can answer your question, I would need to know the following:
Total head (suction & discharge lift)
Total pumping distance from the water source to the pump and from the pump to the furthest sprinkler head
Piping diameter on your suction and discharge (if already laid)
Total GPM & PSI requirements
Once you can provide this information, I'll be happy to assist you further.
Total head (suction & discharge lift)
Total pumping distance from the water source to the pump and from the pump to the furthest sprinkler head
Piping diameter on your suction and discharge (if already laid)
Total GPM & PSI requirements
Once you can provide this information, I'll be happy to assist you further.
Was this answer helpful?
Yes

0
No

0
