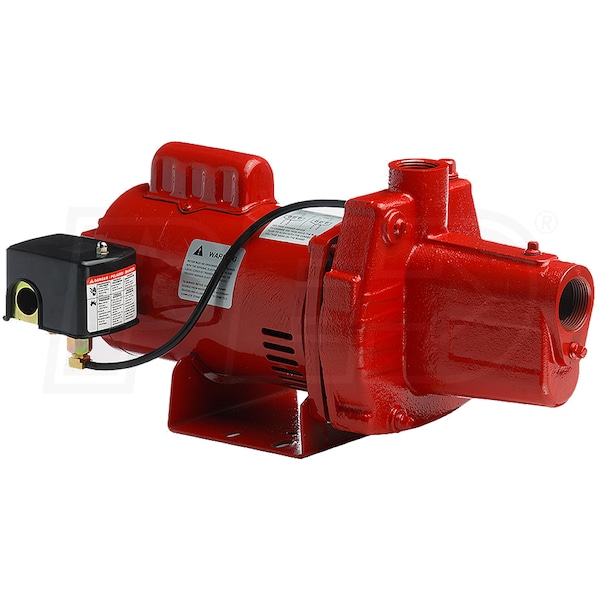

Red Lion 23 GPM 1 HP Cast Iron Shallow Well Jet Pump

Model:

602208

Write A Review
$329.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
More On The Way
Estimated Availability May 31, 2024
Shipping to60601

Red Lion 23 GPM 1 HP Cast Iron Shallow Well Jet Pump
Red Lion 23 GPM 1 HP Cast Iron Shallow Well Jet Pump
Model: 602208
$329.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1-1/4 Inch

Style

Shallow Well

GPM

23.2 Gallons

  • Red Lion Premium 1 HP Shallow Well Jet Pump
  • Ideal for use in pumping at depths of 25' or less
  • Heavy-Duty Cast Iron Construction
  • Built for years of reliable service
  • Includes Factory Pre-Wired 30/50 Pressure Switch
  • Produces up to 50 PSI with automatic shut-off
  • 115/230 Volt Heavy-Duty Century Motor
  • Voltage selector for simple connection to existing power source
  • Glass-Filled Thermoplastic Impeller and Diffuser
  • For high performance and efficient water flow
  • Additional Specs
  • 1-1/4" FNPT - Intake
  • 1" FNPT - Discharge
  • 3-Year Limited Warranty

Specifications

602208
specs product image PID-57944
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Running Amps
8.8
Pump
Gallons Per Minute
23.2 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
65
Total Head Lift
150 Feet
Submersible
No
Engine
Horsepower
1 hp
Overview
Product Category
Water Pump
Weight
40 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
20.5 Inches
Product Width
10.5 Inches
Product Height
10.25 Inches
UPC
010121147058
Additional Model Numbers

RJS-100-PREM, 602208

Reviews

(88)
Red Lion 602208 Reviews & Ratings

Product Q&A

(3)
Expert avatar photo
Product Questions Answered by Jim, the Water Pump Expert
Does this model have a 40/60 pressure switch or a 30/50 pressure switch?
Ron C.
from New Jersey
November 06, 2017
What is the best way to prime this pump before using? Is there a built in check valve on the inlet side?
Chris M.
from Michigan
June 08, 2017
What size tank do I need with this pump?
Byron T.
from Georgia
May 11, 2017
