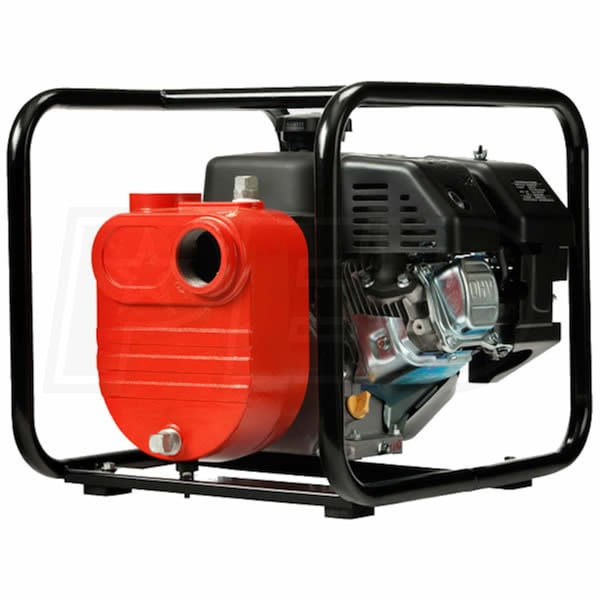

Red Lion 5RLGF-8 - 170 GPM (2") Gas Water Pump w/ Kohler Engine 617032
Model: 617032
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
Ask a Question
$649.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States

Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−

Inlet Size
2"
Style
Dewatering Pumps
GPM
170
Gallons
Engine
Inlet Size
2"
Style
Dewatering
GPM
170 Gallons
Engine
Kohler
Features
Features
  • 2" General Purpose Water/Transfer Pump
  • Ideal for liquid transfer including most agricultural chemicals
  • Kohler Courage 196 cc 4-Stroke OHV Engine
  • Provides plenty of power to get the water moving
  • Heavy-Duty Cast Iron Pump Casing
  • Provides added protection and extends the life of the engine
  • Self-Priming down to 25'
  • Requires initial priming to operate (via priming port)
  • Stainless Steel shaft sleeve and FKM Seal
  • Ensures maximum durability and performance
  • Includes Heavy-Duty roll frame
  • 1-Year Limited Warranty
Specifications
Pump
Gallons Per Minute
170 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Steel
Pump Housing Drain
Yes
Quick Clean Out
No
Impeller Material
Cast Iron
Solids Handling Size
.625 inch
Suction Head
25 Feet
Total Head Lift
95 Feet
Submersible
No
Engine
Engine Brand
Kohler
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
No
Fuel Tank Size
0.98 Gallons
Consumer Engine Warranty
1 Year
Accessories
Tool Kit
No
Strainer
No
Hose Couplings
No
Hose
Sold Separately
Hose Bands
No
Transport Handle
Yes
Overview
Weight
84 Pounds
Consumer Warranty
1 Year
Product Length
20.5 Inches
Product Width
17.5 Inches
Product Height
18 Inches
UPC
010121145016
Additional Model Numbers
5RLGF-8KRF, 617032
