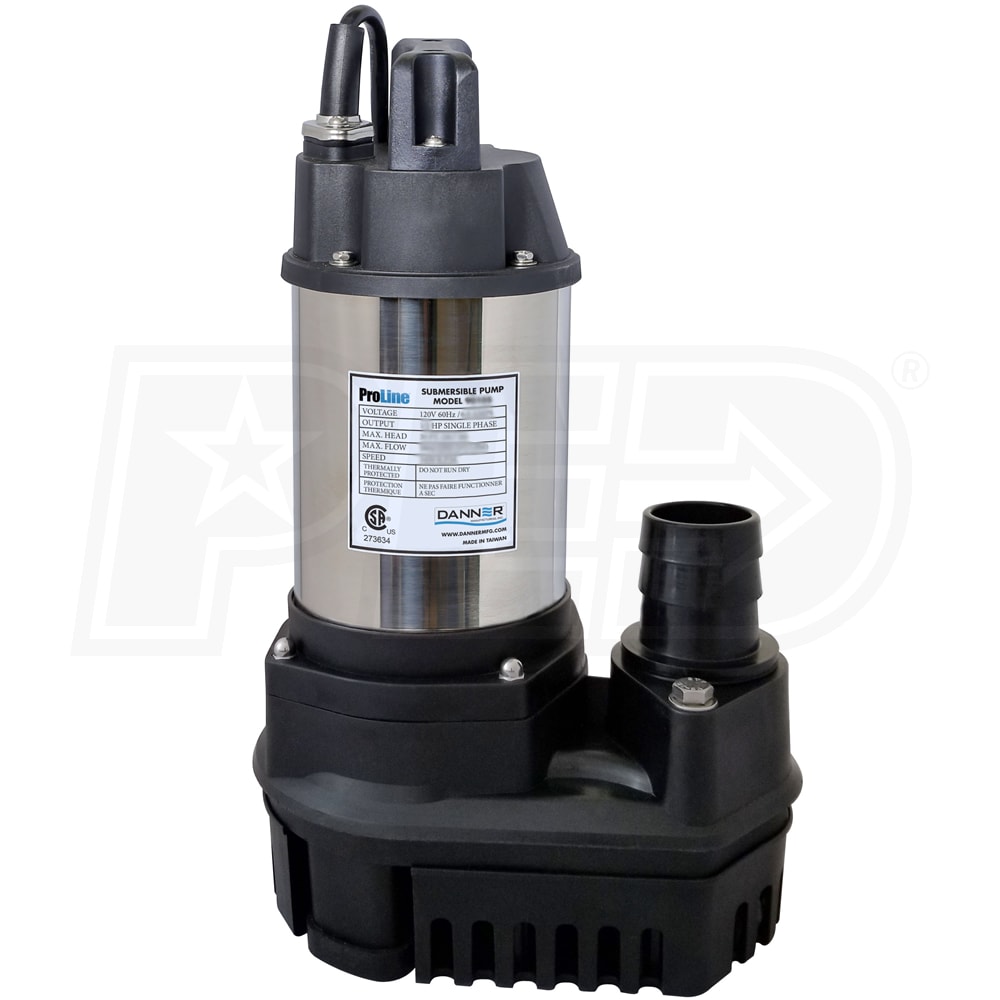

Pondmaster ProLine - 98.4 GPM 1/2 HP High Flow Submersible Stainless Steel Pond/Fountain Pump
Model: 90105
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
N/A
Style

GPM
98.4
Gallons
Inlet Size
N/A
Style
Pond
GPM
98.4 Gallons
Features
Features
- ProLine Continuous Duty Submersible Water Pump
- For ponds, fountains, waterfalls, recirculation and drainage
- 1/2 HP, Thermally-Protected Motor
- Self-resetting automatic protection against overload and overheat
- Stainless Steel Motor Housing
- Corrosion-resistant design for maximum protection
- Fiberglass Reinforced Plastic (FRP) Vortex Impeller
- For increased torque flow which eliminates clogging and binding
- Removable Intake Screen
- Passes up to 1.375" solids with screen removed
- Double Silicone Carbide Mechanical Seals (impeller side)
- Helps extend the life of the pump in harsh environments
- 2-1/4" FNPT Discharge
- Includes 1- 1/2" & 2" Barbed fittings
- 20' Grounded Power Cord
- 2-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
20 Feet
Pump
Gallons Per Minute
98.4 Gallons
Outlet Diameter
2-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Solids Handling Size
1.375 inch
Handles Solids
Yes

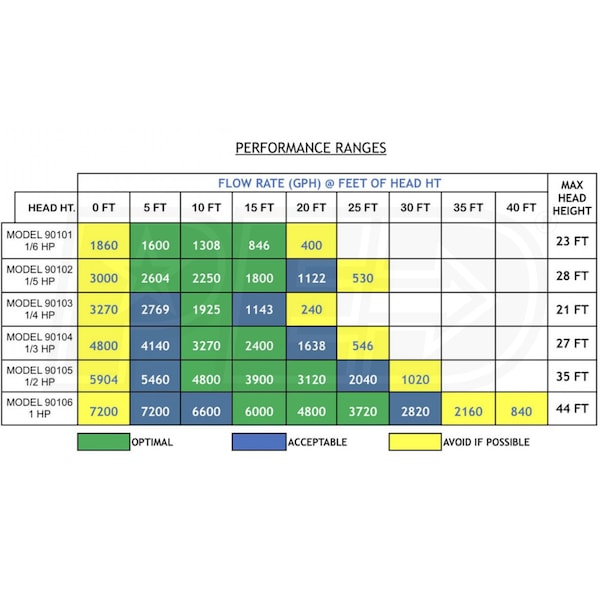

GPH @ 0 feet
5904
GPH @ 5 feet
5460
GPH @ 10 feet
4800
GPH @ 15 feet
3900
GPH @ 20 feet
3120
Max Head
35 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
.5 hp
Overview
Weight
16.5 Pounds
Consumer Warranty
2 Years
Product Length
9.25 Inches
Product Width
6.1 Inches
Product Height
15 Inches
UPC
025033901063
Inlet Size
N/A
Style

GPM
98.4
Gallons
Inlet Size
N/A
Style
Pond
GPM
98.4 Gallons
Features
Features
- ProLine Continuous Duty Submersible Water Pump
- For ponds, fountains, waterfalls, recirculation and drainage
- 1/2 HP, Thermally-Protected Motor
- Self-resetting automatic protection against overload and overheat
- Stainless Steel Motor Housing
- Corrosion-resistant design for maximum protection
- Fiberglass Reinforced Plastic (FRP) Vortex Impeller
- For increased torque flow which eliminates clogging and binding
- Removable Intake Screen
- Passes up to 1.375" solids with screen removed
- Double Silicone Carbide Mechanical Seals (impeller side)
- Helps extend the life of the pump in harsh environments
- 2-1/4" FNPT Discharge
- Includes 1- 1/2" & 2" Barbed fittings
- 20' Grounded Power Cord
- 2-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
20 Feet
Pump
Gallons Per Minute
98.4 Gallons
Outlet Diameter
2-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Solids Handling Size
1.375 inch
Handles Solids
Yes
GPH @ 0 feet
5904
GPH @ 5 feet
5460
GPH @ 10 feet
4800
GPH @ 15 feet
3900
GPH @ 20 feet
3120
Max Head
35 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
.5 hp
Overview
Weight
16.5 Pounds
Consumer Warranty
2 Years
Product Length
9.25 Inches
Product Width
6.1 Inches
Product Height
15 Inches
UPC
025033901063
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
20 Feet
Pump
Gallons Per Minute
98.4 Gallons
Outlet Diameter
2-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Solids Handling Size
1.375 inch
Handles Solids
Yes
GPH @ 0 feet
5904
GPH @ 5 feet
5460
GPH @ 10 feet
4800
GPH @ 15 feet
3900
GPH @ 20 feet
3120
Max Head
35 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
.5 hp
Overview
Weight
16.5 Pounds
Consumer Warranty
2 Years
Product Length
9.25 Inches
Product Width
6.1 Inches
Product Height
15 Inches
UPC
025033901063
