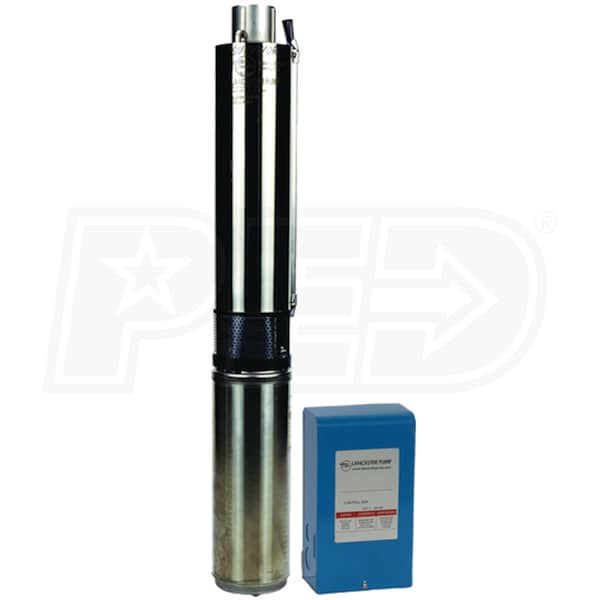

Lancaster Pump 3LSPW7505-2 - 3/4 HP 22 GPM Deep Well Submersible Pump w/ SS Discharge (3-Wire 230V) & CB
Model:
2-3LSPW7505-2
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
N/A
Style
Deep Well
GPM
22 Gallons
- SURVIVOR W-Series 22 GPM 4" Sub. Well Pump (3-Wire 230V)
- For 4" I.D. or + Wells (<160'); 3-Wire Starting - Control Box Included
- 3/4 HP Lancaster HYDRO-FORCE Encapsulated Sub. Motor
- Continuous duty rated, Capacitor-start induction run (CSIR) - Req. Control Box (Included)
- Stainless Steel Motor Casing & Glass-filled Noryl® Motor Support
- Hermetically sealed, permanently lubricated, for greater heat exchange
- Built-In Lighting Arrestors & Automatic Reset Overload
- Provides surge and overhead protection for increased protection
- 1.25" Stainless Steel Discharge Head & Thermoplastic Motor Support
- Superior strength, while minmizing corrosion & Field replaceable check valve
- Balanced Teflon® Impregnated Thermoplastic Impellers
- Reduces overall friction to maximize water flow
- Fully-Enclosed Thermoplastic Diffusers & Stage Plates w/ SS Wear Surfaces
- Each stage has separate comp. thrust washer for added protection
- Heavy wall, High Quality SS Pump Casing & SS Intake Screen
- Sized inside for perfect stage alignment; wouldn't snap off during install
- 3/4 HP HYDRO-FORCE Quick-Disconnect Control Box (230V)
- Includes 230V relay, start capacitor & 2 ground/cable terminals
- NEMR 3R Outdoor rated, painted steel enclosure, QD components
- 3-Year Limited Warranty
Specifications
2-3LSPW7505-2
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
7
Wire
3-Wire
Pump
Gallons Per Minute
22 Gallons
Outlet Diameter
1-1/4 Inch
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
65
Total Head Lift
160 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
0.75 hp
Overview
Product Category
Water Pump
Assembly Required
Yes
Weight
27 Pounds
Consumer Warranty
3 Years
Product Length
22.97 Inches
Product Width
3.81 Inches
Accessories
Control Box
Yes
