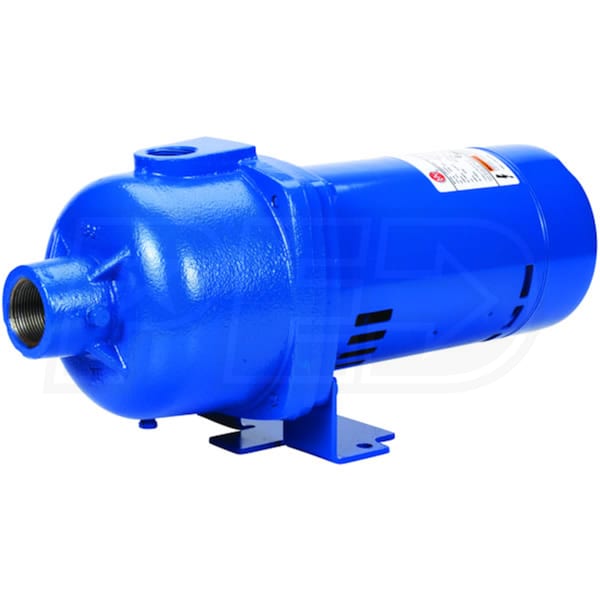

Lancaster Pump SKS75 - 17.5 GPM 3/4 HP Cast Iron Shallow Well Jet Pump
Model: SKS75
4.0 out of 54.0 out of 54.0 out of 54.0 out of 54.0 out of 5
Number of Reviews(1)
Write a Review
$397.00
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to California or any destination outside of the United States

Share
  • Product Description
  • 1
    Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
1-1/4"
Style
Shallow Well Pumps
GPM
17.5
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
17.5 Gallons
Features
Features
  • Keystone 3/4 HP Single-Stage Shallow Well Jet Pump
  • Provides optimal pumping at lifts/depths up to 25'
  • Heavy Duty Cast Iron Construction
  • Gets you much longer life compared to thermoplastic pumps
  • 115/230-Volt Dual Voltage Motor
  • Voltage selector switch allows for easy right under motor cover
  • 3/4 HP Square Flange Motor w/ Capacitor Start
  • Capacitor provides extra torque for easier motor starting
  • Thermal & Overload Protection w/ Automatic Reset
  • Prevents significant damage to the motor during operation
  • Thermoplastic Impeller, Diffuser & In-Line Nozzle/Venturi Valve
  • Engineered for increased overall output and efficiency
  • Stainless Threaded Motor Shaft & Upper/Lower Ball Bearings
  • Minimizes corrosion and provides smoother and cooler operation
  • 1" FNPT Discharge
  • Easily connect this pump to most residential plumbing apps.
  • Built-In Drain Plug
  • Allows for easy servicing and winterizing
  • Note* Includes 20/40 Pressure Switch (Not Shown)
  • 3-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
17.5 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
64
Submersible
No
Engine
Oil-Cooled
No
Horsepower
0.75 hp
Overview
Assembly Required
Yes
Weight
34.5 Pounds
Consumer Warranty
3 Years
Product Length
17.31 Inches
Product Width
6.75 Inches
Product Height
8.2 Inches
Additional Model Numbers
1-SKS75, SKS75

Inlet Size
1-1/4"
Style
Shallow Well Pumps
GPM
17.5
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
17.5 Gallons
Features
Features
  • Keystone 3/4 HP Single-Stage Shallow Well Jet Pump
  • Provides optimal pumping at lifts/depths up to 25'
  • Heavy Duty Cast Iron Construction
  • Gets you much longer life compared to thermoplastic pumps
  • 115/230-Volt Dual Voltage Motor
  • Voltage selector switch allows for easy right under motor cover
  • 3/4 HP Square Flange Motor w/ Capacitor Start
  • Capacitor provides extra torque for easier motor starting
  • Thermal & Overload Protection w/ Automatic Reset
  • Prevents significant damage to the motor during operation
  • Thermoplastic Impeller, Diffuser & In-Line Nozzle/Venturi Valve
  • Engineered for increased overall output and efficiency
  • Stainless Threaded Motor Shaft & Upper/Lower Ball Bearings
  • Minimizes corrosion and provides smoother and cooler operation
  • 1" FNPT Discharge
  • Easily connect this pump to most residential plumbing apps.
  • Built-In Drain Plug
  • Allows for easy servicing and winterizing
  • Note* Includes 20/40 Pressure Switch (Not Shown)
  • 3-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
17.5 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
64
Submersible
No
Engine
Oil-Cooled
No
Horsepower
0.75 hp
Overview
Assembly Required
Yes
Weight
34.5 Pounds
Consumer Warranty
3 Years
Product Length
17.31 Inches
Product Width
6.75 Inches
Product Height
8.2 Inches
Additional Model Numbers
1-SKS75, SKS75
Product Specs
+
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
17.5 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
64
Submersible
No
Engine
Oil-Cooled
No
Horsepower
0.75 hp
Overview
Assembly Required
Yes
Weight
34.5 Pounds
Consumer Warranty
3 Years
Product Length
17.31 Inches
Product Width
6.75 Inches
Product Height
8.2 Inches
Additional Model Numbers
1-SKS75, SKS75
