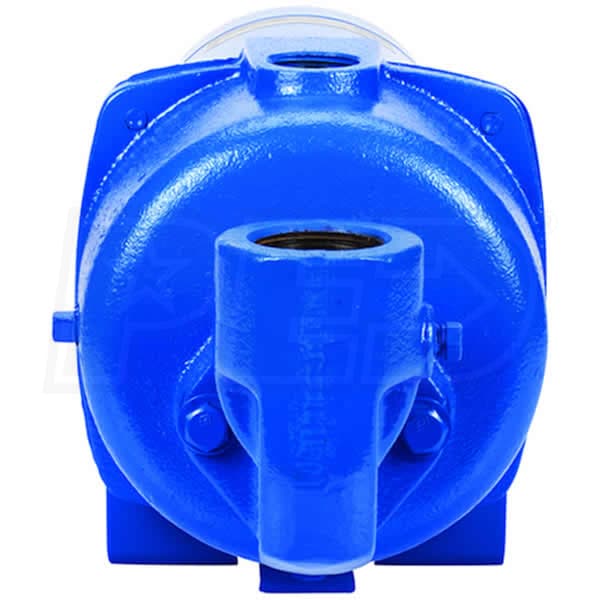

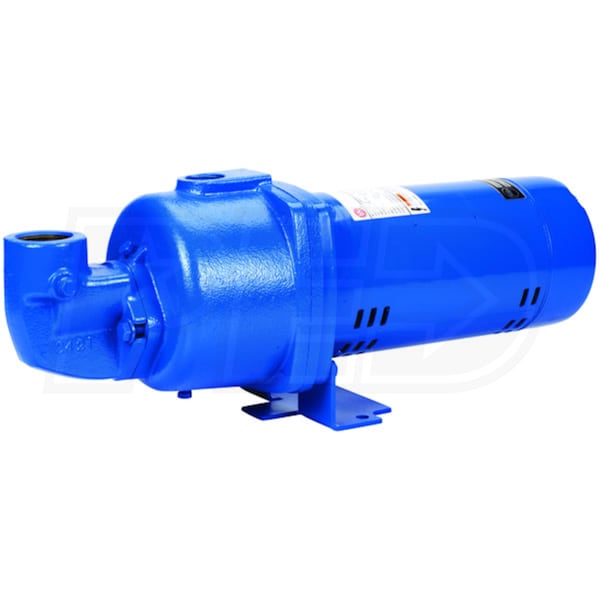

Lancaster Pump SKS100 - 24.7 GPM 1 HP Cast Iron Shallow Well Jet Pump

Model:

SKS100

Write A Review
$554.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Lancaster Pump SKS100 -  24.7 GPM 1 HP Cast Iron Shallow Well Jet Pump
Lancaster Pump SKS100 - 24.7 GPM 1 HP Cast Iron Shallow Well Jet Pump
Model: SKS100
$554.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1-1/4 Inch

Style

Shallow Well

GPM

24.7 Gallons

  • Keystone 1 HP Single-Stage Shallow Well Jet Pump
  • Provides optimal pumping at lifts/depths up to 25'
  • Heavy Duty Cast Iron Construction
  • Gets you much longer life compared to thermoplastic pumps
  • 115/230-Volt Dual Voltage Motor
  • Voltage selector switch allows for easy right under motor cover
  • 1 HP Square Flange Motor w/ Capacitor Start
  • Capacitor provides extra torque for easier motor starting
  • Thermal & Overload Protection w/ Automatic Reset
  • Prevents significant damage to the motor during operation
  • Thermoplastic Impeller, Diffuser & In-Line Nozzle/Venturi Valve
  • Engineered for increased overall output and efficiency
  • Stainless Threaded Motor Shaft & Upper/Lower Ball Bearings
  • Minimizes corrosion and provides smoother and cooler operation
  • 1" FNPT Discharge
  • Easily connect this pump to most residential plumbing apps.
  • Built-In Drain Plug
  • Allows for easy servicing and winterizing
  • Note* Includes 20/40 Pressure Switch (Not Shown)
  • 3-Year Warranty

Specifications

SKS100
specs product image PID-57830
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
24.7 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
58
Submersible
No
Engine
Oil-Cooled
No
Horsepower
1 hp
Overview
Product Category
Water Pump
Assembly Required
Yes
Weight
43 Pounds
Consumer Warranty
3 Years
Product Length
21.25 Inches
Product Width
6.75 Inches
Product Height
8.2 Inches
Additional Model Numbers

1-SKS100, SKS100
