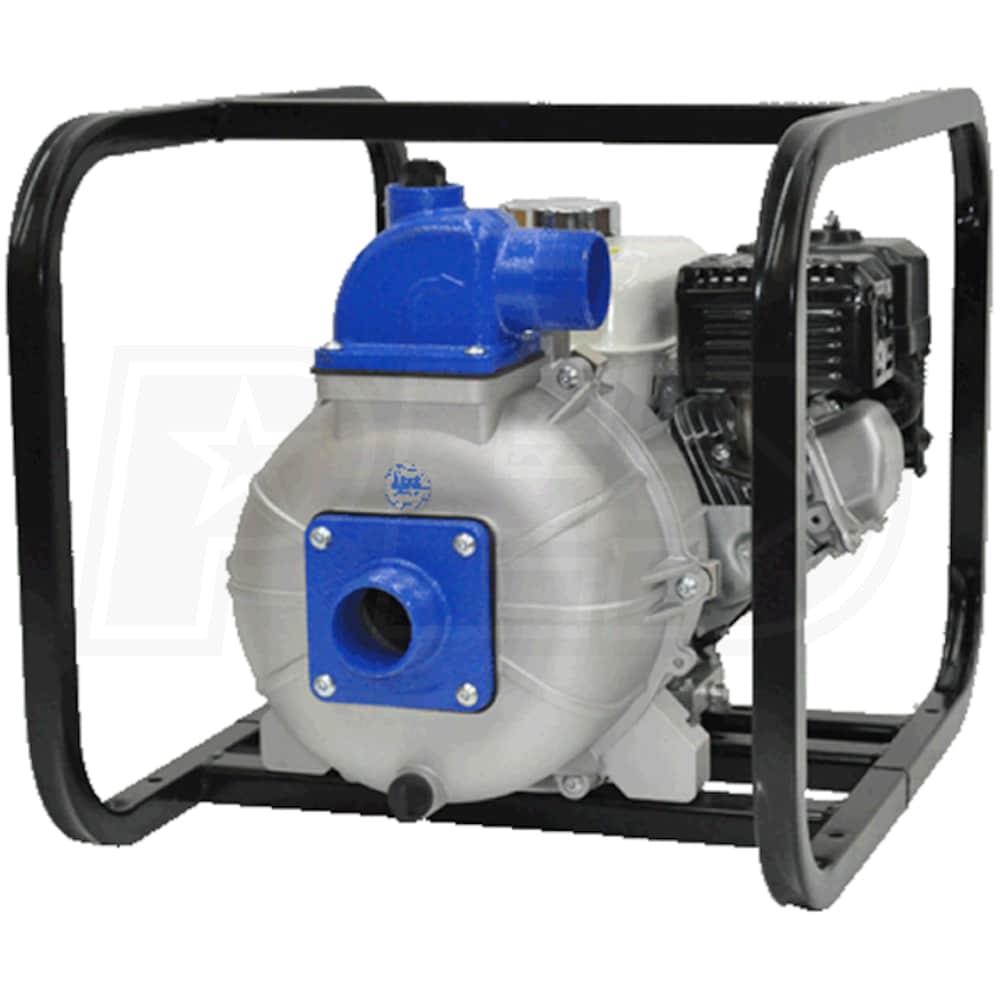

IPT Pumps 2P5XHR - 120 GPM (2") High Pressure Water Pump w/ Honda GX160 Engine
Model: 2P5XHR
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
2"
Style

GPM
120
Gallons
Engine
Inlet Size
2"
Style
Dewatering
GPM
120 Gallons
Engine
Honda GX
Features
Features
- IPT 2-Inch Portable, Gas-Powered High-Pressure Water Pump
- Designed for sprinkler, irrigation and firefighting applications; Provides up to 90 PSI
- Commercial Grade Honda OHV GX160 4-Cycle Engine
- Reliable, technologically advanced & easy to start
- Provides excellent torque & fuel efficiency
- Protected By Honda Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- Helps to prevent engine seizure due to a low oil condition
- Large, Cast Aluminum Pump Casing w/ Cast Iron Volute
- Increases pump capacity & helps resist abrasion for maximum pump life
- High-Efficiency Closed, Cast Aluminum Impeller
- Allows for increase head-lift and pressure (PSI)
- Built-in check valve helps provide quick pump priming
- 2-Inch Heavy-Duty Male NPT Suction & Discharge Ports
- Removable design allows ports to be replaced if damaged/stripped
- Adjustable Discharge Flange
- Versatile design, rotates in 90° increments for ease of use
- EPDM/EPR Mechanical Seal w/ Carbon & Ceramic Faces
- Provides extended seal life in clear water applications
- One Tool Serviceability (Tool Included)
- Makes this pump extremely easy to service and pump maintenance
- Heavy Duty Steel Roll Frame w/ Vibration Dampening Feet
- Protects the pump/engine during transportation & operation
- Helps prevent "pump-walk" when pump is running
- 1-Year Limited Warranty
Specifications
Pump
Gallons Per Minute
120 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Aluminum
Handles Solids
No
Suction Head
26 Feet
Maximum PSI
90
Total Head Lift
215 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
163 cc
Fuel Tank Size
.82 Gallons
Run Time
2.8 Hours
Consumer Engine Warranty
2 Years
Accessories
Tool Kit
Yes
Strainer
No
Float Switch
No
Hose Couplings
No
Hose
Sold Separately
Hose Bands
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
90 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
24 Inches
Product Width
19.2 Inches
Product Height
18.6 Inches
UPC
726846519222
Inlet Size
2"
Style

GPM
120
Gallons
Engine
Inlet Size
2"
Style
Dewatering
GPM
120 Gallons
Engine
Honda GX
Features
Features
- IPT 2-Inch Portable, Gas-Powered High-Pressure Water Pump
- Designed for sprinkler, irrigation and firefighting applications; Provides up to 90 PSI
- Commercial Grade Honda OHV GX160 4-Cycle Engine
- Reliable, technologically advanced & easy to start
- Provides excellent torque & fuel efficiency
- Protected By Honda Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- Helps to prevent engine seizure due to a low oil condition
- Large, Cast Aluminum Pump Casing w/ Cast Iron Volute
- Increases pump capacity & helps resist abrasion for maximum pump life
- High-Efficiency Closed, Cast Aluminum Impeller
- Allows for increase head-lift and pressure (PSI)
- Built-in check valve helps provide quick pump priming
- 2-Inch Heavy-Duty Male NPT Suction & Discharge Ports
- Removable design allows ports to be replaced if damaged/stripped
- Adjustable Discharge Flange
- Versatile design, rotates in 90° increments for ease of use
- EPDM/EPR Mechanical Seal w/ Carbon & Ceramic Faces
- Provides extended seal life in clear water applications
- One Tool Serviceability (Tool Included)
- Makes this pump extremely easy to service and pump maintenance
- Heavy Duty Steel Roll Frame w/ Vibration Dampening Feet
- Protects the pump/engine during transportation & operation
- Helps prevent "pump-walk" when pump is running
- 1-Year Limited Warranty
Specifications
Pump
Gallons Per Minute
120 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Aluminum
Handles Solids
No
Suction Head
26 Feet
Maximum PSI
90
Total Head Lift
215 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
163 cc
Fuel Tank Size
.82 Gallons
Run Time
2.8 Hours
Consumer Engine Warranty
2 Years
Accessories
Tool Kit
Yes
Strainer
No
Float Switch
No
Hose Couplings
No
Hose
Sold Separately
Hose Bands
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
90 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
24 Inches
Product Width
19.2 Inches
Product Height
18.6 Inches
UPC
726846519222
Product Specs
+−
Specifications
Pump
Gallons Per Minute
120 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Aluminum
Handles Solids
No
Suction Head
26 Feet
Maximum PSI
90
Total Head Lift
215 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
163 cc
Fuel Tank Size
.82 Gallons
Run Time
2.8 Hours
Consumer Engine Warranty
2 Years
Accessories
Tool Kit
Yes
Strainer
No
Float Switch
No
Hose Couplings
No
Hose
Sold Separately
Hose Bands
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
90 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
24 Inches
Product Width
19.2 Inches
Product Height
18.6 Inches
UPC
726846519222
