Product Description
+−
Inlet Size
1-1/2"
Style

GPM
74
Gallons
Engine
Inlet Size
1-1/2"
Style
Dewatering
GPM
74 Gallons
Engine
Honda
Features
Features
- Easy Starting 49cc Honda GXH50 Mini 4-Cycle Engine
- Uses regular gasoline - no need to mix oil & gas
- OHV Design
- Provides excellent torque & fuel efficiency
- Incredibly quiet & virtually smoke-free
- Honda Oil Alert® Protection
- Alerts you or shuts engine down if oil reaches an unsafe level
- Aluminum Volute & Impeller
- Provides durability and reduces overall weight
- Carbon Ceramic Mechanical Seal
- Increased abrasion resistance and lower maintenance
- Lightweight Design
- Weighs only 20 lbs.
- Standard Transport Handle
- Makes this pump easy to move around
- Includes:
- Strainer
- Hose Clamps
- EPA & CARB Compliant
- 2-Year Residential Warranty & 1-Year Commercial Warranty
Specifications
Pump
Gallons Per Minute
74 Gallons
Inlet Diameter
1-1/2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Aluminum
Handles Solids
No
Suction Head
26 Feet
Maximum PSI
52
Total Head Lift
121 Feet
Submersible
No
Engine
Engine Brand
Honda
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
49 cc
Fuel Tank Size
0.2 Gallons
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Accessories
Tool Kit
No
Strainer
Yes
Float Switch
No
Hose Couplings
No
Hose
Sold Separately
Hose Bands
Yes
Transport Handle
Yes
Wheel Kit
No
Overview
Weight
20 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Length
12.8 Inches
Product Width
10.8 Inches
Product Height
14.8 Inches
UPC
786102006620
Additional Model Numbers
WX15, WX15TA
Inlet Size
1-1/2"
Style

GPM
74
Gallons
Engine
Inlet Size
1-1/2"
Style
Dewatering
GPM
74 Gallons
Engine
Honda
Features
Features
- Easy Starting 49cc Honda GXH50 Mini 4-Cycle Engine
- Uses regular gasoline - no need to mix oil & gas
- OHV Design
- Provides excellent torque & fuel efficiency
- Incredibly quiet & virtually smoke-free
- Honda Oil Alert® Protection
- Alerts you or shuts engine down if oil reaches an unsafe level
- Aluminum Volute & Impeller
- Provides durability and reduces overall weight
- Carbon Ceramic Mechanical Seal
- Increased abrasion resistance and lower maintenance
- Lightweight Design
- Weighs only 20 lbs.
- Standard Transport Handle
- Makes this pump easy to move around
- Includes:
- Strainer
- Hose Clamps
- EPA & CARB Compliant
- 2-Year Residential Warranty & 1-Year Commercial Warranty
Specifications
Pump
Gallons Per Minute
74 Gallons
Inlet Diameter
1-1/2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Aluminum
Handles Solids
No
Suction Head
26 Feet
Maximum PSI
52
Total Head Lift
121 Feet
Submersible
No
Engine
Engine Brand
Honda
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
49 cc
Fuel Tank Size
0.2 Gallons
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Accessories
Tool Kit
No
Strainer
Yes
Float Switch
No
Hose Couplings
No
Hose
Sold Separately
Hose Bands
Yes
Transport Handle
Yes
Wheel Kit
No
Overview
Weight
20 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Length
12.8 Inches
Product Width
10.8 Inches
Product Height
14.8 Inches
UPC
786102006620
Additional Model Numbers
WX15, WX15TA
Product Specs
+−
Specifications
Pump
Gallons Per Minute
74 Gallons
Inlet Diameter
1-1/2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Aluminum
Handles Solids
No
Suction Head
26 Feet
Maximum PSI
52
Total Head Lift
121 Feet
Submersible
No
Engine
Engine Brand
Honda
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
49 cc
Fuel Tank Size
0.2 Gallons
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Accessories
Tool Kit
No
Strainer
Yes
Float Switch
No
Hose Couplings
No
Hose
Sold Separately
Hose Bands
Yes
Transport Handle
Yes
Wheel Kit
No
Overview
Weight
20 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Length
12.8 Inches
Product Width
10.8 Inches
Product Height
14.8 Inches
UPC
786102006620
Additional Model Numbers
WX15, WX15TA
Product Q&A
(3)
+−

Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
Can the Honda WX15T be used to transfer maple sap?
David S.
from New York
February 09, 2017
Answer
Yes it can! As a matter of fact, the Honda WX15 and WX10 models are two of our most popular models for this application. You just need to insure that you are not exceeding the rated specs of the pumps.
Was this answer helpful?
Yes

0
No

0
+−
i need a pump for watering yard . We can haul water from the treatment plant for irrigation .. I have a 500 gallon tank mounted onto a trailer and I want to water my lawn an planters . Not sure what size pump , electric / gas . we are not allowed to plumb into sprinkler system , so i will be irrigating by hose .
Greg Bailey
from California
June 30, 2016
Answer
Greg,
Thank you for your interest in Water Pumps Direct. Before I can answer your question, I would need to know the following:
Total head (suction & discharge lift)-
Total pumping distance from the water source to the pump and from the pump to the furthest sprinkler head-
Piping diameter on your suction and discharge (if already laid)-
Total GPM & PSI requirements-
Once you can provide this information, I'll be happy to assist you further.
Thank you for your interest in Water Pumps Direct. Before I can answer your question, I would need to know the following:
Total head (suction & discharge lift)-
Total pumping distance from the water source to the pump and from the pump to the furthest sprinkler head-
Piping diameter on your suction and discharge (if already laid)-
Total GPM & PSI requirements-
Once you can provide this information, I'll be happy to assist you further.
Was this answer helpful?
Yes

0
No

0
+−
Would this pump work to pump water with small amount of solids in?
Marcus G
from Indiana
April 03, 2016
Answer
The Honda WX15 is not designed to handle any solids. That said, if you have fine sediment in your water, this should not be an issue.
If you have any other questions, please let me know.
If you have any other questions, please let me know.
Was this answer helpful?
Yes

0
No

0
Recommended Accessories
+−

Expert Recommended Accessories
Hand Picked By Our Expert Jim
Required Accessories
Add All Required
Optional Accessories
How-To Articles
+−
By Jim O.
Manuals
+−
+
Ask Jim, Our Product Expert, A Question!
*Required Fields

+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.

Media Gallery

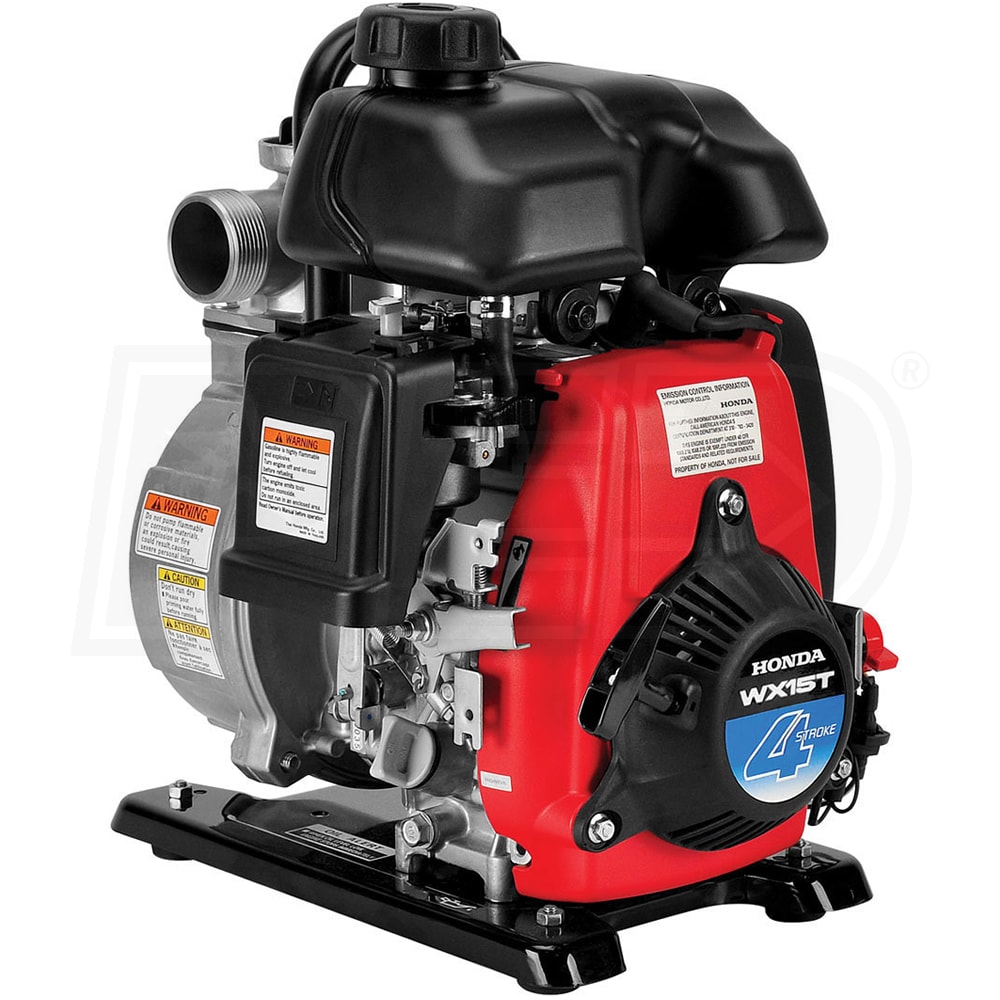

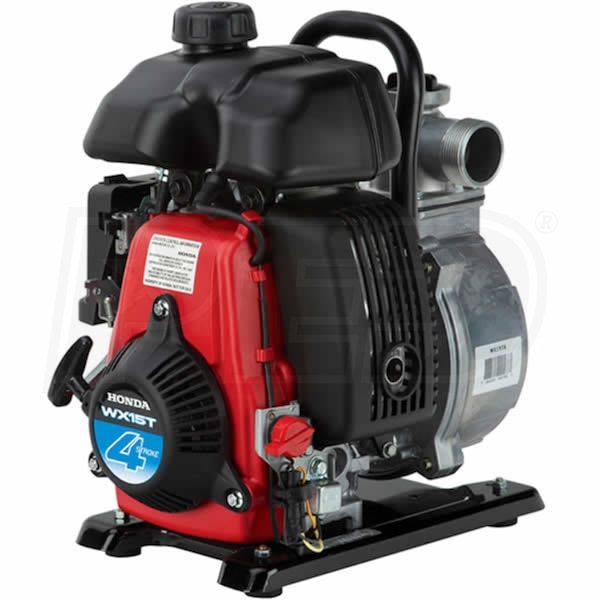

Honda WX15TA - 74 GPM (1.5") Water Pump






×
