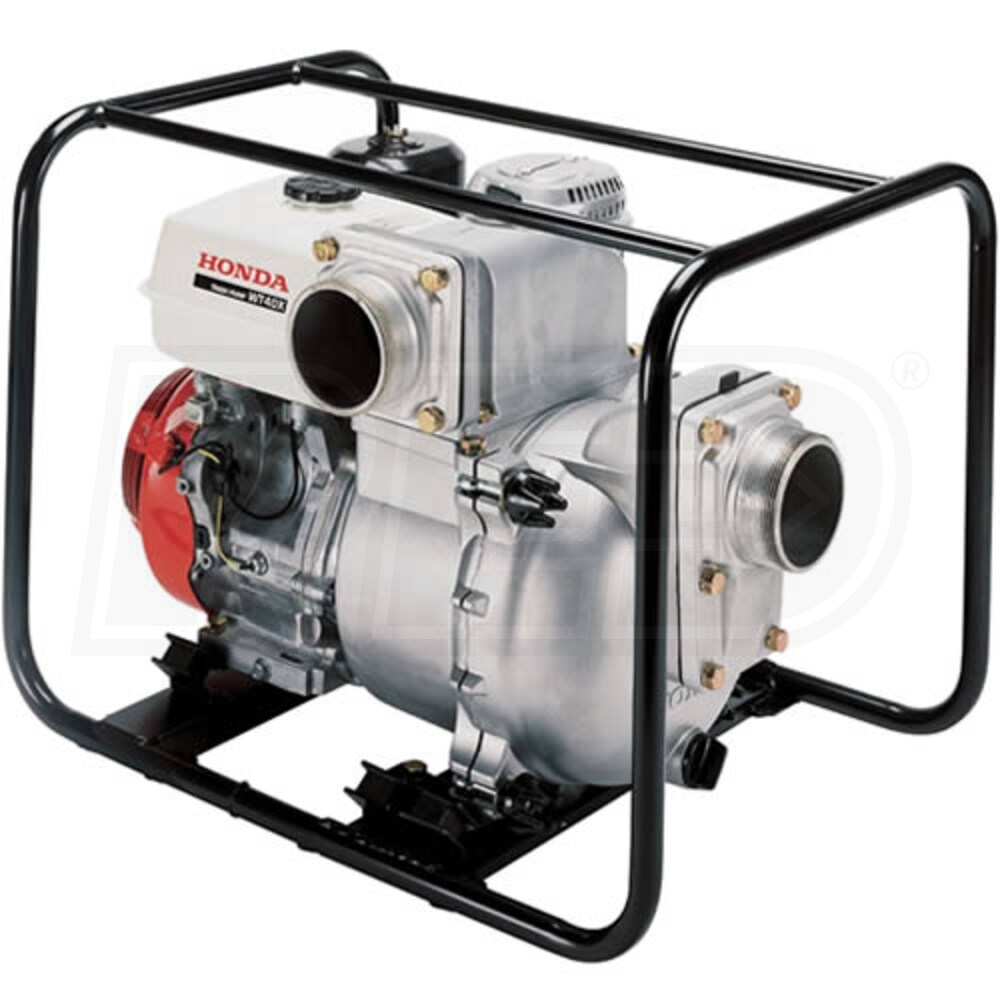

Honda WT40XK3A - 433 GPM (4") Heavy Duty Trash Pump
Honda WT40XK3A - 433 GPM (4") Heavy Duty Trash Pump
+
Share This Product
-
Product Description
-
Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
4"
Style
GPM
433
Gallons
Engine
Inlet Size
4"
Style
Trash
GPM
433 Gallons
Engine
Honda GX
Features
Features
- Heavy-Duty 4" Construction Trash Pump
- Handles solids up to 1-1/16"
- Commercial Grade 337cc Honda OHV GX340 4-Cycle Engine
- Provides excellent torque & fuel efficiency
- Protected By Honda Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- Helps to prevent engine seizure due to a low oil condition
- Rigid-Mounted Cast Iron Pump Volute
- Provides enhanced durability
- Conical Cast Iron Impeller & Replaceable SS Wear Plate
- Provides improved priming, durability & extends pump life
- Silicone-Carbide Seals
- Abrasion-resistant design for extended wear
- Quick-Release Clean-Out w/ Easy Access Port
- Included Multi-tool for easy on-site servicing & cleaning
- Rugged Full Frame & High Performance Mounts
- Protects the pump/engine on all sides & reduces vibration
- EPA Approved & CARB Compliant
- 3-Year Residential & Commercial Warranty
Specifications
Pump
Gallons Per Minute
433 Gallons
Inlet Diameter
4"
Outlet Diameter
4"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
1.06 inch
Suction Head
26 Feet
Maximum PSI
37
Total Head Lift
85 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Continuous Operation
Yes
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
337 cc
Fuel Tank Size
1.6 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Tool Kit
Yes
Strainer
Yes
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
172 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
28.9 Inches
Product Width
21.1 Inches
Product Height
22.2 Inches
UPC
786102001786
Additional Model Numbers
WT40, WT40XK3A
Inlet Size
4"
Style
GPM
433
Gallons
Engine
Inlet Size
4"
Style
Trash
GPM
433 Gallons
Engine
Honda GX
Features
Features
- Heavy-Duty 4" Construction Trash Pump
- Handles solids up to 1-1/16"
- Commercial Grade 337cc Honda OHV GX340 4-Cycle Engine
- Provides excellent torque & fuel efficiency
- Protected By Honda Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- Helps to prevent engine seizure due to a low oil condition
- Rigid-Mounted Cast Iron Pump Volute
- Provides enhanced durability
- Conical Cast Iron Impeller & Replaceable SS Wear Plate
- Provides improved priming, durability & extends pump life
- Silicone-Carbide Seals
- Abrasion-resistant design for extended wear
- Quick-Release Clean-Out w/ Easy Access Port
- Included Multi-tool for easy on-site servicing & cleaning
- Rugged Full Frame & High Performance Mounts
- Protects the pump/engine on all sides & reduces vibration
- EPA Approved & CARB Compliant
- 3-Year Residential & Commercial Warranty
Specifications
Pump
Gallons Per Minute
433 Gallons
Inlet Diameter
4"
Outlet Diameter
4"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
1.06 inch
Suction Head
26 Feet
Maximum PSI
37
Total Head Lift
85 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Continuous Operation
Yes
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
337 cc
Fuel Tank Size
1.6 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Tool Kit
Yes
Strainer
Yes
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
172 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
28.9 Inches
Product Width
21.1 Inches
Product Height
22.2 Inches
UPC
786102001786
Additional Model Numbers
WT40, WT40XK3A
Product Specs
+−
Specifications
Pump
Gallons Per Minute
433 Gallons
Inlet Diameter
4"
Outlet Diameter
4"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
1.06 inch
Suction Head
26 Feet
Maximum PSI
37
Total Head Lift
85 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Continuous Operation
Yes
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
337 cc
Fuel Tank Size
1.6 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Tool Kit
Yes
Strainer
Yes
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
172 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
28.9 Inches
Product Width
21.1 Inches
Product Height
22.2 Inches
UPC
786102001786
Additional Model Numbers
WT40, WT40XK3A
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(2)
+−
Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
How will I know when the oil low alert system is engaged?
Kevin
from Florida
February 05, 2017
Answer
The Oil Alert system is designed to prevent engine damage caused by an insufficient amount of oil in the crankcase. Before the oil level in the crankcase can fall below a safe limit, the Oil Alert system will automatically stop the engine (the ignition switch will remain in the ON position). If the engine stops and will not restart, check the engine oil level (page 29 in the pump manual) before troubleshooting in other areas.
+−
How long will it run on a tank of gas?
Brent
from Alabama
November 08, 2016
Answer
That's a hard question to answer Brent and there really isn't a way to gauge it. Run times are based on how easy or how hard the engine is running. If you're pumping a short distance with minimal head lift, you may see about 2 to 3 hours of run time, but if you're pumping very long distances and requiring a lot of lift, that may dwindle to 60 - 90 minutes of run time. You might equate it to how you drive your car? If you accelerate fast and brake the same and often, your gas mileage suffers. It's the same with any gas powered piece of equipment. The harder you work it, the less run time you will realize.
If you have any other questions, please let me know.
If you have any other questions, please let me know.
