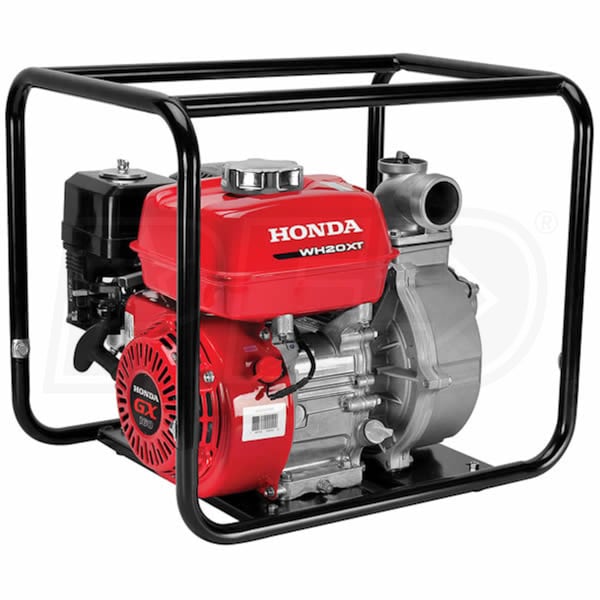

Honda WH20XTAF - 119 GPM (2") High Pressure Water Pump

Honda WH20XTAF - 119 GPM (2") High Pressure Water Pump
Model: WH20
$699.00
Only 1 In-Stock
Ships Friday, May 25th
Free Shipping &
Tax-Free (Except IL)
Only 1 In-Stock
Ships Friday, May 25th
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 17
    Reviews
  • 3
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
2"
Style
Dewatering Pumps
GPM
119
Gallons
Engine
Inlet Size
2"
Style
Dewatering
GPM
119 Gallons
Engine
Honda GX
Features
Features
  • High Pressure, Centrifugal, Self-Priming Water Pump - 64 PSI Max
  • Perfect for high-pressure applications like sprinklers or nozzles
  • Commercial Grade 163cc Honda OHV GX160 4-Cycle Engine
  • Reliable, technologically advanced & easy to start
  • Provides excellent torque & fuel efficiency
  • Rigged-Mounted Cast Iron Volute & Cast Iron Impeller
  • Provides enhanced durability against wear & tear
  • Carbon/Ceramic Seals
  • Abrasion-resistant designed for extended wear
  • Lightweight Aluminum Case
  • Provides a sturdy base and reduces over all weight
  • Tubular Steel Roll Cage
  • Heavy-duty design provides protection and makes it easier to move
  • EPA Approved & CARB Compliant
  • 3-Year Residential & Commercial Warranty
  • Strainer Included
Specifications
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
No
CC
163 cc
Fuel Tank Size
0.825 Gallons
Run Time
1.5 Hours
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Pump
Gallons Per Minute
119 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Cast Iron
Handles Solids
No
Suction Head
26 Feet
Total Head Lift
148 Feet
Maximum PSI
64
Submersible
No
Accessories
Strainer
Yes
Overview
Made in USA
No
Weight
60 Pounds
Product Length
20.5 Inches
Product Width
15.7 Inches
Product Height
18.1 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
786102001700

Inlet Size
2"
Style
Dewatering Pumps
GPM
119
Gallons
Engine
Inlet Size
2"
Style
Dewatering
GPM
119 Gallons
Engine
Honda GX
Features
Features
  • High Pressure, Centrifugal, Self-Priming Water Pump - 64 PSI Max
  • Perfect for high-pressure applications like sprinklers or nozzles
  • Commercial Grade 163cc Honda OHV GX160 4-Cycle Engine
  • Reliable, technologically advanced & easy to start
  • Provides excellent torque & fuel efficiency
  • Rigged-Mounted Cast Iron Volute & Cast Iron Impeller
  • Provides enhanced durability against wear & tear
  • Carbon/Ceramic Seals
  • Abrasion-resistant designed for extended wear
  • Lightweight Aluminum Case
  • Provides a sturdy base and reduces over all weight
  • Tubular Steel Roll Cage
  • Heavy-duty design provides protection and makes it easier to move
  • EPA Approved & CARB Compliant
  • 3-Year Residential & Commercial Warranty
  • Strainer Included
Specifications
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
No
CC
163 cc
Fuel Tank Size
0.825 Gallons
Run Time
1.5 Hours
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Pump
Gallons Per Minute
119 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Cast Iron
Handles Solids
No
Suction Head
26 Feet
Total Head Lift
148 Feet
Maximum PSI
64
Submersible
No
Accessories
Strainer
Yes
Overview
Made in USA
No
Weight
60 Pounds
Product Length
20.5 Inches
Product Width
15.7 Inches
Product Height
18.1 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
786102001700
Product Specs
+
Specifications
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
No
CC
163 cc
Fuel Tank Size
0.825 Gallons
Run Time
1.5 Hours
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Pump
Gallons Per Minute
119 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Cast Iron
Handles Solids
No
Suction Head
26 Feet
Total Head Lift
148 Feet
Maximum PSI
64
Submersible
No
Accessories
Strainer
Yes
Overview
Made in USA
No
Weight
60 Pounds
Product Length
20.5 Inches
Product Width
15.7 Inches
Product Height
18.1 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
786102001700
Reviews
(17)
+
Honda WH20 Reviews & Ratings
86% of Reviewers Recommend This Product
Product Q&A
(3)
+
Search Product Q&A's Answered by Jim, the Water Pump Expert
icon-social-fb1
+
The product description states a "strainer" comes with this pump. Please describe. Also what inline filter and screen size filter would you suggest be used with this pump if being used to withdraw water from a pond or creek?
Carl E
from Pennsylvania
January 24, 2017
Answer
Thank you for your email Carl! All Honda gas powered pumps include a suction strainer similar to THIS that are sized based on the allowable solid handling size that the given pump can handle. This strainer gets attached onto to the suction hose end that is in the pond, creek or any other water source you may be utilizing. These strainers will have the same size threaded NPT connection as the suction and discharge ports on the pump you purchase.
Since this strainer is included, there is really no need to include any other inline filter when using this pump.
If you have any other questions, please let me know.
+
How long will it run on a tank of gas?
Brent
from Alabama
November 08, 2016
Answer
That's a hard question to answer Brent and there really isn't a way to gauge it. Run times are based on how easy or how hard the engine is running. If you're pumping a short distance with minimal head lift, you may see about 2 to 3 hours of run time, but if you're pumping very long distances and requiring a lot of lift, that may dwindle to 60 - 90 minutes of run time. You might equate it to how you drive your car? If you accelerate fast and brake the same and often, your gas mileage suffers. It's the same with any gas powered piece of equipment. The harder you work it, the less run time you will realize.
If you have any other questions, please let me know.
+
at the max psi of 61 what would the GPM be for this pump?
Eliot H
from California
March 24, 2015
Answer

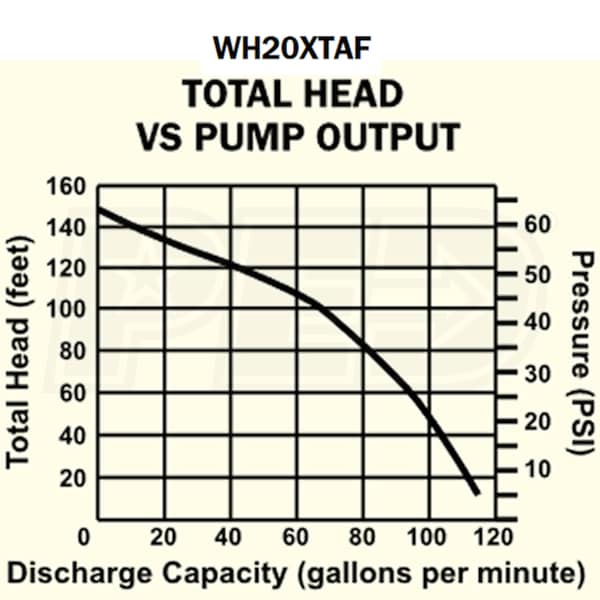

At max psi of 61 & 140' of head, the GPM for the Honda WH20 2" High Pressure Pump would be zero. The highest recommended head/psi would be more like 125' of head which equates to 51PSI and approximately 35GPM. This information can be found on page 8 of the PRODUCT SPECS. Typically, you want to work the pump within the middle 2/3 of the product performance curve.
If you have any other questions, please let me know.
