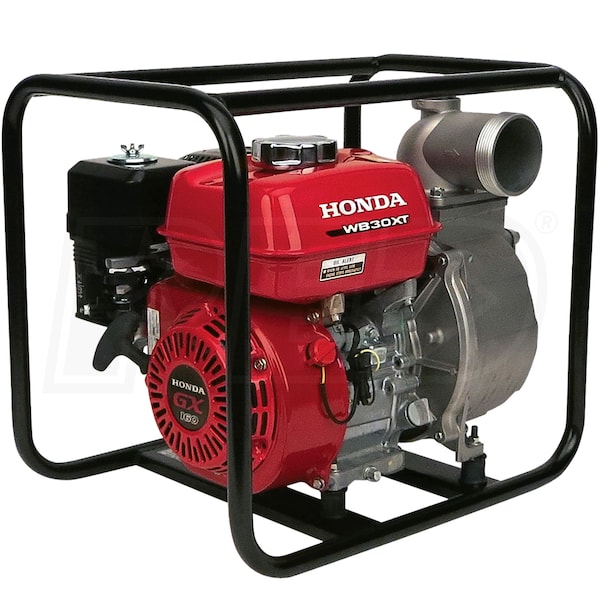

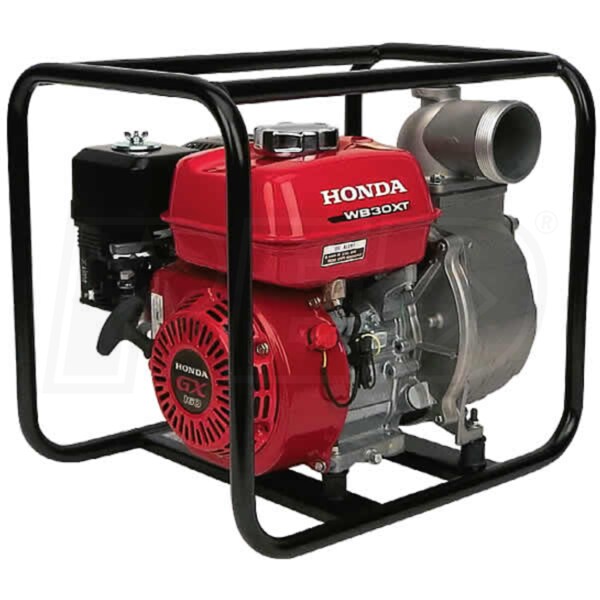

Honda WB30XT3A - 290 GPM (3") Water Pump
Honda WB30XT3A - 290 GPM (3") Water Pump
+
Share This Product
-
Product Description
-
22Reviews
-
4Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
3"
Style
GPM
290
Gallons
Engine
Inlet Size
3"
Style
Dewatering
GPM
290 Gallons
Engine
Honda GX
Features
Features
- 3" General Purpose Water Pump
- Centrifugal, self-priming design
- Commercial Grade 163cc Honda OHV GX160 4-Cycle Engine
- Reliable, technologically advanced & easy to start
- Provides excellent torque & fuel efficiency
- Protected By Honda Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- Helps to prevent engine seizure due to a low oil condition
- Improved 4-Vane Cast Iron Impeller & Volute
- Provides enhanced durability against wear & tear
- Silicone-Carbide Seals
- Abrasion-resistant designed for extended wear
- Isolation Mounted Engine & Pump
- Rubber feet minimize vibration for quieter operation
- Heavy Duty Full Frame Protection
- Protects the pump and engine on all sides
- EPA Approved & CARB Compliant
- 3-Year Residential & Commercial Warranty
- 3" Male NPT FINE Discharge Port
Specifications
Pump
Gallons Per Minute
290 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.3 inch
Suction Head
25 Feet
Maximum PSI
37
Total Head Lift
85 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Continuous Operation
Yes
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Fuel Tank Size
0.875 Gallons
Consumer Engine Warranty
3 Years
Accessories
Tool Kit
No
Strainer
Yes
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Wheel Kit
No
Overview
Weight
57 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
20.1 Inches
Product Width
15.2 Inches
Product Height
17.9 Inches
UPC
786102002547
Additional Model Numbers
WB30, WB30XT3A
Inlet Size
3"
Style
GPM
290
Gallons
Engine
Inlet Size
3"
Style
Dewatering
GPM
290 Gallons
Engine
Honda GX
Features
Features
- 3" General Purpose Water Pump
- Centrifugal, self-priming design
- Commercial Grade 163cc Honda OHV GX160 4-Cycle Engine
- Reliable, technologically advanced & easy to start
- Provides excellent torque & fuel efficiency
- Protected By Honda Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- Helps to prevent engine seizure due to a low oil condition
- Improved 4-Vane Cast Iron Impeller & Volute
- Provides enhanced durability against wear & tear
- Silicone-Carbide Seals
- Abrasion-resistant designed for extended wear
- Isolation Mounted Engine & Pump
- Rubber feet minimize vibration for quieter operation
- Heavy Duty Full Frame Protection
- Protects the pump and engine on all sides
- EPA Approved & CARB Compliant
- 3-Year Residential & Commercial Warranty
- 3" Male NPT FINE Discharge Port
Specifications
Pump
Gallons Per Minute
290 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.3 inch
Suction Head
25 Feet
Maximum PSI
37
Total Head Lift
85 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Continuous Operation
Yes
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Fuel Tank Size
0.875 Gallons
Consumer Engine Warranty
3 Years
Accessories
Tool Kit
No
Strainer
Yes
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Wheel Kit
No
Overview
Weight
57 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
20.1 Inches
Product Width
15.2 Inches
Product Height
17.9 Inches
UPC
786102002547
Additional Model Numbers
WB30, WB30XT3A
Product Specs
+−
Specifications
Pump
Gallons Per Minute
290 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.3 inch
Suction Head
25 Feet
Maximum PSI
37
Total Head Lift
85 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Continuous Operation
Yes
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Fuel Tank Size
0.875 Gallons
Consumer Engine Warranty
3 Years
Accessories
Tool Kit
No
Strainer
Yes
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Wheel Kit
No
Overview
Weight
57 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
20.1 Inches
Product Width
15.2 Inches
Product Height
17.9 Inches
UPC
786102002547
Additional Model Numbers
WB30, WB30XT3A
Product Q&A
(4)
+−
Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
What does the "total head lift" refer to?
Dennis F.
from Texas
March 29, 2017
Answer
Total head lift refers to the suction lift and discharge lift totaled together. The Honda WB30 is rated for a max suction lift of 25 feet at sea level and a total head lift of 85 feet. IF you were maxing out that suction lift, that would leave you a remainder of 60 feet on the discharge side of the pump, that it would handle. That said, it's not a good idea to max that out as it does work the pump to it's maximum capability. It also severely reduces the pump's GPM output. It's always best to work your pump within the middle 2/3 of the pump curve. The pump curve below may help to explain this but if you have any other questions, please let me know.
Was this answer helpful?
Yes
0
No
0
+−
How long will it run on a tank of gas?
Brent
from Alabama
November 08, 2016
Answer
That's a hard question to answer Brent and there really isn't a way to gauge it. Run times are based on how easy or how hard the engine is running. If you're pumping a short distance with minimal head lift, you may see about 2 to 3 hours of run time, but if you're pumping very long distances and requiring a lot of lift, that may dwindle to 60 - 90 minutes of run time. You might equate it to how you drive your car? If you accelerate fast and brake the same and often, your gas mileage suffers. It's the same with any gas powered piece of equipment. The harder you work it, the less run time you will realize.
If you have any other questions, please let me know.
If you have any other questions, please let me know.
Was this answer helpful?
Yes
0
No
0
+−
Jim,
Do these types of trash pumps have a throttle control on them or are they pumping wide open throttle at max gpm all the time? There are times when I may want to pump 70-100 gpm but in an emergency I may need to pump 200 gpm.
Do you have a better recommendation for a trash pump having similar specs. Better quality for similar price range??
Your input is greatly appreciated!
Best regards,
Gary M
from Texas
May 04, 2016
Answer
While many people may use the engine throttle to control your flow rates, this can actually damage the engine and pump. The best option would be to install a ball valve on the discharge port and use that to control you flow. As long as you are not closing that flow off more than 90%-100%, you will not harm the pump or engine. If you have any other questions, please let me know.
Was this answer helpful?
Yes
0
No
0
+−
Hi Jim,
I would like to use the 3" Honda WB30 pump, but want to deliver water from a river to a garden plot 1,400 ft. away. Covering that much distance with 3" hose is too expensive. Is it possible to use a reducer from the 3" pressure port coupling and reduce down to a 3/4 inch pex tubing? Would this hurt the pump? Using that smaller diameter tubing would be ideal on my wallet. Also if you reduce the pressure end, do you need the source end on the suction side to be the same 3/4 inch diameter?
James L
from Tennessee
March 31, 2014
Answer
Thank you for your interest in Water Pumps Direct. Standard dewatering pumps will effectively handle pumping distances of up to about 300 feet. Once you start exceeding that, you either need to find a more powerful pump or increase your discharge hose/piping in order to overcome the friction loss that is created inside the hose/piping. So, to answer your question, the Honda WB30 nor any other pump that we offer, would not handle your 1400 foot distance and by reducing the discharge as you mentioned, you will not only reduce any possible flow to zero, you would also add the possibility of severely damaging your pump, which would not be covered under any warranty. It is never recommended to reduce the suction and/or discharge hose/pipe from the original port size.
Was this answer helpful?
Yes
0
No
0
