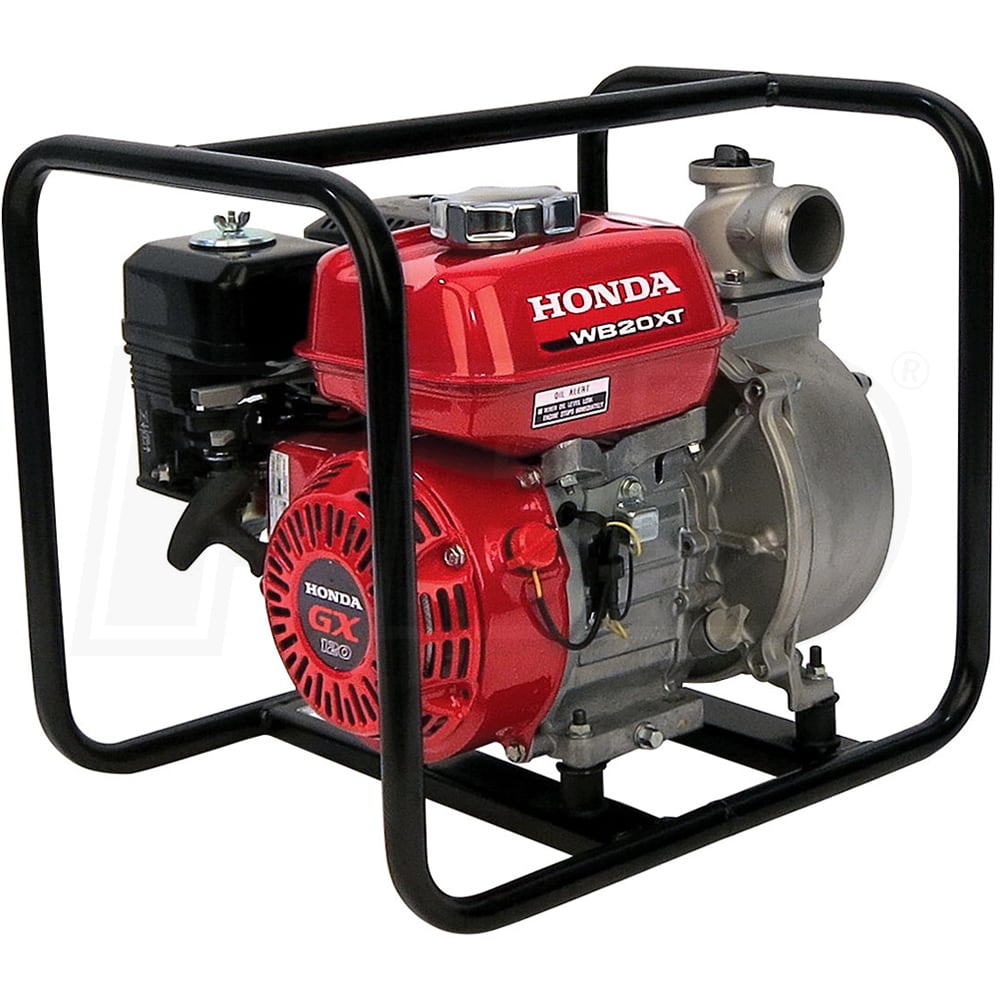

Honda WB20XT3A - 164 GPM (2") Water Pump

Close
Honda Water Pumps and Accessories
Model: WB20
(Based on expert analysis, manufacturer ratings and customer reviews)

4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
23 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
In-Stock In-Stock
Ships Tuesday, May 30th

Estimate Arrival
$429.00

  • Features
  • Specs
  • 3
    Q&A
  • 23
    Reviews
  • Articles
  • Shipping
  • Accessories

Inlet Size
2"
Style
Dewatering Pumps
GPM
164
Gallons
Engine
2" General Purpose Water Pump
Centrifugal, self-priming design

Commercial Grade 118cc Honda OHV GX120 4-Cycle Engine
Reliable, technologically advanced & easy to start
Provides excellent torque & fuel efficiency

Protected By Honda Oil Alert« Warning System
Alerts you or shuts engine down if oil reaches an unsafe level
Helps to prevent engine seizure due to a low oil condition

Improved 4-Vane Impeller/Volute Design
Provides enhanced durability against wear & tear

Silicone-Carbide Seals
Abrasion-resistant designed for extended wear

Isolation Mounted Engine & Pump
Rubber feet minimize vibration for quieter operation

Heavy Duty Full Frame Protection
Protects the pump and engine on all sides

EPA Approved & CARB Compliant

3-Year Residential & Commercial Warranty


Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Continuous Operation
Yes
Fuel Tank Size
0.5 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Pump
Gallons Per Minute
164 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.3 inch
Suction Head
25 Feet
Total Head Lift
105 Feet
Maximum PSI
45
Submersible
No
Accessories
Tool Kit
No
Strainer
Yes
Float Switch
No
Hose
Sold Separately
Hose Couplings
No
Hose Bands
No
Lifting Hook
No
Wheel Kit
No
Overview
Made in USA
No
Weight
46 Pounds
Product Length
17.9 Inches
Product Width
14.4 Inches
Product Height
16.5 Inches
Consumer Warranty
3 Years
UPC
786102002530
Model
WB20
Subject: Store ID: Product ID: Data Category: Brand Category:

*Ask Jim about the Honda WB20. Sorry, no repair questions:


*Name:


*State:


*Email:


 Receive Weekly How-To Tips & Specials


*Required Field Submit
  3 Questions
Q: How long will it run on a tank of gas?
by Brent from Alabama on November 08, 2016

A: That's a hard question to answer Brent and there really isn't a way to gauge it. Run times are based on how easy or how hard the engine is running. If you're pumping a short distance with minimal head lift, you may see about 2 to 3 hours of run time, but if you're pumping very long distances and requiring a lot of lift, that may dwindle to 60 - 90 minutes of run time. You might equate it to how you drive your car? If you accelerate fast and brake the same and often, your gas mileage suffers. It's the same with any gas powered piece of equipment. The harder you work it, the less run time you will realize.
If you have any other questions, please let me know.
by Jim, Product Expert
Q: Does this pump throttle down any?
by Brad A from Colorado on March 17, 2016

A: Most gas power pumps, including the Honda WB20, will have a throttle control however, we and the manufacturers do NOT recommend controlling your water flow by the throttle. Instead, it is better on the pump and engine if you install a ball valve on the discharge side and use this for your flow control. As long as you are not reducing your flow more than 90%-100%, you will not cause and harm or damage.
If you have any other questions, please let me know.
by Jim, Product Expert
Q: Hi Jim Is it okay to have the input 2 inch in and reduce the output to a 1 1/2? that would probably increase the PSI a little bit more too, right? or do I have to match both input and output with the same size hose? Thank you.
by Marc D from Minnesota on January 22, 2014

A: It is always recommended that you use the same diameter hose/piping as the suction and discharge ports on the pump. While it is sometimes necessary to reduce that diameter, it is NOT recommended that you do so by more than one size. In this case, 1-1/2" hose or piping would be the maximum reduction, While you may see an increased pressure due to the reduced piping, the pump will also see an increased backpressure on the pump. The more you reduce the hose/piping diameter, the more you increase this backpressure AND increase premature pump failure that would NOT be covered under warranty.
by Jim, Product Expert
