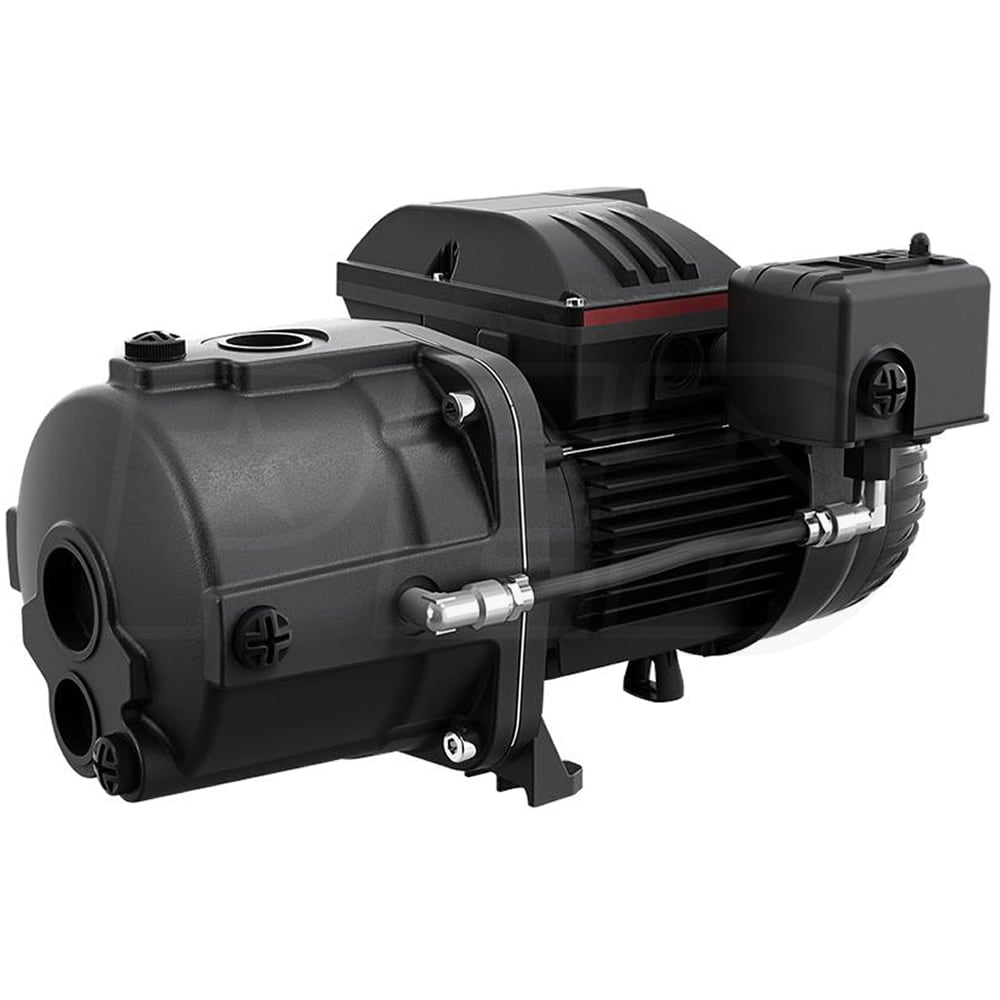

Grundfos JP07D-CI - 15 GPM 3/4 HP Cast Iron Convertible Well Jet Pump (85' Rated Head) 115/230V
Grundfos JP07D-CI - 15 GPM 3/4 HP Cast Iron Convertible Well Jet Pump (85' Rated Head) 115/230V
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
1-1/4"
Style
GPM
15
Gallons
Inlet Size
1-1/4"
Style
Convertible Jet
GPM
15 Gallons
Features
Features
- Grundfos JP07D-CI - 3/4 HP Cast Iron Convertible Well Jet Pump (115/230V)
- Ideal for use in pumping at depths of 25' or less
- Ideal for use in deep wells (25' to 90')*
- Rated 15 GPM @ 85' Head Lift; 177' Max Head Lift
- 115/230-Volt 3/4 HP Grundfos TEFC Motor
- Dual-voltage design allows for easy installation
- Built-in thermal overload for motor protection
- Includes Factory Pre-Wired 30/50 Pressure Switch
- Allows for easy integration to your current plumbing system
- Cast Iron Pump Housing
- Provides longer life compared to thermoplastic pumps
- Composite Impeller
- Engineered for increased output, efficiency & quieter operation
- Ceramic-Carbon Mechanical Seal
- Provides extended seal life in clear water applications
- Convenient Priming Plug
- Self-priming design requires initial water-fill
- Built-In Ejector Clean-Out Ports
- Makes it easy to keep this nozzle unclogged and debris free
- *Requires Deep Well Ejector Kit (Not Included)
- 2-Year Limited Warranty
Specifications
Motor
Voltage
115-230 Volt
Running Amps
4.67
Thermal Protection
Yes
Pump
Gallons Per Minute
15 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Composite
Handles Solids
No
Suction Head
90 Feet
Maximum PSI
87
Total Head Lift
177.2 Feet
Engine
Horsepower
0.75 hp
Accessories
Pressure Switch
Yes
Overview
Weight
28.7 Pounds
Consumer Warranty
2 Years
Product Length
15.77 Inches
Product Width
10.40 Inches
Product Height
8.5 Inches
Inlet Size
1-1/4"
Style
GPM
15
Gallons
Inlet Size
1-1/4"
Style
Convertible Jet
GPM
15 Gallons
Features
Features
- Grundfos JP07D-CI - 3/4 HP Cast Iron Convertible Well Jet Pump (115/230V)
- Ideal for use in pumping at depths of 25' or less
- Ideal for use in deep wells (25' to 90')*
- Rated 15 GPM @ 85' Head Lift; 177' Max Head Lift
- 115/230-Volt 3/4 HP Grundfos TEFC Motor
- Dual-voltage design allows for easy installation
- Built-in thermal overload for motor protection
- Includes Factory Pre-Wired 30/50 Pressure Switch
- Allows for easy integration to your current plumbing system
- Cast Iron Pump Housing
- Provides longer life compared to thermoplastic pumps
- Composite Impeller
- Engineered for increased output, efficiency & quieter operation
- Ceramic-Carbon Mechanical Seal
- Provides extended seal life in clear water applications
- Convenient Priming Plug
- Self-priming design requires initial water-fill
- Built-In Ejector Clean-Out Ports
- Makes it easy to keep this nozzle unclogged and debris free
- *Requires Deep Well Ejector Kit (Not Included)
- 2-Year Limited Warranty
Specifications
Motor
Voltage
115-230 Volt
Running Amps
4.67
Thermal Protection
Yes
Pump
Gallons Per Minute
15 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Composite
Handles Solids
No
Suction Head
90 Feet
Maximum PSI
87
Total Head Lift
177.2 Feet
Engine
Horsepower
0.75 hp
Accessories
Pressure Switch
Yes
Overview
Weight
28.7 Pounds
Consumer Warranty
2 Years
Product Length
15.77 Inches
Product Width
10.40 Inches
Product Height
8.5 Inches
Product Specs
+−
Specifications
Motor
Voltage
115-230 Volt
Running Amps
4.67
Thermal Protection
Yes
Pump
Gallons Per Minute
15 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Composite
Handles Solids
No
Suction Head
90 Feet
Maximum PSI
87
Total Head Lift
177.2 Feet
Engine
Horsepower
0.75 hp
Accessories
Pressure Switch
Yes
Overview
Weight
28.7 Pounds
Consumer Warranty
2 Years
Product Length
15.77 Inches
Product Width
10.40 Inches
Product Height
8.5 Inches
