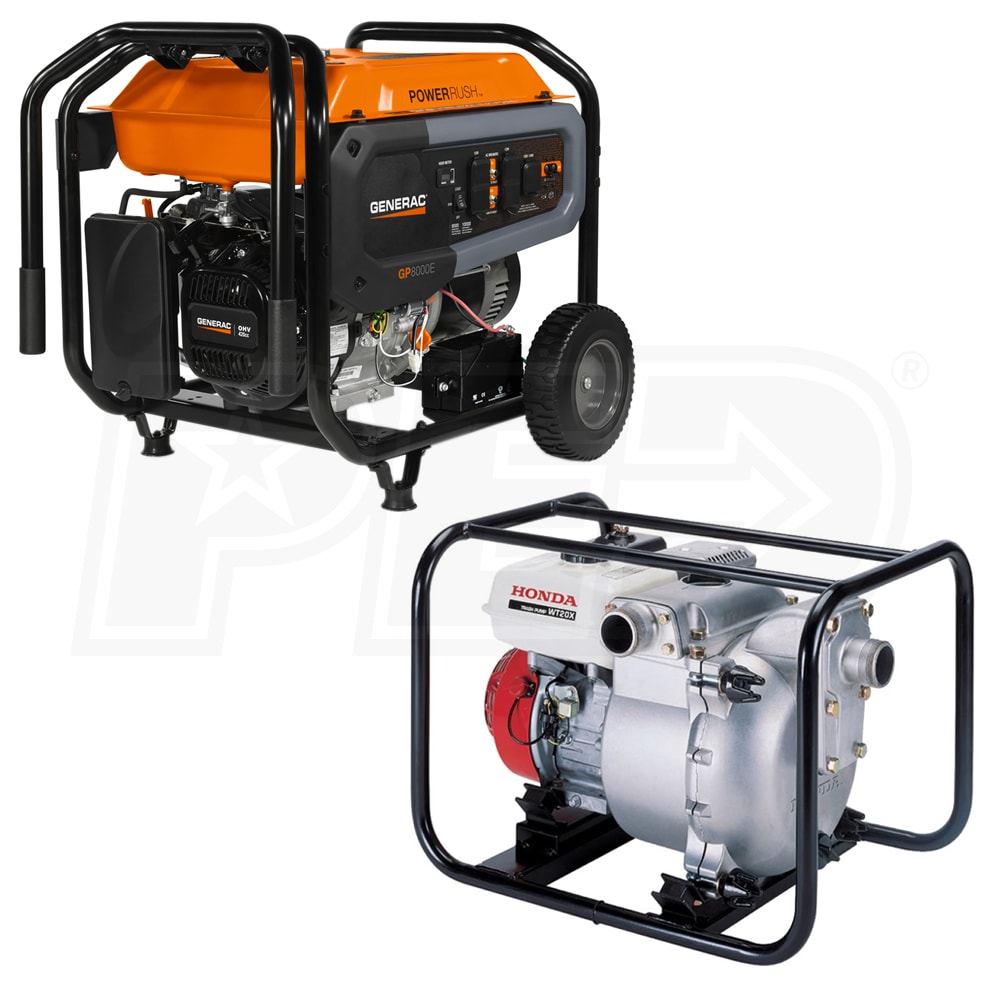

Generac 8000 Watt Electric Start Portable Generator (49-State) & Honda 187 GPM (2") Heavy Duty Trash Pump

Model:

7686-WT20-KIT

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Generac 8000 Watt Electric Start Portable Generator (49-State) & Honda 187 GPM (2
Generac 8000 Watt Electric Start Portable Generator (49-State) & Honda 187 GPM (2") Heavy Duty Trash Pump
Model: 7686-WT20-KIT
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Portable Electric Start Emergency Generator & 2" Trash Pump Package
  • Generac® GP8000E Electric Start Portable Emergency Generator
  • Energizes mission-critical appliances - except central A/C
  • PowerRush™ Advanced Technology*
  • Provides 30% + motor starting capacity
  • Electric Start w/ Recoil Backup
  • Start the generator with the press of a button (Battery Included)
  • Plug-in battery charger jack keeps battery charged and ready
  • 420cc Generac® 4-Stroke OHV Engine w/ Low Oil Shutoff
  • Designed for long life with safeguards in-place for peace of mind
  • 7.9-Gallon Fuel Tank w/ Fuel Gauge
  • Up to 11 hours of runtime @ 50% load
  • 30-Amp 120/240V (L14-30) Receptacle***
  • Allows for connection to a manual transfer switch (MTS)
  • Allows for connection to a convenience cord
  • Built-In Hour Meter & 1-1/4" Hardened Steel-Tube Cradle
  • Makes it easy to track run-time & maintenance intervals
  • Protects the generator during transportation & operation
  • Heavy-Duty, Never-Flat Wheels & Fold-Down Handle
  • Makes this generator easy to move over uneven terrain
  • Allows for easy, compact storage
  • *NOTE - Increases electrical current upon demand; above rated output
  • 3-Year Limited Residential & 1-Year Limited Commercial Warranty
  • Non-CARB Compliant - Not For Sale In CA
  • ***Note - Allows You To Get Maximum Power From Generator
  • Honda Heavy-Duty 2" Construction Trash Pump
  • Handles solids up to 13/16"
  • Commercial Grade 163cc Honda OHV GX160 4-Cycle Engine
  • Provides excellent torque & fuel efficiency
  • Protected By Honda Oil Alert® Warning System
  • Alerts you or shuts engine down if oil reaches an unsafe level
  • Helps to prevent engine seizure due to a low oil condition
  • Rigid-Mounted Cast Iron Pump Volute
  • Provides enhanced durability
  • Conical Impeller & Replaceable Stainless Steel Wear Plate
  • Provides improved priming, durability & extends pump life
  • Silicone-Carbide Seals
  • Abrasion-resistant design for extended wear
  • Quick-Release Clean-Out w/ Easy Access Port
  • Included Multi-tool for easy on-site servicing & cleaning
  • Rugged Full Frame & High Performance Mounts
  • Protects the pump/engine on all sides & reduces vibration
  • EPA Approved & CARB Compliant
  • 3-Year Residential & Commercial Warranty
  • Product Includes
    • (1) Honda WT20XK4 - 187 GPM (2") Heavy Duty Trash Pump (WT20)
    • (1) Generac GP8000E - 8000 Watt Electric Start Portable Generator (49-State) (7686)
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm, and Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Honda WT20XK4 - 187 GPM (2") Heavy Duty Trash Pump (WT20)
  • (1) Generac GP8000E - 8000 Watt Electric Start Portable Generator (49-State) (7686)
7686-WT20-KIT
specs product image PID-116241
Product Specs
Voltage
120/240 Single-Phase
Rated Watts
8000 Watts
Surge Watts
10000 Watts
Fuel Type
Gasoline
Grade Type
Emergency
Engine
Engine Brand
Generac
WT20XK4AC
General Information
Product Category
Water Pump
Pump
Gallons Per Minute
187 Gallons
Inlet Diameter
2 Inch
Outlet Diameter
2 Inch
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.8 inch
Handles Solids
Yes
Suction Head
26 Feet
Maximum PSI
42
Total Head Lift
98 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Continuous Operation
Yes
Fuel Tank Size
0.825 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Overview
Product Category
Water Pump
Weight
104 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
24.4 Inches
Product Width
18.1 Inches
Product Height
18.3 Inches
Accessories
Tool Kit
Yes
Strainer
Yes
Float Switch
No
Hose Couplings
No
Hose
Sold Separately
Hose Bands
No
Transport Handle
No
Wheel Kit
No
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
198 Pounds
CARB Compliant
No
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
28.8 Inches
Product Width
21.7 Inches
Product Height
26.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
8000 Watts
Surge Watts
10000 Watts
Fuel Type
Gasoline
Rated Amps
33 Amps
Portability Kit
Never Flat Wheels
Tank Size
7.9 Gallons
Run Time @ 50% Load
11 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Low THD
No
Engine
Engine Brand
Generac
Starting System
12-Volt Button Start w/ Recoil
CC
420 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
