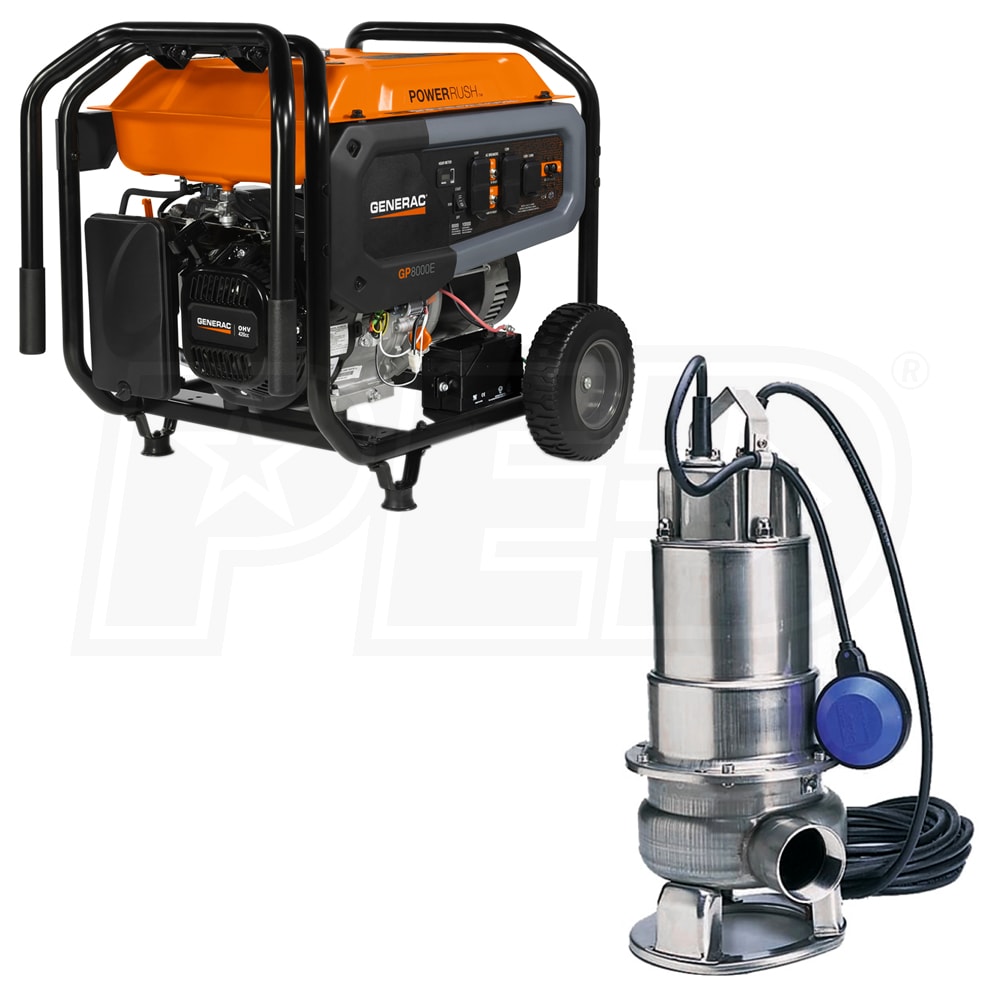

Generac 8000 Watt Electric Start Portable Generator (49-State) & Honda 110 GPM (2") Submersible Trash Pump w/ Float Switch

Model:

7686-WSP50-KIT

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Generac 8000 Watt Electric Start Portable Generator (49-State) & Honda 110 GPM (2
Generac 8000 Watt Electric Start Portable Generator (49-State) & Honda 110 GPM (2") Submersible Trash Pump w/ Float Switch
Model: 7686-WSP50-KIT
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Portable Electric Start Emergency Generator & 2" Submersible Trash Pump w/ Float Switch
  • Generac® GP8000E Electric Start Portable Emergency Generator
  • Energizes mission-critical appliances - except central A/C
  • PowerRush™ Advanced Technology*
  • Provides 30% + motor starting capacity
  • Electric Start w/ Recoil Backup
  • Start the generator with the press of a button (Battery Included)
  • Plug-in battery charger jack keeps battery charged and ready
  • 420cc Generac® 4-Stroke OHV Engine w/ Low Oil Shutoff
  • Designed for long life with safeguards in-place for peace of mind
  • 7.9-Gallon Fuel Tank w/ Fuel Gauge
  • Up to 11 hours of runtime @ 50% load
  • 30-Amp 120/240V (L14-30) Receptacle***
  • Allows for connection to a manual transfer switch (MTS)
  • Allows for connection to a convenience cord
  • Built-In Hour Meter & 1-1/4" Hardened Steel-Tube Cradle
  • Makes it easy to track run-time & maintenance intervals
  • Protects the generator during transportation & operation
  • Heavy-Duty, Never-Flat Wheels & Fold-Down Handle
  • Makes this generator easy to move over uneven terrain
  • Allows for easy, compact storage
  • *NOTE - Increases electrical current upon demand; above rated output
  • 3-Year Limited Residential & 1-Year Limited Commercial Warranty
  • Non-CARB Compliant - Not For Sale In CA
  • ***Note - Allows You To Get Maximum Power From Generator
  • Honda 2" Submersible Trash Pump w/ Float Switch
  • Easily handles leaves, debris, and solids up to 2"
  • 1/2-HP 8.3-Amp Motor (34-Amp Starting)
  • Continuous duty rated, capable of pumping 6600 GPH @ 0'
  • Stainless Steel Casing
  • Lightweight & durable design resists corrosion
  • Built-In Thermal Protection w/ Automatic Reset
  • Turns off the power supply in case of overload
  • Non-Mercury Float Switch
  • Provides reliable automatic operation
  • Single Channel Stainless Steel Impeller
  • Heavy duty design built to pass solids
  • Tandem Mechanical Carbon/Ceramic Seals
  • Extends the useful life of the pump
  • 25' Cord
  • Heavy duty design built to withstand the elements
  • 1-Year Residential & Commercial Warranty
  • Product Includes
    • (1) Generac GP8000E - 8000 Watt Electric Start Portable Generator (49-State) (7686)
    • (1) Honda WSP50AA - 110 GPM (2") Submersible Trash Pump w/ Float Switch (WSP50)
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm, and Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Generac GP8000E - 8000 Watt Electric Start Portable Generator (49-State) (7686)
  • (1) Honda WSP50AA - 110 GPM (2") Submersible Trash Pump w/ Float Switch (WSP50)
7686-WSP50-KIT
specs product image PID-116243
Product Specs
Voltage
120/240 Single-Phase
Rated Watts
8000 Watts
Surge Watts
10000 Watts
Grade Type
Emergency
Engine
Engine Brand
Generac
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
198 Pounds
CA (CARB) Compliant
No
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
28.8 Inches
Product Width
21.7 Inches
Product Height
26.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
8000 Watts
Surge Watts
10000 Watts
Fuel Type
Gasoline
Rated Amps
33 Amps
Portability Kit
Never Flat Wheels
Tank Size
7.9 Gallons
Run Time @ 50% Load
11 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Generac
Starting System
12-Volt Button Start w/ Recoil
CC
420 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
8.3
Power Cord Length
25 Feet
Pump
Gallons Per Minute
110 Gallons
Outlet Diameter
2 Inch
Mechanical Seal Material
Ceramic Carbon
Housing Material
Stainless Steel
Impeller Material
Stainless Steel
Solids Handling Size
2 inch
Handles Solids
Yes
Maximum PSI
14
Total Head Lift
32 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Shaft Seal
Ceramic Carbon
Horsepower
0.5 hp
Accessories
Float Switch
Yes
Overview
Product Category
Water Pump
Weight
36 Pounds
Consumer Warranty
1 Year
Product Width
9 Inches
Product Height
21.5 Inches
