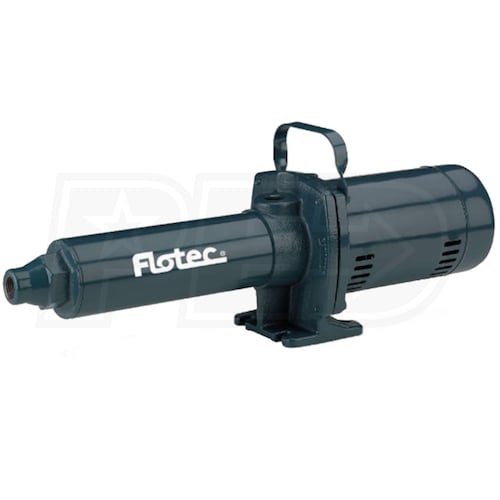

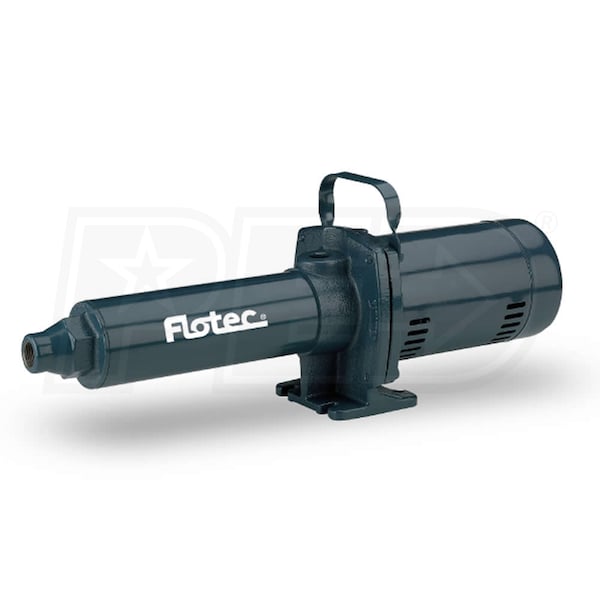

Flotec FP5732 - 1 HP Cast Iron Multi-Stage High Pressure Booster Pump (190 PSI)

Model:

FP5732-01

Write a Review
$438.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 2 In-Stock
Ships Friday, Apr 23rd
Shipping to60601
Shipping Details
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States

Flotec FP5732 - 1 HP Cast Iron Multi-Stage High Pressure Booster Pump (190 PSI)
Flotec FP5732 - 1 HP Cast Iron Multi-Stage High Pressure Booster Pump (190 PSI)
Model: FP5732-01
$438.00
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Inlet Size

3/4"

Style

GPM

13 Gallons

  • Cast Iron, Multi-Stage High Pressure Booster Pump
  • Boost your existing pressure by 50 to 130 PSI
  • Residential, commercial or agricultural high pressure washing
  • Strong Pump Performance
  • Superior "dead-head" resistance
  • Increasing water pressure from city mains or private water systems
  • Stainless Steel Motor Shaft
  • Includes heavy-duty ball bearings and on-board thermal overload protection
  • Preset at 230V, also allows for 115V
  • Rated for continuous duty
  • Heavy-Duty Cast Iron Pump Adapter and Discharge
  • 3/4" FNPT suction and discharge fittings
  • Maximum capacity: 13 GPM
  • Maximum pressure: 190 PSI
  • Maximum inlet pressure: 80 PSI
  • Maximum total pressure: 315 PSI
  • 1 Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

FP5732-01
Motor
Voltage
120/240 Volt
Running Amps
9.6 @230v / 19.2 @115v
Thermal Protection
Yes
Pump
Gallons Per Minute
13 Gallons
Inlet Diameter
3/4"
Outlet Diameter
3/4"
Housing Material
Cast Iron
Maximum PSI
190
Submersible
No
Engine
Continuous Operation
Yes
Shaft Seal
Stainless Steel
Horsepower
1 hp
Overview
Weight
48 Pounds
Consumer Warranty
1 Year
UPC
022315165779

Reviews

(6)
FloTec FP5732-01 Reviews & Ratings

Product Q&A

(1)
Product Questions Answered by Jim, the Water Pump Expert
Question
+
What type of cord or gauge do you recommend?
Lee
from Colorado
April 18, 2018
Answer
Since this pump is rated for dual-voltage (115V or 230V), it does require that you wire it to your specifications. Please note that it is pre-wired for 230V out of the factory. That information is available in the Pump Manual.
Was this answer helpful?
Yes
0
No
0
