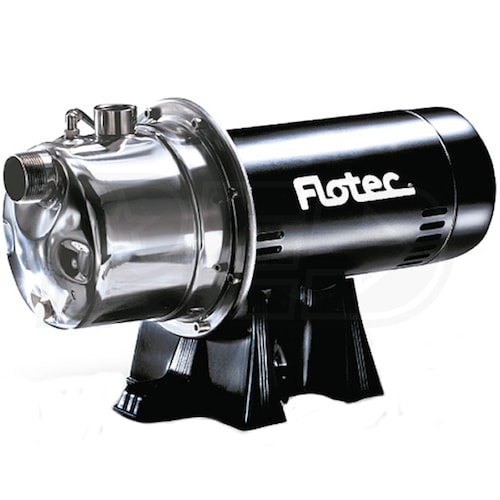

Flotec FP4832 - 17.5 GPM 1 HP Stainless Steel Shallow Well Jet Pump
Model: FP4832-08
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
1-1/4"
Style

GPM
17.5
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
17.5 Gallons
Features
Features
- Stainless Steel Shallow Well Jet Pumps
- Built-in 30/50 pressure switch
- 1-1/4" NPT suction and 1" NPT discharge pipe sizes
- Heavy-Duty Stainless Steel Construction
- For the highest corrosion-resistance
- Superior Performance
- At depths to water of 25' or less
- Heavy-Duty Dual-Voltage Motor
- Preset at 230-Volts
- Self-Priming After Pump Housing Is Initially Filled
- Check valve or foot valve required, sold separately
- 1 Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
9.6 @230v / 19.2 @115v
Pump
Gallons Per Minute
17.5 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Self Priming
Yes
Housing Material
Stainless Steel
Suction Head
25 Feet
Maximum PSI
81
Submersible
No
Engine
Horsepower
1 hp
Accessories
Pressure Switch
Yes
Overview
Weight
33.75 Pounds
Consumer Warranty
1 Year
UPC
022315160613
Inlet Size
1-1/4"
Style

GPM
17.5
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
17.5 Gallons
Features
Features
- Stainless Steel Shallow Well Jet Pumps
- Built-in 30/50 pressure switch
- 1-1/4" NPT suction and 1" NPT discharge pipe sizes
- Heavy-Duty Stainless Steel Construction
- For the highest corrosion-resistance
- Superior Performance
- At depths to water of 25' or less
- Heavy-Duty Dual-Voltage Motor
- Preset at 230-Volts
- Self-Priming After Pump Housing Is Initially Filled
- Check valve or foot valve required, sold separately
- 1 Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
9.6 @230v / 19.2 @115v
Pump
Gallons Per Minute
17.5 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Self Priming
Yes
Housing Material
Stainless Steel
Suction Head
25 Feet
Maximum PSI
81
Submersible
No
Engine
Horsepower
1 hp
Accessories
Pressure Switch
Yes
Overview
Weight
33.75 Pounds
Consumer Warranty
1 Year
UPC
022315160613
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Running Amps
9.6 @230v / 19.2 @115v
Pump
Gallons Per Minute
17.5 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Self Priming
Yes
Housing Material
Stainless Steel
Suction Head
25 Feet
Maximum PSI
81
Submersible
No
Engine
Horsepower
1 hp
Accessories
Pressure Switch
Yes
Overview
Weight
33.75 Pounds
Consumer Warranty
1 Year
UPC
022315160613
