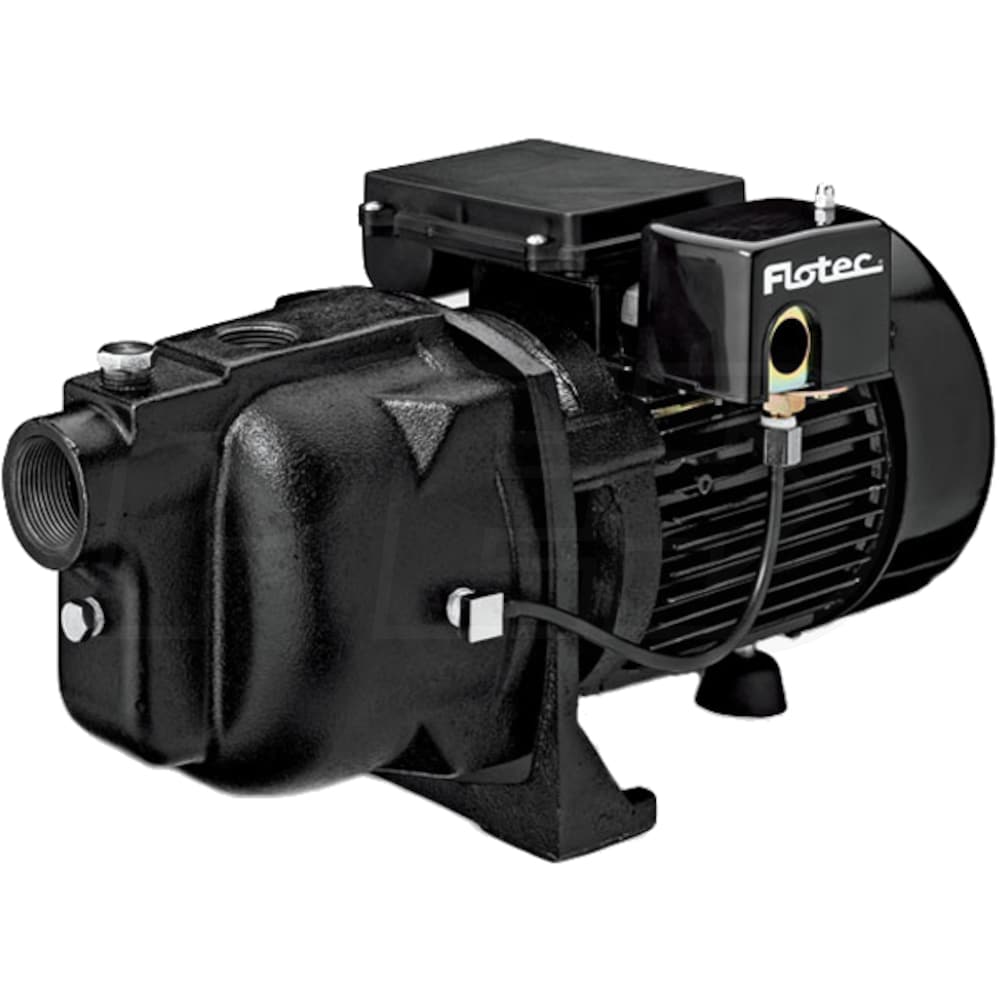

Flotec FP4150 - 21 GPM 1 HP Cast Iron Shallow Well Jet Pump
Model: FP4150
+
Share This Product
-
Product Description
-
21Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
1-1/4"
Style

GPM
21
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
21 Gallons
Features
Features
- Cast Iron Shallow Well Jet Pump
- Factory-installed 30/50 preset pressure switch included
- Superior Performance
- At depths to water of 25' or less
- 1-1/4" suction / 1" discharge
- Rugged Pump Housing
- Durable cast iron construction
- Heavy-Duty 115/230 Dual-Voltage Motor
- Preset at 230-Volts
- High-output performance
- For medium to large homes, cabins, or trailers
- 1 Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
6 @230v / 12 @115v
Pump
Gallons Per Minute
21 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Self Priming
Yes
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
70
Submersible
No
Engine
Horsepower
1 hp
Accessories
Pressure Switch
Yes
Overview
Weight
53 Pounds
Consumer Warranty
1 Year
UPC
022315361683
Inlet Size
1-1/4"
Style

GPM
21
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
21 Gallons
Features
Features
- Cast Iron Shallow Well Jet Pump
- Factory-installed 30/50 preset pressure switch included
- Superior Performance
- At depths to water of 25' or less
- 1-1/4" suction / 1" discharge
- Rugged Pump Housing
- Durable cast iron construction
- Heavy-Duty 115/230 Dual-Voltage Motor
- Preset at 230-Volts
- High-output performance
- For medium to large homes, cabins, or trailers
- 1 Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
6 @230v / 12 @115v
Pump
Gallons Per Minute
21 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Self Priming
Yes
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
70
Submersible
No
Engine
Horsepower
1 hp
Accessories
Pressure Switch
Yes
Overview
Weight
53 Pounds
Consumer Warranty
1 Year
UPC
022315361683
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Running Amps
6 @230v / 12 @115v
Pump
Gallons Per Minute
21 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Self Priming
Yes
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
70
Submersible
No
Engine
Horsepower
1 hp
Accessories
Pressure Switch
Yes
Overview
Weight
53 Pounds
Consumer Warranty
1 Year
UPC
022315361683
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
Will this pump work with a well that is more than 35 feet deep?
Richard
from Idaho
October 28, 2020
Answer
No, the Flotec FP4150 can only handle a maximum suction head of 25 feet. For a pump that can handle a suction head of more than 35 feet, please see our selection of Convertible Jet Pumps or Deep Well Submersible Pumps.
