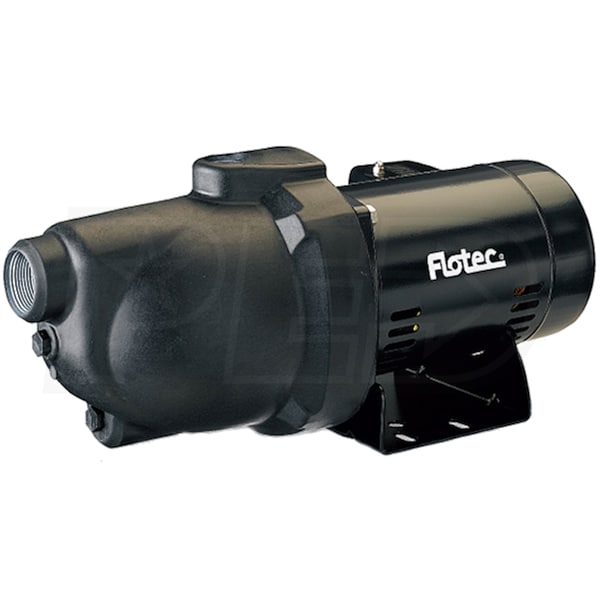

Flotec FP4022 - 12 GPM 3/4 HP Thermoplastic Shallow Well Jet Pump (115V/230V)
Model: FP4022-10
+
Share This Product
-
Product Description
-
66Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
1-1/4"
Style

GPM
12
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
12 Gallons
Features
Features
- Thermoplastic Shallow Well Jet Pump
- Ideal for residential applications
- Superior Performance
- At depths to water of 25' or less
- 1-1/4" Suction / 1" Discharge
- Fiberglass-Reinforced Thermoplastic Pump Housing
- For the highest corrosion-resistance
- 3/4 HP Heavy-Duty Dual-Voltage Motor
- Preset at 230-Volts
- Factory-Installed 30/50 Preset Pressure Switch
- Provides reliable operation
- Self-Priming After Pump Housing Is Initially Filled
- Check valve or foot valve required, sold separately
- 1 Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
6.1 @230v / 12.2 @115v
Pump
Gallons Per Minute
12 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Self Priming
Yes
Housing Material
Thermoplastic
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
78
GPH @ 0 feet
12
GPH @ 5 feet
10.3
GPH @ 10 feet
9.7
GPH @ 15 feet
8.2
GPH @ 20 feet
7.1
Submersible
No
Engine
Horsepower
0.75 hp
Accessories
Pressure Switch
Yes
Overview
Weight
26.9 Pounds
Consumer Warranty
1 Year
UPC
022315100589
Inlet Size
1-1/4"
Style

GPM
12
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
12 Gallons
Features
Features
- Thermoplastic Shallow Well Jet Pump
- Ideal for residential applications
- Superior Performance
- At depths to water of 25' or less
- 1-1/4" Suction / 1" Discharge
- Fiberglass-Reinforced Thermoplastic Pump Housing
- For the highest corrosion-resistance
- 3/4 HP Heavy-Duty Dual-Voltage Motor
- Preset at 230-Volts
- Factory-Installed 30/50 Preset Pressure Switch
- Provides reliable operation
- Self-Priming After Pump Housing Is Initially Filled
- Check valve or foot valve required, sold separately
- 1 Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
6.1 @230v / 12.2 @115v
Pump
Gallons Per Minute
12 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Self Priming
Yes
Housing Material
Thermoplastic
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
78
GPH @ 0 feet
12
GPH @ 5 feet
10.3
GPH @ 10 feet
9.7
GPH @ 15 feet
8.2
GPH @ 20 feet
7.1
Submersible
No
Engine
Horsepower
0.75 hp
Accessories
Pressure Switch
Yes
Overview
Weight
26.9 Pounds
Consumer Warranty
1 Year
UPC
022315100589
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Running Amps
6.1 @230v / 12.2 @115v
Pump
Gallons Per Minute
12 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Self Priming
Yes
Housing Material
Thermoplastic
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
78
GPH @ 0 feet
12
GPH @ 5 feet
10.3
GPH @ 10 feet
9.7
GPH @ 15 feet
8.2
GPH @ 20 feet
7.1
Submersible
No
Engine
Horsepower
0.75 hp
Accessories
Pressure Switch
Yes
Overview
Weight
26.9 Pounds
Consumer Warranty
1 Year
UPC
022315100589
Product Q&A
(2)
+−

Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
Are the input and output threads NPT or BSPT?
Willie
from California
October 02, 2018
Answer
All fittings (1-1/4" suction and 1" discharge) are female NPT.
Was this answer helpful?
Yes

1
No

0
+−
Does the FP4032 have the same diameter as the FP4022 for direct replacement without changing the plumping?
Edwrad L.
from Indiana
March 04, 2017
Answer
Yes, both the FP4022 and FP4032, utilize a 1-1/4" suction port and a 1" discharge port.
Was this answer helpful?
Yes

1
No

0
