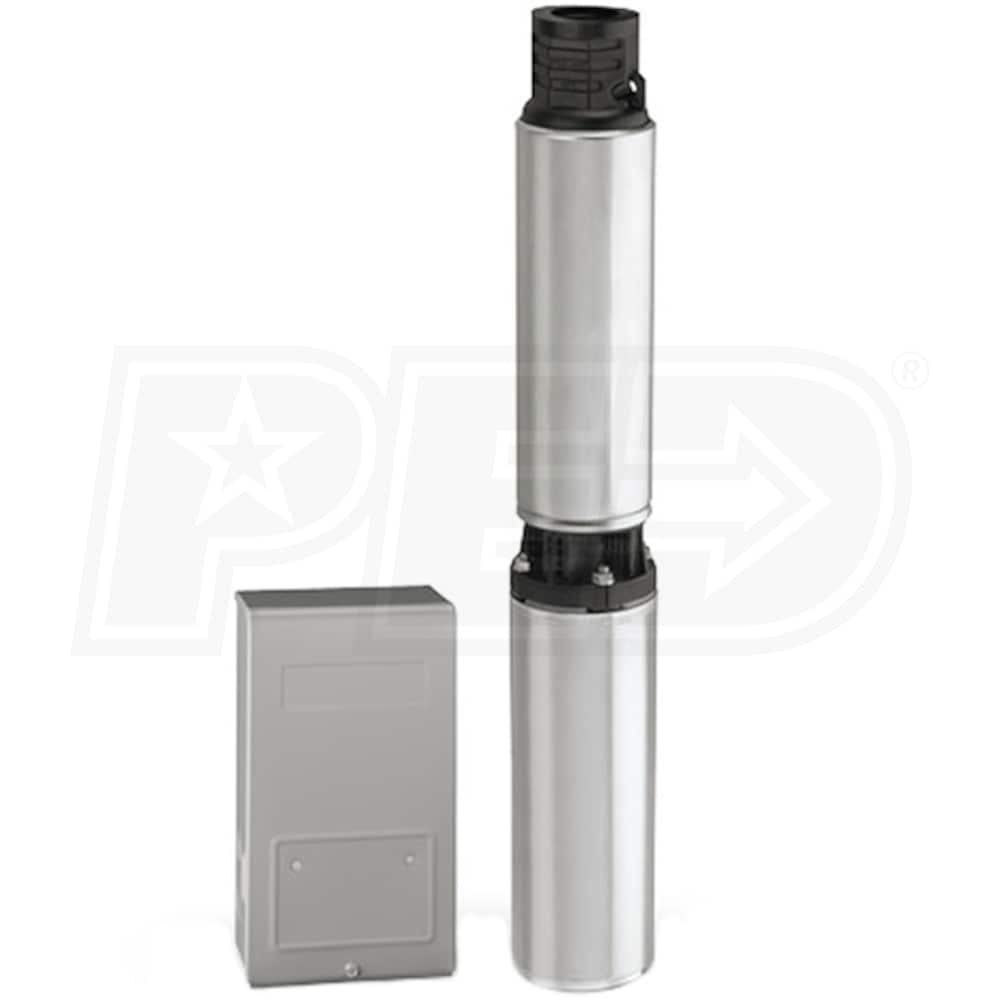

Flotec FP3232 - 10 GPM 1 HP Deep Well Submersible Pump (3-Wire 230V) w/ Control Box
Model: FP3232-12
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(3)
Write a Review
$509.00
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 3-5 Days
Shipping to60601
Shipping Details
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States

Share
  • Product Description
  • 3
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
N/A
Style
Deep Well
GPM
10
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
10 Gallons
Features
Features
  • Pumps up to 804 GPH @ 100’ Depth - (40 PSI)
  • 3-Wire, 4" Submersible Well Pump
  • 3 wires plus ground wire
  • 230-Volt power
  • Control box included
  • For Residential & Agricultural Water Systems
  • Provides optimum amount of water and pressure for general home and farm use
  • High Performance
  • Proven floating stack impeller design
  • For sand resistance and reduced sand locking
  • Durable Construction
  • Stainless steel pump and motor housing
  • Corrosion-resistant for long pump life
  • Designed For Wells 20’ - 300’ In Depth
  • Pumps up to 804 GPH @ 100’ Depth - (40 PSI)
  • Designed For 4" Wells Or Larger
  • 1¼” NPT discharge
  • 3 Year Limited Warranty
Specifications
Motor
Voltage
240 Volt
Wire
3-Wire
Pump
Gallons Per Minute
10 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Maximum PSI
170
Total Head Lift
300 Feet
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Weight
39 Pounds
Consumer Warranty
3 Years
Product Width
3.78 Inches
UPC
022315101968

Inlet Size
N/A
Style
Deep Well
GPM
10
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
10 Gallons
Features
Features
  • Pumps up to 804 GPH @ 100’ Depth - (40 PSI)
  • 3-Wire, 4" Submersible Well Pump
  • 3 wires plus ground wire
  • 230-Volt power
  • Control box included
  • For Residential & Agricultural Water Systems
  • Provides optimum amount of water and pressure for general home and farm use
  • High Performance
  • Proven floating stack impeller design
  • For sand resistance and reduced sand locking
  • Durable Construction
  • Stainless steel pump and motor housing
  • Corrosion-resistant for long pump life
  • Designed For Wells 20’ - 300’ In Depth
  • Pumps up to 804 GPH @ 100’ Depth - (40 PSI)
  • Designed For 4" Wells Or Larger
  • 1¼” NPT discharge
  • 3 Year Limited Warranty
Specifications
Motor
Voltage
240 Volt
Wire
3-Wire
Pump
Gallons Per Minute
10 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Maximum PSI
170
Total Head Lift
300 Feet
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Weight
39 Pounds
Consumer Warranty
3 Years
Product Width
3.78 Inches
UPC
022315101968
Product Specs
+
Specifications
Motor
Voltage
240 Volt
Wire
3-Wire
Pump
Gallons Per Minute
10 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Maximum PSI
170
Total Head Lift
300 Feet
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Weight
39 Pounds
Consumer Warranty
3 Years
Product Width
3.78 Inches
UPC
022315101968
Reviews
(3)
+
FloTec FP3232-12 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Water Pump Expert
icon-social-fb1
+
Does this pump have surge protection and lighting protection?
Vernon E.
from Texas
June 23, 2017
Answer
According to Flotec, YES it does Vernon!
