The Wayne wls75 - 38 gpm 3/4 hp cast iron lawn sprinkler pump is available for purchase today.

Read Wayne WLS75 reviews before checking out.


Get the best deal on your new Wayne WLS75.

No coupon code required.

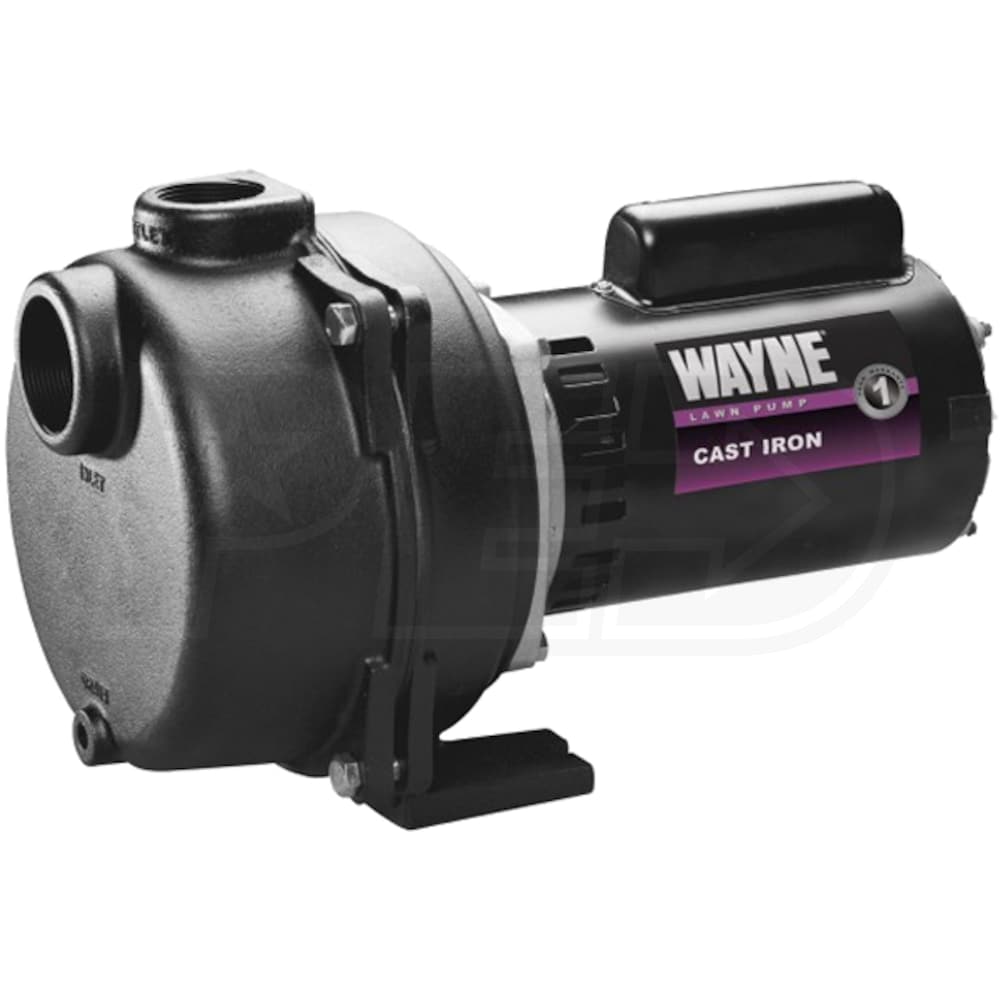

Wayne WLS75 - 38 GPM 3/4 HP Cast Iron Lawn Sprinkler Pump

Close
Wayne Water Pumps and AccessoriesModel: WLS75
(Based on expert analysis, manufacturer ratings and customer reviews)
4.0 out of 54.0 out of 54.0 out of 54.0 out of 54.0 out of 5
3 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
In-Stock In-Stock
Ships Tuesday, Dec 6th

Estimate Arrival
$239.00

StoreShippingPriceShop

In-Stock
Free Shipping
$239.00
No Sales Tax*
(Except IL)
Buy

$239.00
No Sales Tax*
(Except IL)
Visit Site

$239.00
(as of 06:12 CST - Details)
Sales Tax in 26 states
Visit Site

$239.00
Sales Tax Extra
Visit Site

$279.95
Sales Tax Extra
Visit Site
  • Features
  • Specs
  • 1
    Q&A
  • 3
    Reviews
  • Articles
  • Shipping
  • Accessories

Inlet Size
2"
Style
Sprinkler Pumps
GPM
38
Gallons
3/4 HP Lawn Sprinkling Pump

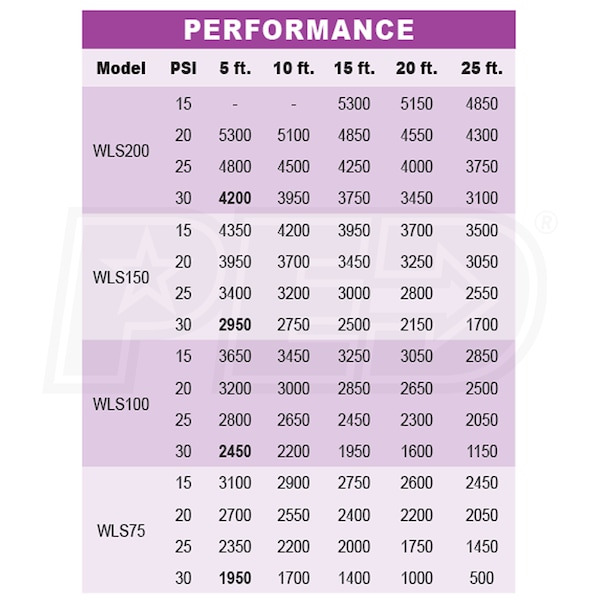

Pumps up to 2320 GPH @ 5' (30 PSI)

Durable Cast Iron Volute
Built for years of reliable service

High Efficiency Dual Voltage Motor (120/240V)
Factory wired for 240V installation
Easily change to 120V to suit your application

Operates An Underground Sprinkling System
Uses a high volume of water at low pressure

2" NPT Suction with 1-1/2" NPT Discharge


Need Help? Ask Our Water Pump Experts.
Motor
Voltage
120/240-Volt
Engine
Continuous Operation
Yes
HP
0.75 hp
Pump
Gallons Per Minute
38 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Housing Drain
Yes
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
30
Overview
Weight
60 Pounds
Product Length
20.00 Inches
Product Width
10.00 Inches
Product Height
10.00 Inches
Consumer Warranty
1 Year
UPC
040066204820
Model
WLS75
Download Documents
Need Help? Ask Our Water Pump Experts.
View Accessories For This Product.
Read Reviews
How-To Library

*Ask Jim about the Wayne WLS75. Sorry, no repair questions:


*Name:


*State:


*Email:


 Receive Weekly How-To Tips & Specials


*Required Field Submit
  1 Question
Q: On the Wayne WLS75 3/4 HP pump, is the intake OD 2 inches or is the Inside Diameter 2 inches. Also is it threaded? On the outflow, is the 1 and 1/2 inch OD or the inside diameter? And is it threaded? I am trying to replace a 3/4 HP pump which draws water about 6 feet up from lake for an irrigation system I have for my lawn.
Thanks, anything else you may wish to tell me that may help on replacing my current water pump would be appreciated.

by Bruce from Virginia on July 01, 2016

A: All fitting on this and other sprinkler pumps that we offer, are NPT female threaded. As long as you are sizing the pump correctly for your application, you should be fine. That said, if you can provide the following information, I'll be happy to assist you further.

Total head (suction & discharge lift)

Total pumping distance from the water source to the pump and from the pump to the furthest sprinkler head

Piping diameter on your suction and discharge (if already laid)

Total GPM & PSI requirements

by Jim, Product Expert
Wayne WLS75 Reviews & Ratings
Overall Rating
Features
3/5
Quality
5/5
Performance
5/5
Value
4/5
Overall
4.0 out of 54.0 out of 54.0 out of 54.0 out of 54.0 out of 5
Pros
Reliable (1)
Light Weight (1)
Quiet (1)
Cons
None to display.
67% of respondents would recommend this product to a friend
3 Reviews  Sort by

John D.
Columbus, IN
Purchased from Water Pumps Direct
Purchased 5/30/16
Most Helpful Positive Review
REVIEWED
JUN.
21
2016
5 out of 55 out of 55 out of 55 out of 55 out of 5
Perfect Fit
Plugged in and continued where the last one left off.
John Recommends This Wayne Product
Was this review helpful?
00
Duncan C.
Purchased from Water Pumps Direct
Purchased 7/7/13
REVIEWED
AUG.
08
2013
5 out of 55 out of 55 out of 55 out of 55 out of 5
Good Service After The Sale
Our pump arrived with badly damaged packaging but when I got hold of the vendor there was no problem in getting a new one sent and the damaged one sent back to the manufacturer.

Priming is not as easy as the instructions make it out to be, at least for our case. We are pumping out of a creek about 6 feet below the pump and no matter how many times we primed through the T connection (6 feet above the pump) it would lose prime. We simply jiggled the intake end of the pipe up and down in the... more
Pros: Quiet, Light Weight, Reliable
Duncan Recommends This Wayne Product
Was this review helpful?
42
Kim H.
Sebring, IL
Purchased from Water Pumps Direct
Purchased 9/22/15
Total Reviews
2 Reviews
REVIEWED
OCT.
13
2015
2 out of 52 out of 52 out of 52 out of 52 out of 5
To Small
Had to get a 1-1/5 HP to work the sprinkler heads
Kim Does Not Recommend This Product
Jim, the Water Pump Expert
Product Expert
Kim,
Sorry that the pump was undersized for your application. All of our pumps have their performance information on the spec tab of the the product page. And for applications that require a lift of 10'+, please remember to look at the higher HP pumps' performance to see if may be a better fit for you.

Please feel free to call us, we're always here to help.
more
Manufacturer Response
Brand Rep
Kim,
Sorry to hear about the issues you experienced in regards to sizing information. As Jim has stated above, all of our sizing information can be found on the spec tab of the product page. I'd love to help you out with any questions/concerns you may have, so please feel free to contact us at cs@waynepumps.com.

Thanks and have a wonderful day!
more
Was this review helpful?
01
