The Lancaster Pump 3lpw10007-2 - 1 hp 22 gpm deep well submersible pump (3-wire 230v) w/ cb is available for purchase today.

Read Lancaster Pump 2-3LPW10007-2 reviews before checking out.


Get the best deal on your new Lancaster Pump 2-3LPW10007-2.

No coupon code required.

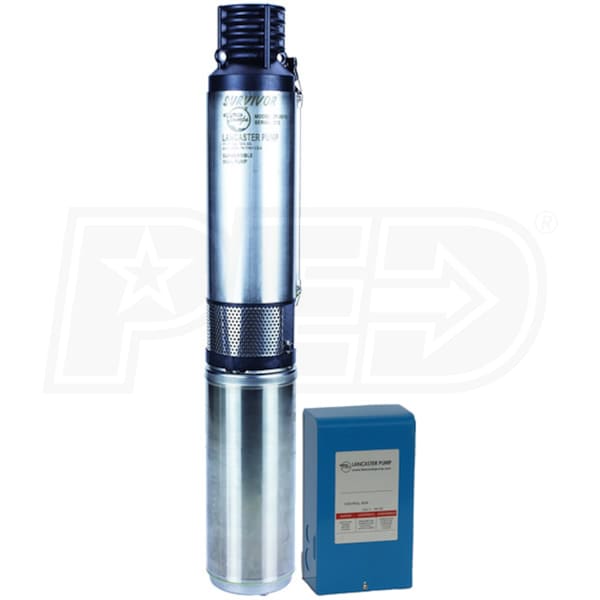

Lancaster Pump 3LPW10007-2 - 1 HP 22 GPM Deep Well Submersible Pump (3-Wire 230V) w/ CB

Close
Lancaster Pump Water Pumps and AccessoriesModel: 2-3LPW10007-2
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
Ships in 2-5 Business Days

Factory items ship direct from the manufacturer. Shipping times vary.
$632.48

StoreShippingPriceShop

Free Shipping$632.48
No Sales Tax*
(Except IL)
Buy

$632.48
No Sales Tax*
(Except IL)
Visit Site
  • Features
  • Specs
  • Q&A
  • Reviews
  • Articles
  • Shipping
  • Accessories

Outlet Size
1-1/4"
Style
Deep Well
GPM
22
Gallons
SURVIVOR W-Series 22 GPM 4" Sub. Well Pump (3-Wire 230V)
For 4" I.D. or + Wells (<220'); 3-Wire Starting - Control Box Included

1 HP Lancaster HYDRO-FORCE Encapsulated Sub. Motor
Capacitor-start induction run (CSIR) design; continuous duty rated

Stainless Steel Motor Casing & SS Splined Hex Shaft End
Hermetically sealed, permanently lubricated, for greater heat exchange

Built-In Lighting Arrestors & Automatic Reset Overload
Provides surge and overhead protection for increased protection

1.25" Glass-filled Noryl« Discharge Head & Motor Support
Minimizes corrosion, Field replaceable check valve & molded handles

Balanced Teflon« Impregnated Thermoplastic Impellers
Reduces overall friction to maximize water flow

Fully-Enclosed Thermoplastic Diffusers & Stage Plates w/ SS Wear Surfaces
Each stage has separate comp. thrust washer for added protection

Heavy wall, High Quality SS Pump Casing & SS Intake Screen
Sized inside for perfect stage alignment; wouldn't snap off during install

1 HP HYDRO-FORCE Quick-Disconnect Control Box (230V)
Includes 230V relay, start capacitor & 2 ground/cable terminals
NEMR 3R Outdoor rated, painted steel enclosure, QD components

3-Year Limited Warranty


Need Help? Ask Our Water Pump Experts.
Motor
Voltage
240-Volt
Running Amps
8.4
Wire
3-Wire
Engine
Continuous Operation
Yes
HP
1 hp
Pump
Gallons Per Minute
22 Gallons
Outlet Diameter
1-1/4"
Pump Head Material
Thermoplastic
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
220 Feet
Maximum PSI
65
Accessories
Control Box
Yes
Overview
Made in USA
Yes
Assembly Required
Yes
Weight
31 Pounds
Product Length
26.65 Inches
Product Width
3.81 Inches
Consumer Warranty
3 Years
Model
2-3LPW10007-2
